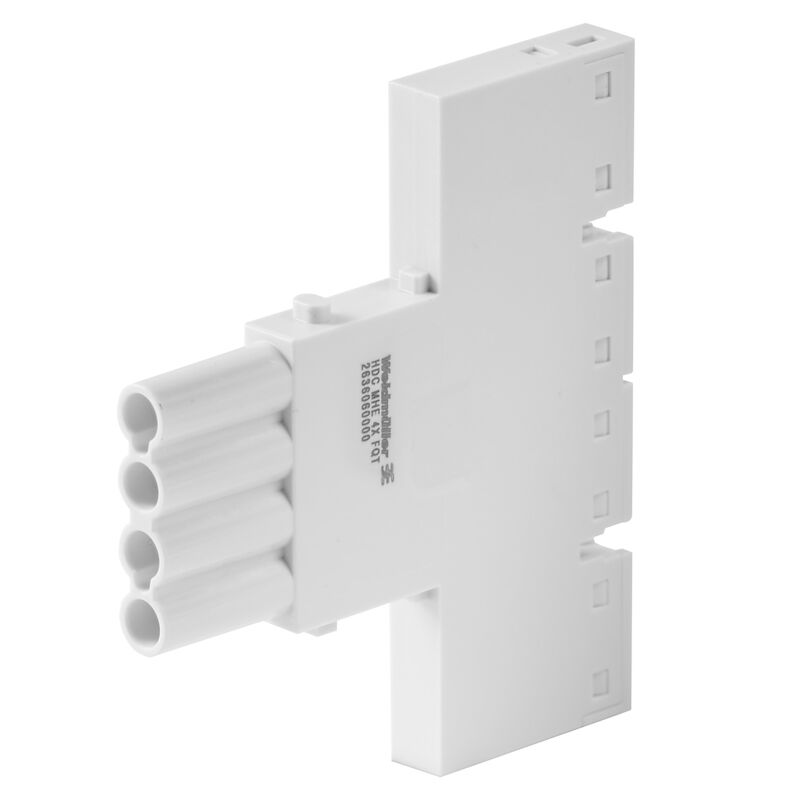

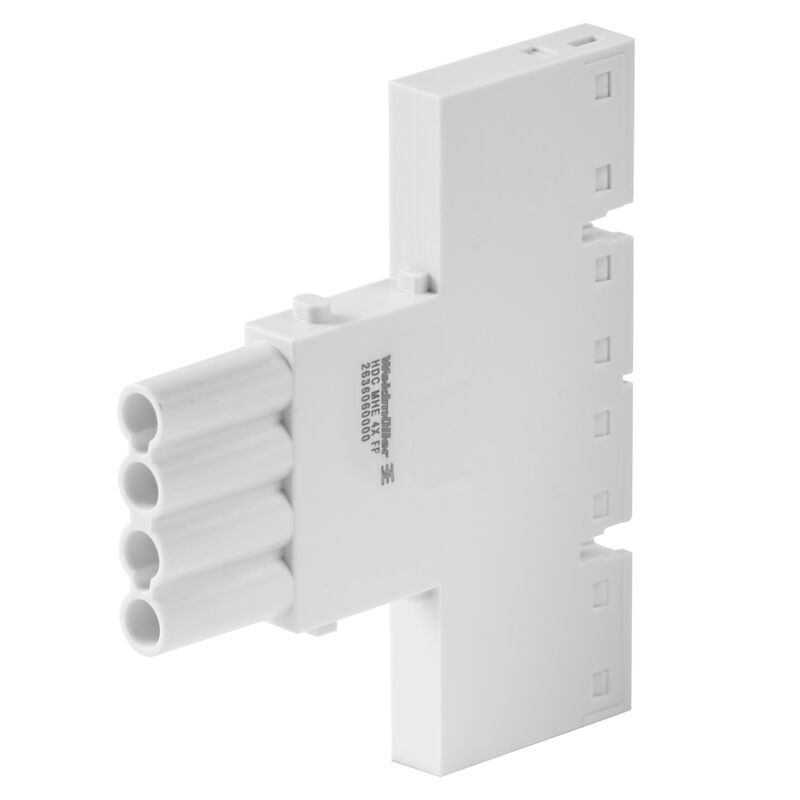

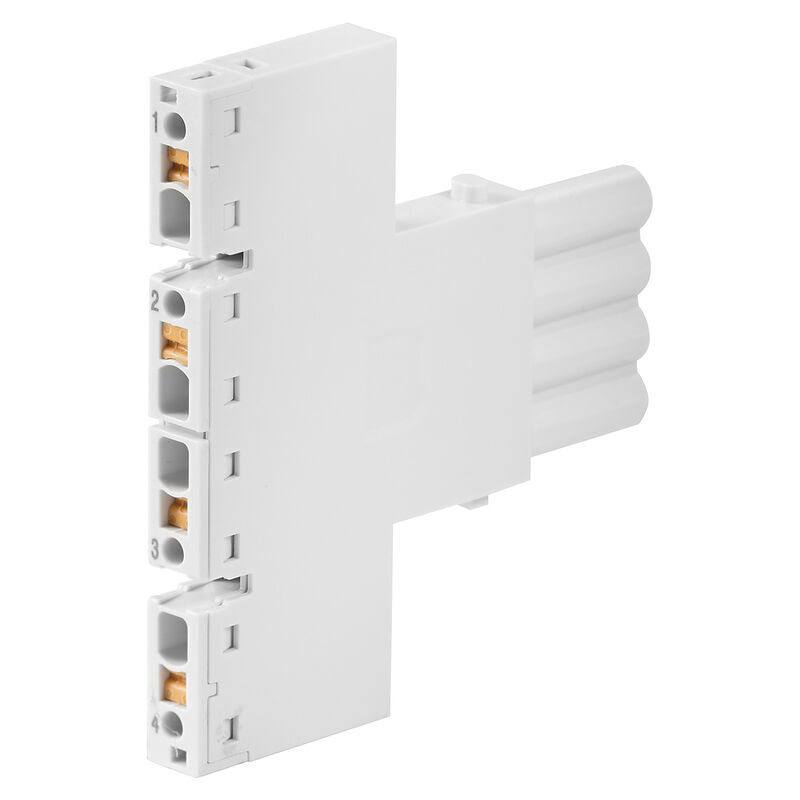

Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5

Item No. 2636060000
Download data sheet Mühendislik desteği Ürün İndirmleri
Příslušenství 12 Je příslušenstvím 12 Protikusy 3 Je protikusem 3 Příbuzné výrobky 115
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Данные соединений защ. заземления (PE) Version Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E92202

General ordering data

Verze
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
Order No.
2636060000
Type
HDC MHE 4X FP
GTIN (EAN)
4050118692808
Qty.
1 adet

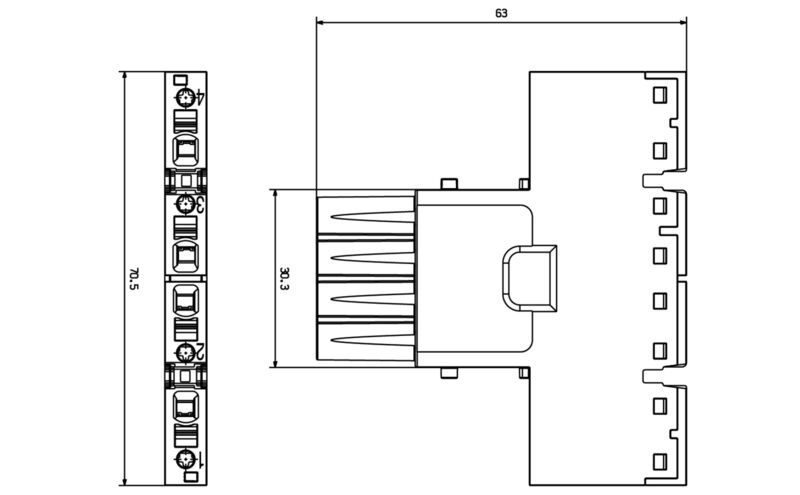

Dimensions and weights

Hloubka
70,5 mm
Depth (inches)
2,776 inch
Height
63 mm
Height (inches)
2,48 inch
Width
7,15 mm
Width (inches)
0,281 inch
Net weight
23,76 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
9ed66ce7-2fe8-4987-bb46-06cab3f02292

General data

Basic material
Polycarbonate, glass fibre reinforced
Insulation resistance
1012 Ω
Number of poles
4
Number of potentials
4
Plugging cycles
≥ 500
Pollution severity
3

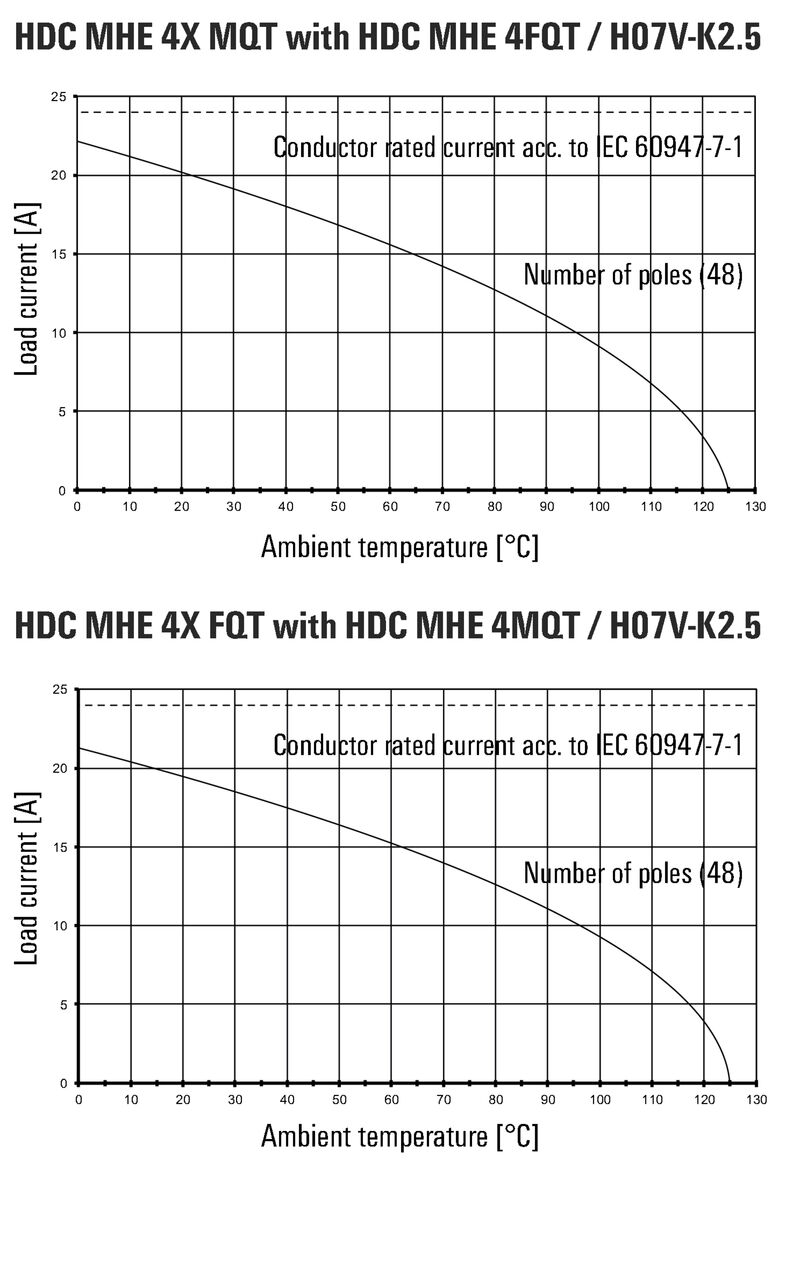

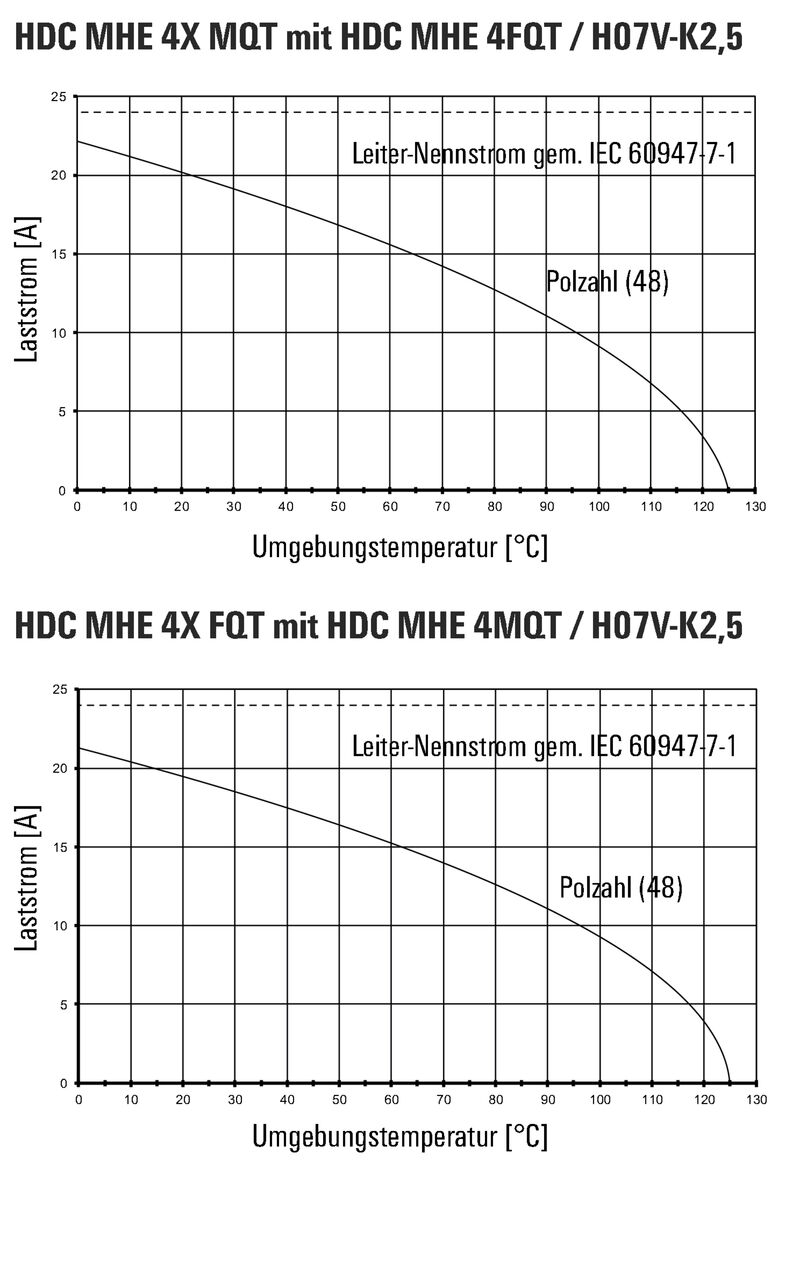

Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
4 kV
Rated voltage (DIN EN 61984)
250 V
Rated voltage according to UL/CSA
600 V
Required plug-in slots
0.5
Series
ModuPlug
Surge voltage category
III
Type
Female
UL 94 flammability rating
V-0

Данные соединений защ. заземления (PE)

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Stripping length, rated connection
10 mm
Type of connection
PUSH IN with actuator
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20

Important note

Product information
Only to be used in combination with mounting brackets (2716790000 / 2716800000) of RockStar wall mounting housings IP66.


Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
