Bu ürün artık mevcut değil.

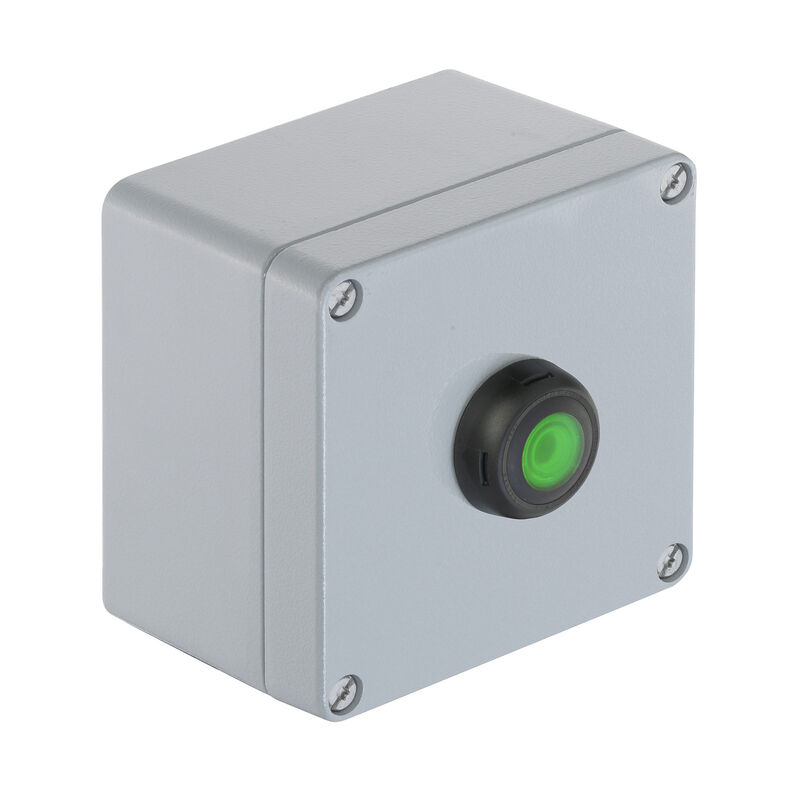

Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON K41 EX Aluminium AlSi12, Illuminated pushbutton - green, 2 NO contacts, -55 °C…55 °C, IP54, IP66

Produkt ID 1537500000
Download datablad Product Downloads Engineering Support
Aksesuarlar 1
Approvals Allmänna beställningsdata Dimensions and weights Temperatures Conformité environnementale du produit Certificate numbers enclosure General information Material data General data Housing Standard features Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)

Allmänna beställningsdata

Version
Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON K41 EX Aluminium AlSi12, Illuminated pushbutton - green, 2 NO contacts, -55 °C…55 °C, IP54, IP66
Order No.
1537500000
Type
KLIPPON CS K41-1
GTIN (EAN)
4050118341928
Qty.
1 adet
Delivery status
Discontinued
Available until
31.08.2024

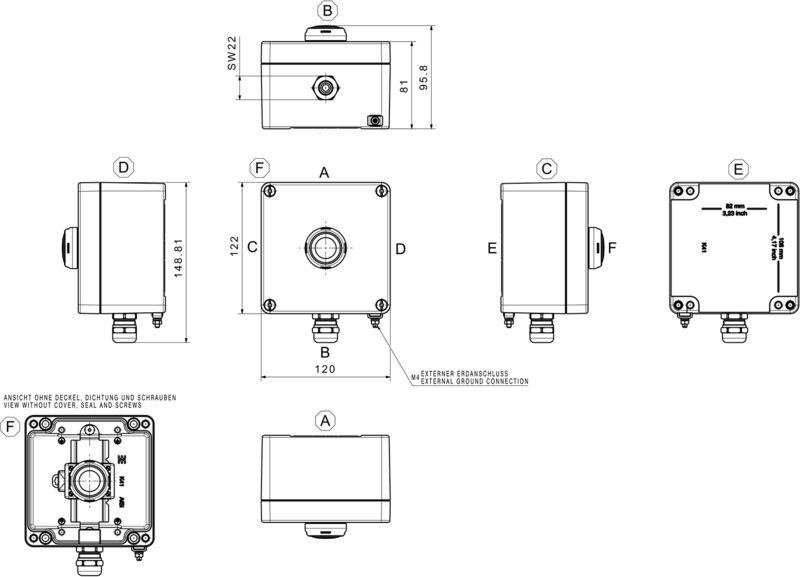

Dimensions and weights

Depth
81 mm
Depth (inches)
3,189 inch
Depth with add-on components
96 mm
Height
122 mm
Height (inches)
4,803 inch
Width
120 mm
Width (inches)
4,724 inch
Net weight
962 g

Temperatures

Ambient temperature
-55 °C…55 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6bI, 6c
REACH SVHC
Lead 7439-92-1
SCIP
d75c8142-044b-4eeb-8182-dc036aa6a21e

Certificate numbers enclosure

Certificate No. (ATEX)
TUEV14ATEX7606X
Certificate No. (IECEX)
IECEXITA14.0013X
Certificate no. Terminal Box (ATEX)
TÜV 14 ATEX 7606 X
Certificate no. Terminal Box (IECEx)
IECEx ITA 14.0013X
Certificate no. Terminal Box (INMETRO)
LMP 21.0019X

General information

1 Position in enclosure
Illuminated pushbutton - green
Contact design
2 NO contacts
Operating voltage, max.
250 V
Operating current at 40°C ambient temperature, max.
1.5 mm² - T6 10 A
1.5 mm² - T5 16 A
2.5 mm² - T6 16 A
Operating current at 55°C ambient temperature, max.
1.5 mm² - T4 16 A
1.5 mm² - T5 10 A
2.5 mm² - T5 16 A
Actuators
Pushbutton
Actuator colour
green
Drill holes side B
1 x M20
Lid attachment
Torx®-20 slothead screws
Seal material of operating and display elements
EPDM
Enclosure seal material
Silicone (VMQ)
Torque for lid screws
2,5 Nm
Earth stud torque
2,5 Nm
External earth
M4 earthing studs, stainless steel
Internal earth
Earth terminal
Marking
II 2 G Ex d e IIC T* Gb
II 2 D Ex tb IIIC T*°C Db
Cable gland clamping area, max.
12 mm
Cable gland clamping area, min.
3 mm
Wire connection cross section, finely stranded, max.
2,5 mm²
Illuminated button actuator colour
green
Type of mounting
Wall mounting
Surface finish
Powder-coated
Impact resistance
4 joules in acc. with IEC60079-0
Teplotní třída
T4
T5
T6
Werkstoff
Aluminium AlSi12

Material data

Basic material
Aluminium AlSi12
Surface finish
Powder-coated

General data

Colour
Silver grey
Colour chart (similar)
RAL 7001
Protection degree
IP54
IP66

Housing

Basic material
Aluminium AlSi12
Drill holes side B
1 x M20

Standard features

Version
Ex-approved housing solutions with control and display elements

Classifications

ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
