KLIPPON K52 EX
Podobné ilustraci

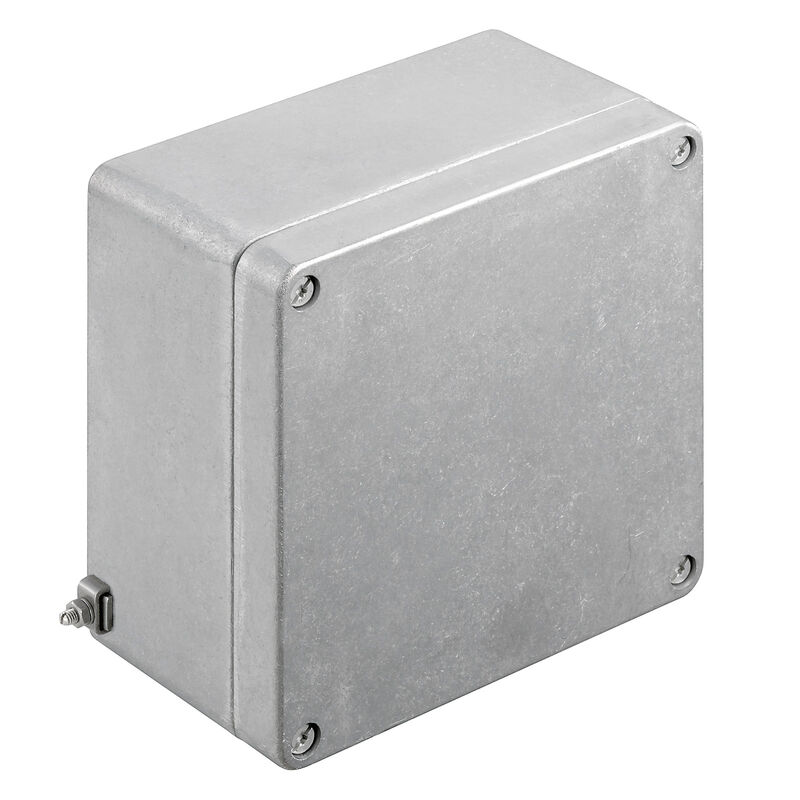

KLIPPON K52 EX
Rozměrový výkres

KLIPPON K52 EX

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 160 mm, Depth: 91 mm, Basic material: Aluminium AlSi12, untreated, silver

Produkt ID 9526950000
Download datablad Engineering Support Product Downloads
Tilbehør 6 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly vertical assembly Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a6deaf49-74c9-4c46-950e-b505cc20e574/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Verze
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 160 mm, Depth: 91 mm, Basic material: Aluminium AlSi12, untreated, silver
Číslo objednávky
9526950000
Typ
KLIPPON K52 EX
GTIN (EAN)
4008190338862
Množství
1 Styk

Dimensions and weights

Hloubka
91 mm
Depth (inches)
3,583 inch
Výška
160 mm
Height (inches)
6,299 inch
Šířka
160 mm
Width (inches)
6,299 inch
Rozměr při montáži – výška
110 mm
Larghezza di fissaggio
140 mm
Nettó tömeg
1 699 g

Temperatures

Provozní teplota
-60 °C...135 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
8
M16
5
M20
3
M25
2
M32
1

Cable glands, right

M12
8
M16
5
M20
3
M25
2
M32
1

Cable glands, top/bottom

M12
14
M16
8
M20
5
M25
3
M32
2
M40
1

Certificate numbers enclosure

Approval conditions
DNV
GL
RMRS
ATEX
IECEX
UL AEx Class Div.
CCC
INMETRO
Attestation of Conformatiy No. (AoC)
DE PS2410 160308 001ISS03
Certificat Nº (ATEX)
IBEXU12ATEX1145X
Certificate no. empty enclosure (ATEX)
IBExU12ATEX1144 U
Certificate no. empty enclosure (IECEx)
IECEx IBE 13.0001U
Certificate no. Terminal Box (ATEX)
IBExU12ATEX1145 X
Certifikat nr. (IECEX)
IECEXIBE13.0002X
Certifikat-nr. för plintbox (IECEx)
IECEx IBE 13.0002X
Numero del certificato custodia vuota (INMETRO)
LMP 23.0526U
Núm. de declaración de conformidad (DoC LVD)
DE PS2410 160412 001ISS03
Номер сертификата соединительной коробки (INMETRO)
LMP 23.0527X
인증 번호(DNV)
TAE00002SM

General information

Access opening: height
151 mm
Access opening: width
151 mm
Areas of use
Explosionsfarliga områden
Processindustri
Transportväsende
Förpackningsindustri
Fartygsbyggnad
Maskintillverkning
Hamnanläggningar
Basic material
Aluminium AlSi12
Enclosure attachment
Holes 6 mm
Flange plate
No
Impact resistance
7 J ATEX version
Installation advice
Lid screws included
Integral fixing
Threaded holes M5
Lid
Yes
Lid attachment
M6 torx stainless steel screws with slot
Material thickness of cover
4 mm
Material thickness of enclosure
4,5 mm
Number of lid screws
4
Operating temperature, max.
135 °C
Operating temperature, min.
-60 °C
Protection degree
IP66
IP67
Seal material
Silicone
Standards
IEC 60079-0
IEC 60079-7
IEC 60079-31
EN 45545-2:2013
Surface finish
untreated
Torque for lid screws
2,5 Nm

horizontal assembly

WDU 10 / ZDU 10
1x8
WDU 16 / ZDU 16
1x6
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x16
WDU 4 / ZDU 4
1x13
WDU 6 / ZDU 6
1x10

vertical assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5
*
WDU 4 / ZDU 4
*

Classifications

ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
