UR20-16AUX-GND-O
Produktbild
UR20-16AUX-GND-O

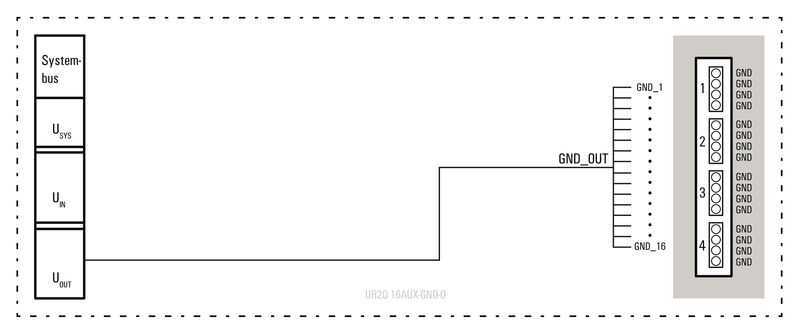

Blockschaltbild
UR20-16AUX-GND-O
Anschlussbild

UR20-16AUX-GND-O

Remote-IO-Modul, IP20, Potentialverteiler

Art.-Nr. 1334810000
Im Konfigurator öffnen
Datenblatt herunterladen Engineering Support Produkt Downloads
Zubehör 12 Ersatzteile 3 Verwandte Artikel 6
Zulassungen Allgemeine Bestelldaten Abmessungen und Gewichte Temperaturen Umweltanforderungen Anschlussdaten General data Versorgung Rendszer adatok Klassifikationen Ausschreibungstexte

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Konform
UL File Number Search
[UL Webseite](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

Allgemeine Bestelldaten

Version
Remote-IO-Modul, IP20, Potentialverteiler
Order No.
1334810000
Type
UR20-16AUX-GND-O
GTIN (EAN)
4050118138207
Qty.
1 Stück
Verpackung
Karton

Abmessungen und Gewichte

Depth
76 mm
Tiefe (inch)
2,992 inch
Height
120 mm
Höhe (inch)
4,724 inch
Width
11,5 mm
Breite (inch)
0,453 inch
Mounting dimension - height
128 mm
Nettogewicht
84 g

Temperaturen

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Umweltanforderungen

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Produktspezifischer CO2-Fußabdruck
  • Von der Wiege bis zum Werkstor:
    2,763 kg CO2 eq.

Anschlussdaten

Number
16
Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (hauteur 0 m) à 700 hPa (hauteur 3 000 m) selon DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g über 11 ms, halbe Sinuswelle, gem. IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8,4 Hz: 3,5 mm Amplitude gem. IEC 60068-2-6
8,4 Hz ≤ f ≤ 150 Hz: 1 g Beschleunigung gem. IEC 60068-2-6

Versorgung

Supply voltage
24 V DC +20 %/ -15 %
aus Eingangs- oder Ausgangsstrompfad / FE

Rendszer adatok

Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC między ścieżkami prądowymi
Interface
u-remote Systembus
Module type
Hilfsmodul
Transmission speed backplane bus, max.
48 MBit/s

Klassifikationen

ETIM 8.0
EC001600
ETIM 9.0
EC001600
ETIM 10.0
EC001600
ECLASS 14.0
27-24-26-10
ECLASS 15.0
27-24-26-10

Ausschreibungstexte

Long specification
AUX-GND-O 16-poliges Potentialverteilungsmodul 0V für Ausgangsstrompfad Versorgungsspannung: 24 V DC +25 %/–15 % Gewicht: 84 g Marke: Weidmüller Typ: UR20-GND-O
