MIBRIDGE ADAPTER B, 11 POLE IPC FLT

MIBRIDGE ADAPTER B, 11 POLE IPC FLT

Item No. 8000168695
Download data sheet Product Downloads
Related products 10
General ordering data Dimensions and weights Temperatures Rated data UL Connection data Connection data Ratings data Insulation coordination (EN50178) Classifications

General ordering data

Order No.
8000168695
Type
MIBRIDGE ADAPTER B, 11 POLE IPC FLT

Dimensions and weights

Depth
35.3 mm
Depth (inches)
1.39 inch
Height
106 mm
Height (inches)
4.173 inch
Width
30.6 mm
Width (inches)
1.205 inch

Temperatures

Operating temperature
-20...50 °C

Rated data UL

Operating temperature UL, max.
50 °C
Operating temperature UL, min.
-20 °C
Storage temperature UL, max.
70 °C
Storage temperature UL, min.
-20 °C
Rated current Imax
20 A
Rated voltage UN
250 V

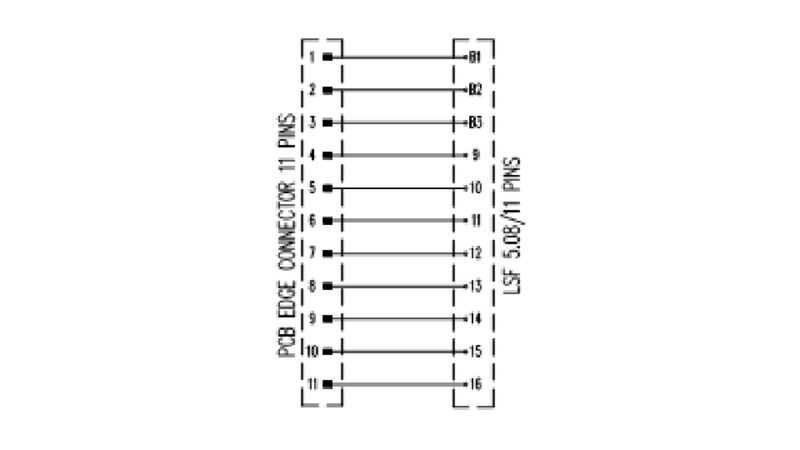

Connection data

Connection (field side)
IPC 621 11 pole connector
Number of poles (control side)
11-pole

Connection data

Connection (field side)
IPC 621 11 pole connector
Connection to PLC
New PLC terminal block or hardwired

Ratings data

Operating voltage
250 V
Max. current per channel
6 A
Total operating current
20 A

Insulation coordination (EN50178)

Rated insulation voltage
300 V
Surge voltage category
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
2.5 kV
Insulation test voltage AC
1.5 kV
Storage temperature, min.
-20 °C
Storage temperature, max.
70 °C

Classifications

ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
ECLASS 9.0
27-33-02-92
ECLASS 9.1
27-24-22-92
ECLASS 10.0
27-33-02-92
ECLASS 11.0
27-33-02-92
ECLASS 12.0
27-33-02-92
ECLASS 13.0
27-33-02-92
ECLASS 14.0
27-33-02-92
ECLASS 15.0
27-33-02-92
