SAISGP-P-4A-3.5/5.5-M8
SAISGP-P-4A-3.5/5.5-M8

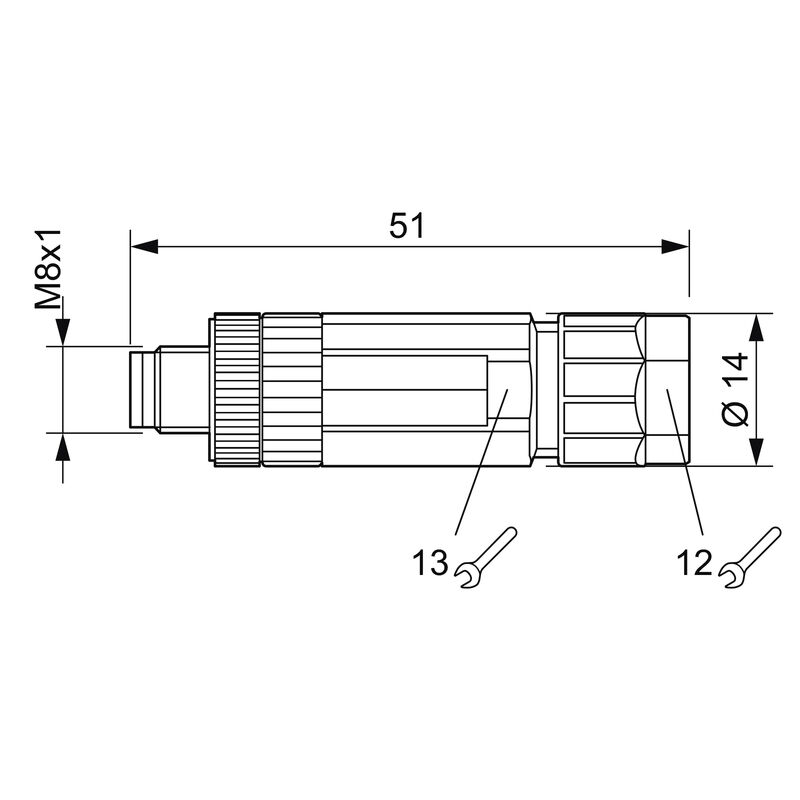

Dimensioned drawing
SAISGP-P-4A-3.5/5.5-M8
Pole scheme
Pin
SAISGP-P-4A-3.5/5.5-M8

SAISGP-P-4A-3.5/5.5-M8

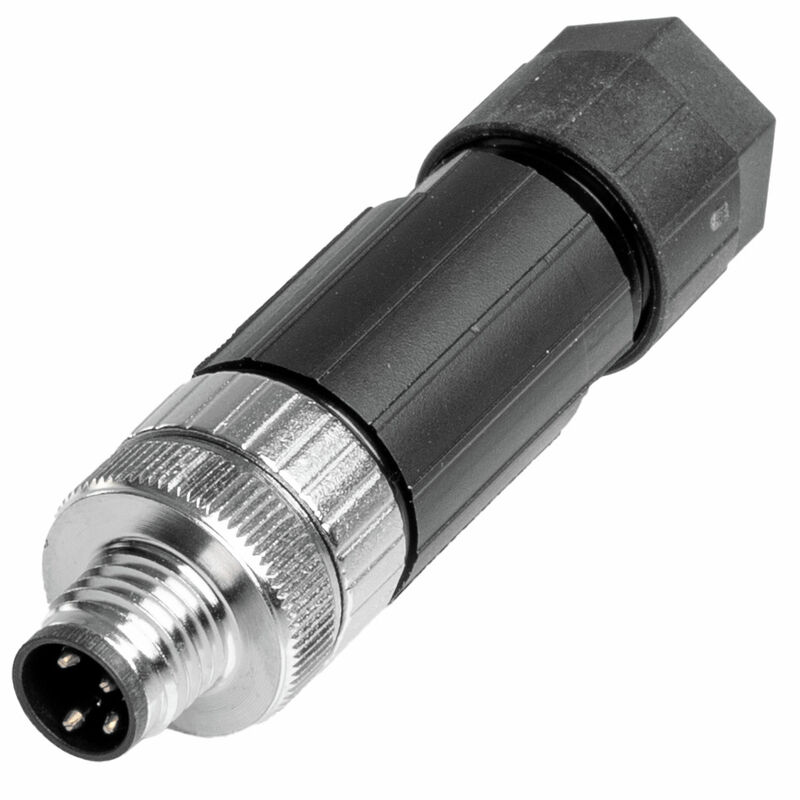

현장 부착형 커넥터, M8

Produkt ID 3103330000
Download datablad Engineering Support Product Downloads
Anvendte produkter 4
Approvals 일반 주문 데이터 Dimensions and weights 환경 제품 규정 준수 Technical data customisable plug-in connectors Standards Klasyfikacje

Approvals

ROHS
Conform

일반 주문 데이터

Version
현장 부착형 커넥터, M8
Order No.
3103330000
Type
SAISGP-P-4A-3.5/5.5-M8
GTIN (EAN)
4099987149662
Qty.
1 Styk

Dimensions and weights

Width
51 mm
Width (inches)
2,008 inch
Diameter
14 mm
Net weight
12 g

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Cable diameter, max.
5,5 mm
Cable diameter, min.
3,5 mm
Coding
none
Conductor cross-section, max.
0,5 mm²
Conductor cross-section, min.
0,14 mm²
Contact material
CuSn
Contact surface
Ni/Au
Gender of contact
Male
Housing main material
PBT diecast zinc
Nominal current
4 A
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Rated voltage
  • Bemessungsspannung:
    30 V
  • Spannungsart:
    AC/DC
Shield connection
No
Temperature range of housing
-25…+85 °C
Threaded ring material
Cink présöntvény
Type of connection
PUSH IN

Standards

Connector standard
IEC 61076-2-104

Klasyfikacje

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
