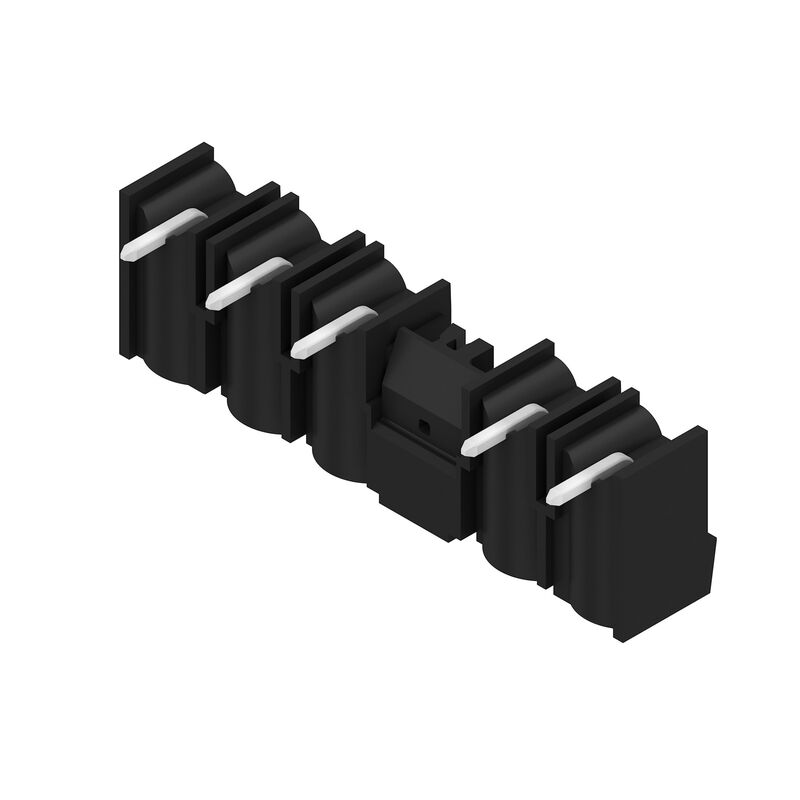

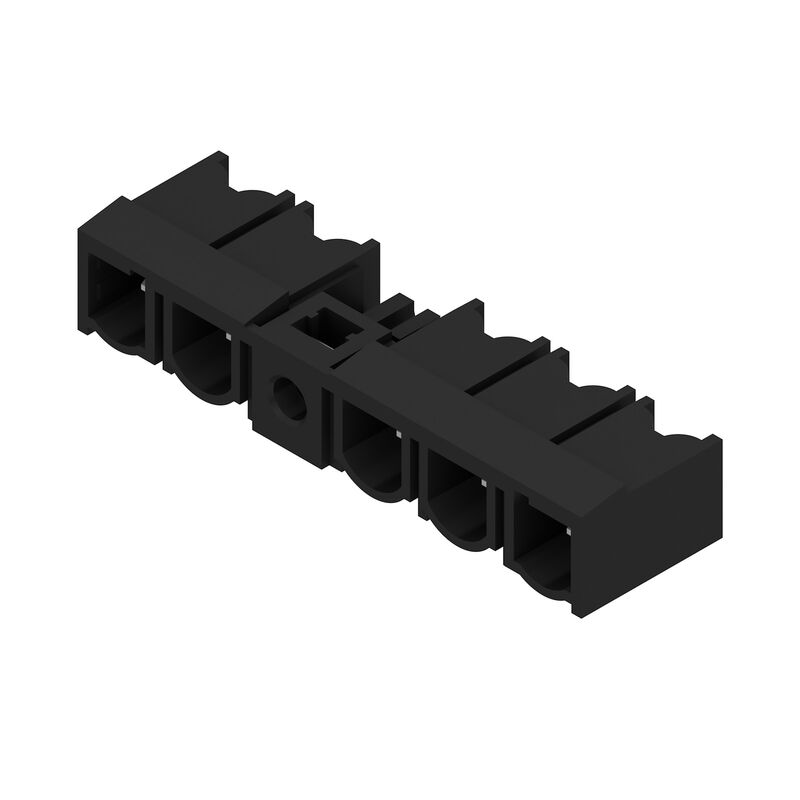

SL 7.62IT/05/90MSF3 3.2SN BK BX SO
PCB plug-in connector, male header, closed side / middle screw flange, THT solder connection, 7.62 mm, Number of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Tuotteen tunnus
2629600000
Ominaisuudet
| Version | PCB plug-in connector, male header, closed side / middle screw flange, THT solder connection, 7.62 mm, Number of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box |
| Order No. | 2629600000 |
| Type | SL 7.62IT/05/90MSF3 3.2SN BK BX SO |
| GTIN (EAN) | 4050118893724 |
| Qty. | 36 items |
| Product data |
IEC: 630 V UL: |
| Packaging | Box |
| Depth | 12,65 mm |
| Depth (inches) | 0,498 inch |
| Height | 11,6 mm |
| Height (inches) | 0,457 inch |
| Width | 45,1 mm |
| Width (inches) | 1,776 inch |
| Net weight | 3,87 g |
| REACH SVHC | / |
| Product family | OMNIMATE Power - series BL/SL 7.62IT |
| Type of connection | Board connection |
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 7,62 mm |
| Pitch in inches (P) | 0,3 " |
| Outgoing elbow | 90° |
| Number of poles | 5 |
| Number of solder pins per pole | 1 |
| Solder pin length (l) | 3,2 mm |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Solder pin dimensions = d tolerance | +0,01 / -0,03 mm |
| Solder eyelet hole diameter (D) | 1,4 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| L1 in mm | 38,1 mm |
| L1 in inches | 1,5 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Protection degree | IP20 in installed state |
| Tightening torque for screw flange, min. | 0,15 Nm |
| Tightening torque for screw flange, max. | 0,25 Nm |
| Plugging cycles | 25 |
| Insulating material | PBT GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | −40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | −50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | −25 °C |
| Temperature range, installation, max. | 100 °C |
| Rated current, max. number of poles (Tu=20°C) | 26 A |
| Rated current, min. number of poles (Tu=40°C) | 25 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 500 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 000 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Clearance, min. | 6,5 mm |
| Creepage distance, min. | 8,1 mm |
| Clearance distance, min. | 6,5 mm |
| Creepage distance, min. | 11,2 mm |
| Packaging | Box |
| VPE length | 338 mm |
| VPE width | 130 mm |
| VPE height | 20 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
