SLF 7.62HP/04/180FSH200 SN BK BX

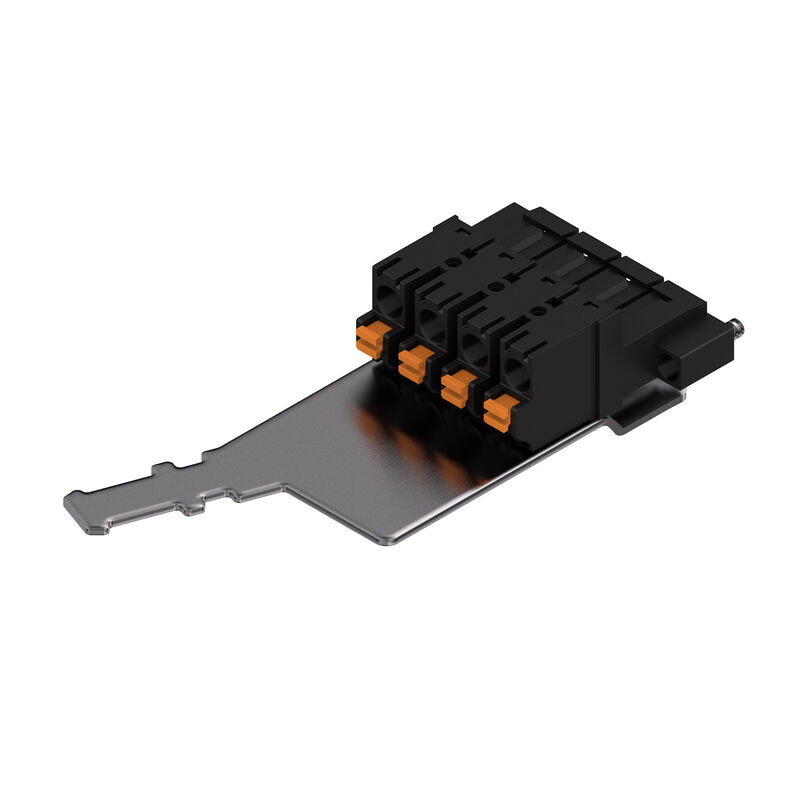

Product image
SLF 7.62HP/04/180FSH200 SN BK BX

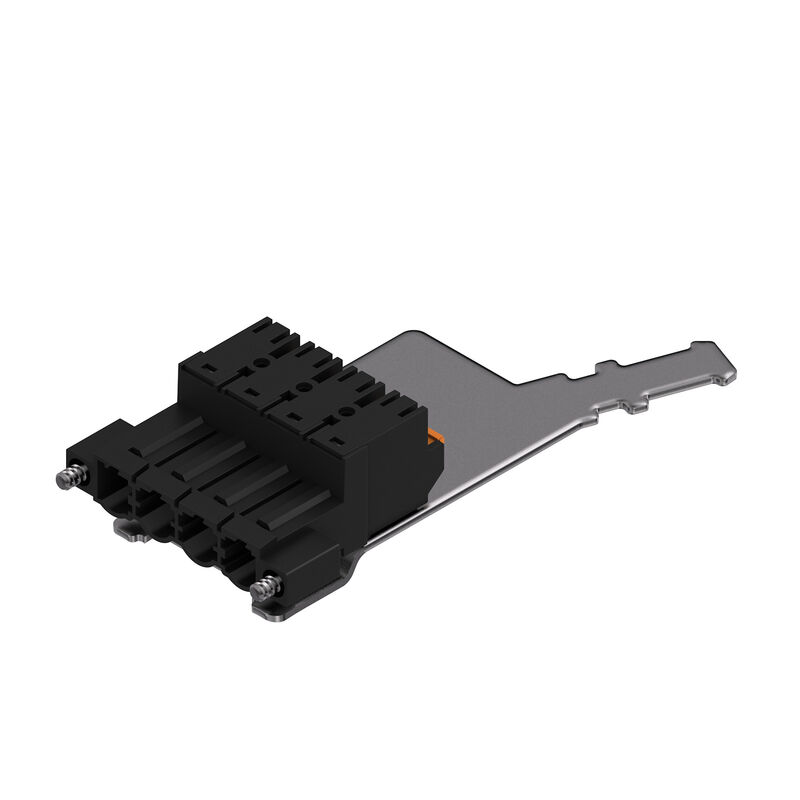

Product image
SLF 7.62HP/04/180FSH200 SN BK BX
Dimensional drawing
SLF 7.62HP/04/180FSH200 SN BK BX
Dimensional drawing
SLF 7.62HP/04/180FSH200 SN BK BX
Graph
SLF 7.62HP/04/180FSH200 SN BK BX
Graph

SLF 7.62HP/04/180FSH200 SN BK BX

PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box

Produkt ID 2632770000
Download datablad Product Downloads
Tilbehør 3 Er et modstykke til 2 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box
Order No.
2632770000
Type
SLF 7.62HP/04/180FSH200 SN BK BX
GTIN (EAN)
4050118646993
CPZ
40 Styk
Product data
IEC: 1000 V / 24 A / 0.5 - 2.5 mm²
UL: 600 V / 20 A / AWG 20 - AWG 12
Packaging
Box

Dimensions and weights

Depth
84,7 mm
Depth (inches)
3,335 inch
Height
19,6 mm
Height (inches)
0,772 inch
Width
39,56 mm
Width (inches)
1,557 inch
Net weight
26,439 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Power - series BL/SL 7.62HP
Type of connection
Field connection
Wire connection method
PUSH IN with actuator
Tension-clamp connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Conductor outlet direction
180°
Number of poles
4
L1 in mm
22,86 mm
L1 in inches
0,9 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
≤5 mΩ
Can be coded
Yes
Длина зачистки изоляции
10 mm
Tightening torque for screw flange, min.
0,15 Nm
Coppia di serraggio per flangia a vite, max.
0,25 Nm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264-A
Plugging cycles
25

Material data

Materiale isolante
PBT
Colori
black
Colour chart (similar)
RAL 9011
Gruppo materiali isolanti
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
2...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,08 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,5 mm²
rigido, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
con term. tub. con aislamiento DIN 46 228/4,máx
1,5 mm²
con terminale, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Sprawdzian trzpieniowy EN 60999 a x b; ø
2.8 mm x 2.0 mm
클램프형 도체
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
24 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
24 A
Rated current, min. number of poles (Tu=40°C)
23,8 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
1.000 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
630 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
6 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Clearance, min.
10,7 mm
Creepage distance, min.
10,7 mm

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group C / UL 1059)
20 A
Rated current (Use group D / UL 1059)
5 A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12

Packing

Packaging
Box
VPE length
352 mm
VPE width
135 mm
VPE height
48 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, durability, type of material, date clock, approval marking UL, approval marking CSA
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 04.08
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      AWG 20/19
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
