UR20-AUX-VSYS

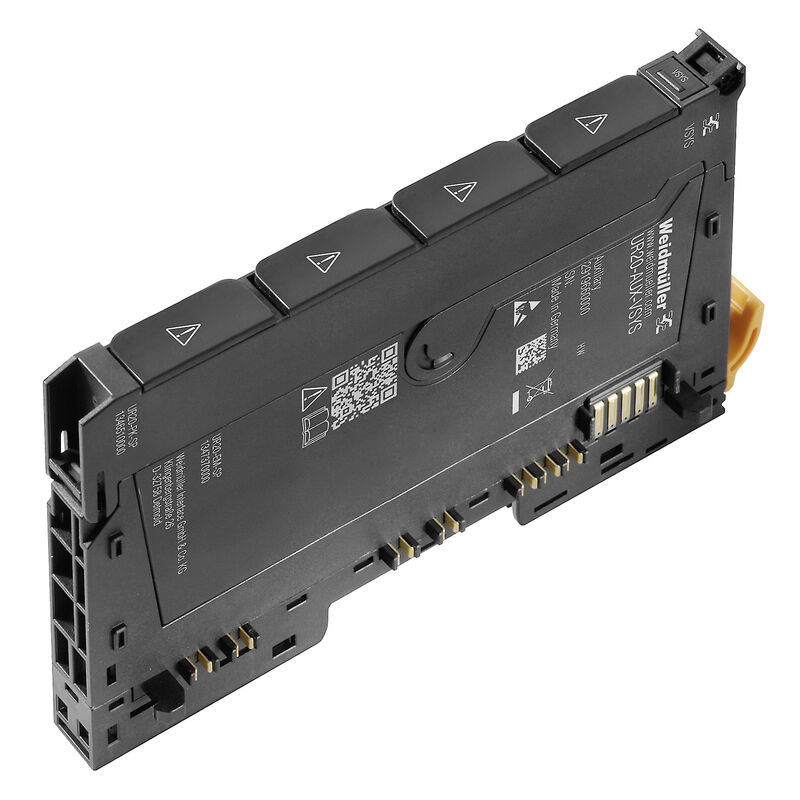

Product image
UR20-AUX-VSYS

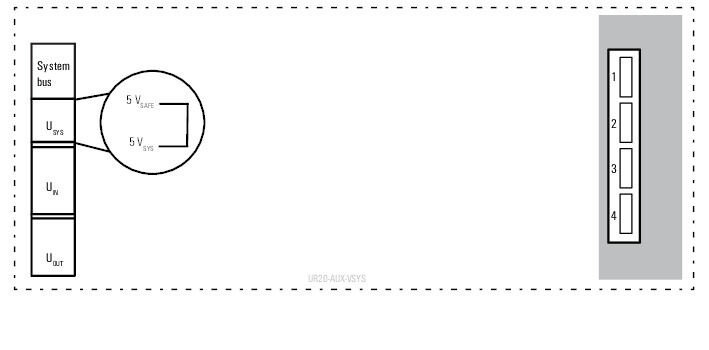

Block diagram

UR20-AUX-VSYS

Remote I/O module, IP20

Produkt ID 2919660000
Åbn i konfiguratoren
Download datablad Engineering Support Product Downloads
Tilbehør 12 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data General data Power supply System data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319245/-S800/-T1z1mm-S80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Remote I/O module, IP20
Order No.
2919660000
Type
UR20-AUX-VSYS
GTIN (EAN)
4099986576827
Qty.
1 Styk

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Height
120 mm
Height (inches)
4,724 inch
Width
11,5 mm
Width (inches)
0,453 inch
Net weight
70 g

Temperatures

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8

Connection data

Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Barrette de liaison équipée
TS 35
Categoría de sobretensión
II
Grado inflamabilidad según UL 94
V-0
Pollution severity
2
Pression d'air (opération)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Umidità dell'aria (trasporto)
10% to 95%, non-condensing as per DIN EN 61131-2
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Влажность воздуха (процесс)
10% to 95%, non-condensing as per DIN EN 61131-2
공기압(운반)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2

Power supply

Versorgungsspannung
0 V (from output current path)

System data

Galvanic isolation
500 V DC between the current paths
Typ modulu
Auxiliary module

Classifications

ETIM 8.0
EC001600
ETIM 9.0
EC001600
ETIM 10.0
EC001600
ECLASS 14.0
27-24-26-10
ECLASS 15.0
27-24-26-10
