BLZP AH 12 BK

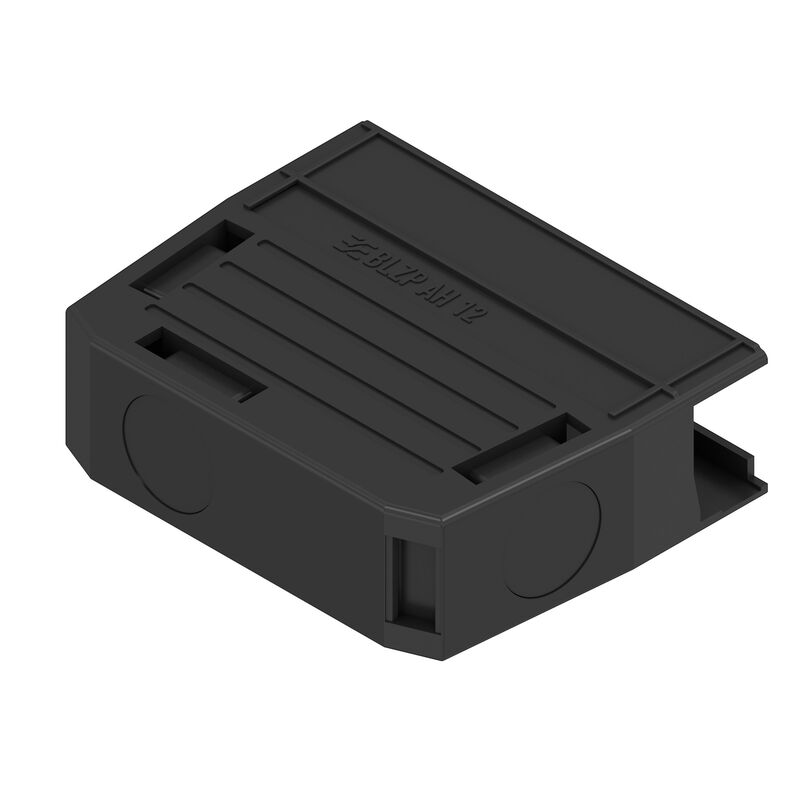

Product image
BLZP AH 12 BK

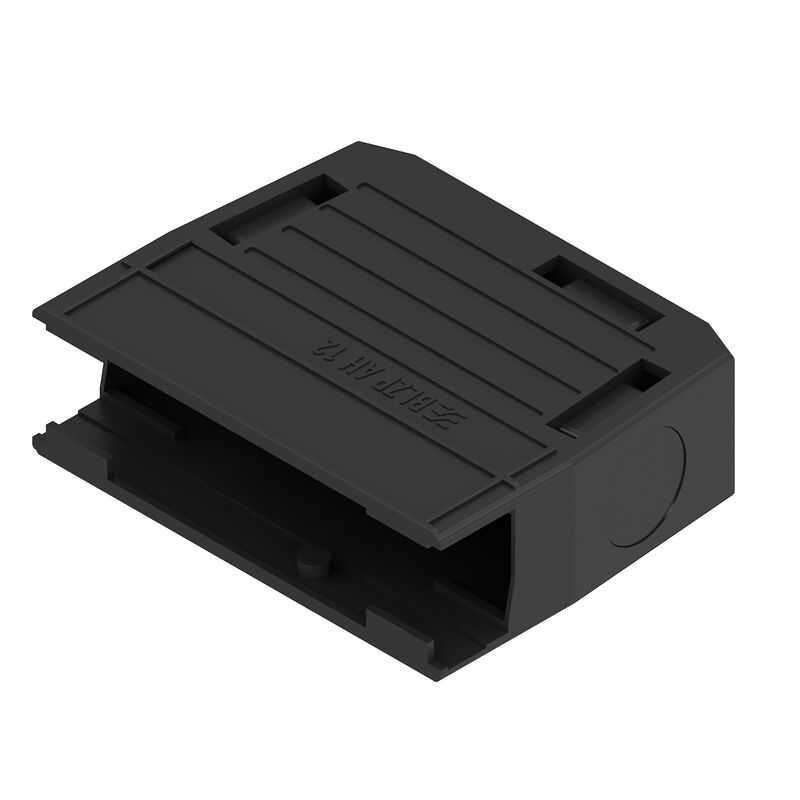

Product image
BLZP AH 12 BK
Dimensional drawing
BLZP AH 12 BK
Example of use
Similar to illustration

BLZP AH 12 BK

PCB plug-in connector, Accessories, Hood, black, Number of poles: 12

Produkt ID 2507140000
Download datablad Product Downloads
Anvendte produkter 37
Zulassungen General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Packing Important note Klassifikationen

Zulassungen

ROHS
Konform

General ordering data

Version
PCB plug-in connector, Accessories, Hood, black, Number of poles: 12
Order No.
2507140000
Type
BLZP AH 12 BK
GTIN (EAN)
4050118524406
Qty.
10 items
Product data

Packaging
Box

Dimensions and weights

Height
48 mm
Höhe (inch)
1,89 inch
Width
19 mm
Anchura (pulgadas)
0,748 inch
Length
60 mm
Length (inches)
2,362 inch
Net weight
18,304 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

System specifications

Product family
OMNIMATE Signal - series BL/SL 5.08
Pitch in mm (P)
5,08 mm
Шаг в дюймах (P)
0,2 "
Number of poles
12
L1 in inches
0,197 "
Pin series quantity
1
Tightening torque
  • Torque type:
    Cover screw
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Material data

Insulating material
PBT
Colour
black
Colour chart (similar)
RAL 9011
UL 94 flammability rating
V-0
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
160 mm
VPE width
110 mm
VPE height
55 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Langzeitlagerung des Produkts bei einer Durchschnittstemperatur von 50 °C und einer maximalen Luftfeuchtigkeit von 70 %, 36 Monate


Klassifikationen

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
