H1,5/14 R BD 1BAGX500
H1,5/14 R BD 1BAGX500
Detailed drawing

H1,5/14 R BD 1BAGX500

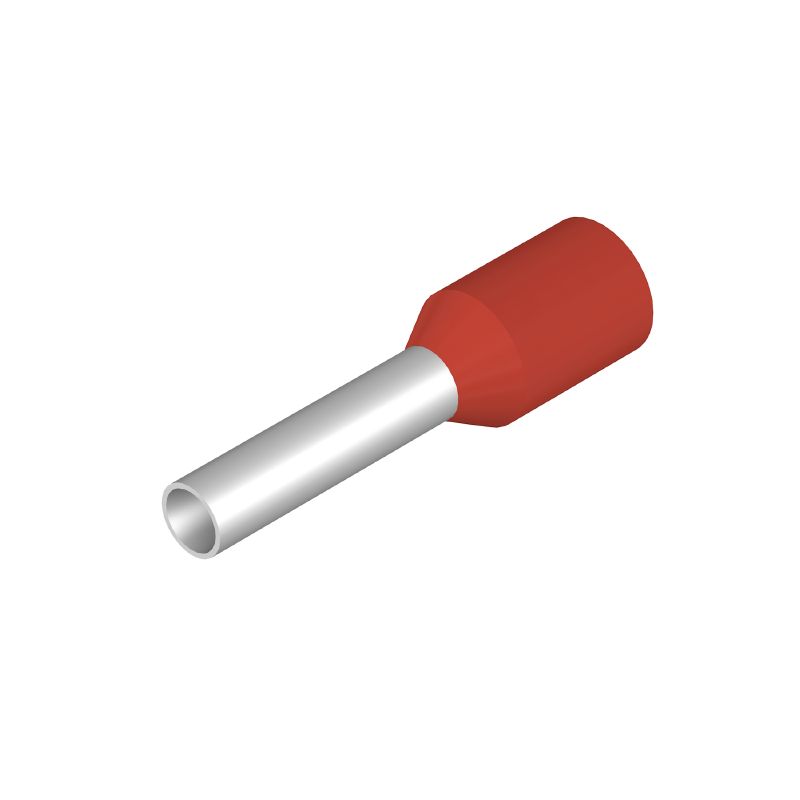

Wire-end ferrule, Standard, 10 mm, 8 mm, red

Tuotteen tunnus 9004340000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 13 Yksittäinen osa tuotteelle 1 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319229/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

General ordering data

Version
Wire-end ferrule, Standard, 10 mm, 8 mm, red
Order No.
9004340000
Type
H1,5/14 R BD
GTIN (EAN)
4008190080723
Qty.
500  items
Packaging
Tape

Dimensions and weights

Net weight
0,112  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Linked wire-end ferrules, red
Version
Standard

Wire-end ferrules

Collar diameter (D2)
3,2  mm
Colour code
Weidmueller
Conductor cross-section
1,5  mm²
Contact surface diameter (D1)
1,7  mm
Contact surface length (L2)
8  mm
L1 in mm
14  mm
Metal sleeve thickness (S1)
0,15  mm
Plastic collar thickness (S2)
0,25  mm
Stripping length
10  mm
Wire connection cross section AWG, max.
AWG 16

Classifications

ETIM 6.0
EC000005
ETIM 7.0
EC000005
ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 9.0
27-40-02-01
ECLASS 9.1
27-40-02-01
ECLASS 10.0
27-40-02-01
ECLASS 11.0
27-40-02-01
ECLASS 12.0
27-40-02-01
ECLASS 13.0
27-40-02-01
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
