Egenskaper

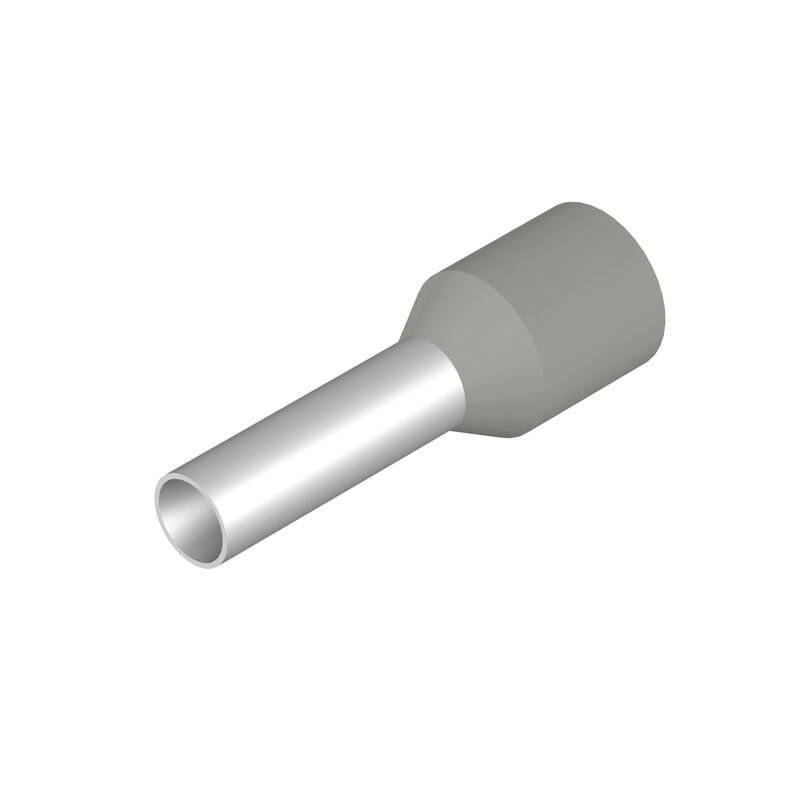

| Utförande | Ändhylsa, Standard, 11 mm, 8 mm, grå |
| Art.nr. | 9004370000 |
| Typ | H2,5/14T GR BD |
| GTIN (EAN) | 4008190052508 |
| Förp. | 500 items |
| Förpackning | Bandvara |
| Nettovikt | 0,146 g |
| RoHS-kompatibilitetsstatus | Kompatibel utan undantag |
| REACH SVHC | No SVHC above 0.1 wt% |
| Artikelbeskrivning | sammanlänkade ändhylsremsor, färg grå |
| Utförande | Standard |
| Avisoleringslängd | 11 mm |
| färgkod | Telemecanique |
| Kontaktytans diameter (D1) | 2,2 mm |
| Kontaktytans längd (L2) | 8 mm |
| Kragdiameter (D2) | 4,2 mm |
| L1 i mm | 14 mm |
| Ledardiameter | 2,5 mm² |
| Ledardiameter, AWG, max | AWG 14 |
| Metallkapseltjocklek (S1) | 0,15 mm |
| Tjocklek plastkrage (S2) | 0,25 mm |
| Teknikuppgifter Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55295) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9004370000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9004370000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9004370000&norm=0) |
| Användardokumentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Kataloger | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| Godkännanden |   |
| ROHS | Uppfyllelse |
| UL File Number Search | [UL-webbplats](LINK/UL_search.html) |
| Certifikat-Nr. (cULus) | E499744 |
