ZP 2.5/1AN/12 GN/BE

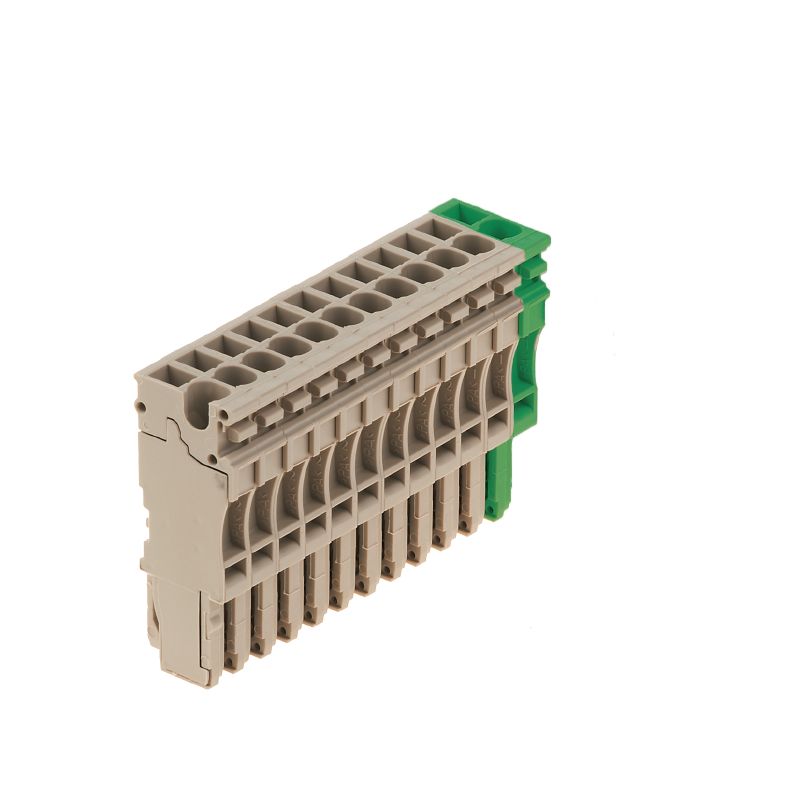

Product image

ZP 2.5/1AN/12 GN/BE

Z-series, Plug-in connector, beige, Direct mounting

Item No. 1867190000
Download data sheet Engineering Support Product Downloads
Accessories 8 Related products 317
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Product images Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Z-series, Plug-in connector, beige, Direct mounting
Order No.
1867190000
Type
ZP 2.5/1AN/12 GN/BE
GTIN (EAN)
4032248471867
Qty.
20 items

Dimensions and weights

Depth
41 mm
Depth (inches)
1.614 inch
Height
16 mm
Height (inches)
0.63 inch
Width
61.2 mm
Width (inches)
2.409 inch
Net weight
38.45 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Set of connectors
pluggable
Tension-clamp connection
End cover plate required
No
Number of potentials
12
Number of levels
1
Number of clamping points per level
1
Levels cross-connected internally
No
PE connection
Yes

Additional technical data

Installation advice
Direct mounting
Open sides
closed
Type of mounting
Plugged

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Connection cross-section, stranded, min.
0.13 mm²
Dirección de conexión
top
Keresztmetszet csatlakoztatott vezetékhez, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, min.
0.13 mm²
Lehrdorn nach 60 947-1
A2
Longitud de desaislado
10 mm
Número de conexiones
12
Sección de conexión del conductor AWG, máx.
AWG 26
Sección de embornado, máx.
4 mm²
Sección de embornado, mín.
0.13 mm²
Tipo de conexión
Plug-in connection
Vezeték csatlakozás keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, névleges csatlakozás, min.
0.13 mm²
Vezeték csatlakozási keresztmetszet AWG, min.
AWG 12
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, névleges csatlakozás, max.
2.5 mm²
Wire connection cross section, finely stranded, min.
0.13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.13 mm²
와이어 결선 단면, 가는 꼬임, 최대
4 mm²

CSA rating data

Certificate number (cCSAus)
154685-1460993
Current size C (cCSAus)
20 A
Current size D (cCSAus)
5 A
Voltage size C (cCSAus)
300 V
Voltage size D (cCSAus)
600 V
Wire cross section max. (cCSAusX)
12 AWG
Wire cross section min. (cCSAusX)
26 AWG

General

Einbauhinweis
Direct mounting
Leiteranschlussquerschnitt AWG, max.
AWG 26
Leiteranschlussquerschnitt AWG, min.
AWG 12
Normen
In accordance with IEC 60947-7-1
Polzahl
12

Rating data

Rated cross-section
2.5 mm²
Rated voltage
500 V
Rated voltage to adjoining terminal
500 V
Max. voltage of clamp support & pluggable system
690 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
6 kV
Rated impulse withstand voltage to adjacent terminal
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
