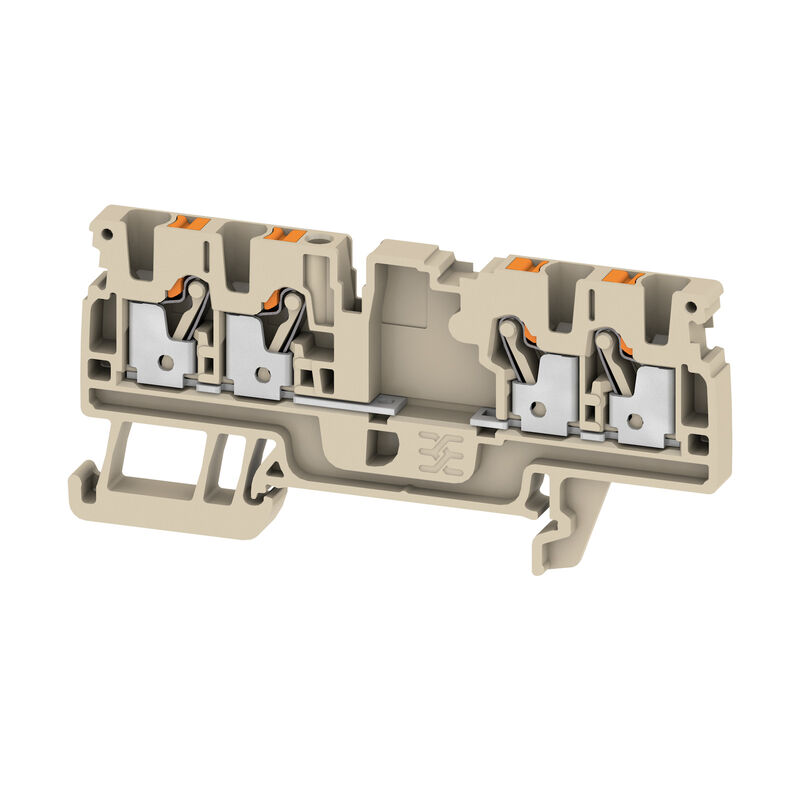

A4C 2.5 EM D/0

A4C 2.5 EM D/0

Component terminal block, PUSH IN, dark beige, 2.5 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 1, TS 35

Ürün No. 3170160000
Veri sayfasını indir Ürün dokümantasyonu Mühendislik desteği Ürün İndirmleri
İlgili ürünler 231
Approvals General ordering data Dimensions and weights Temperatures Material data System specifications Additional technical data Component Conductors for clamping (rated connection) Fuse terminals General Rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)

General ordering data

Version
Component terminal block, PUSH IN, dark beige, 2.5 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 1, TS 35
Order No.
3170160000
Type
A4C 2.5 EM D/0
GTIN (EAN)
4099987834544
Qty.
50 adet

Dimensions and weights

Width
5,1 mm
Width (inches)
0,201 inch
Net weight
9,52 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temperature, min.
-60 °C
Continuous operating temperature, max.
130 °C

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Type of fixing
TS 35
Type of mounting
TS 35

Component

Component 1
Diode 1N 4007
Component current
1 A
Component voltage
1.300 V
Element type
Diode
Component diode
  • Type diode:
    1N4007

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Type of connection
PUSH IN
Type of connection 2
PUSH IN

Fuse terminals

Display
Without LED

General

Mounting rail
TS 35
Standards
In accordance with IEC 60947-7-1

Rating data

Rated cross-section
2,5 mm²
Rated voltage
500 V
Rated DC voltage
500 V
Nominal current
0,5 A
Current at maximum wires
0,5 A
Standards
In accordance with IEC 60947-7-1
Power loss (IEC 60947-7-x)
0,77 W
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 8.0
EC000903
ETIM 9.0
EC000903
ETIM 10.0
EC000903
ECLASS 14.0
27-25-01-14
ECLASS 15.0
27-25-01-14
