Özellikler

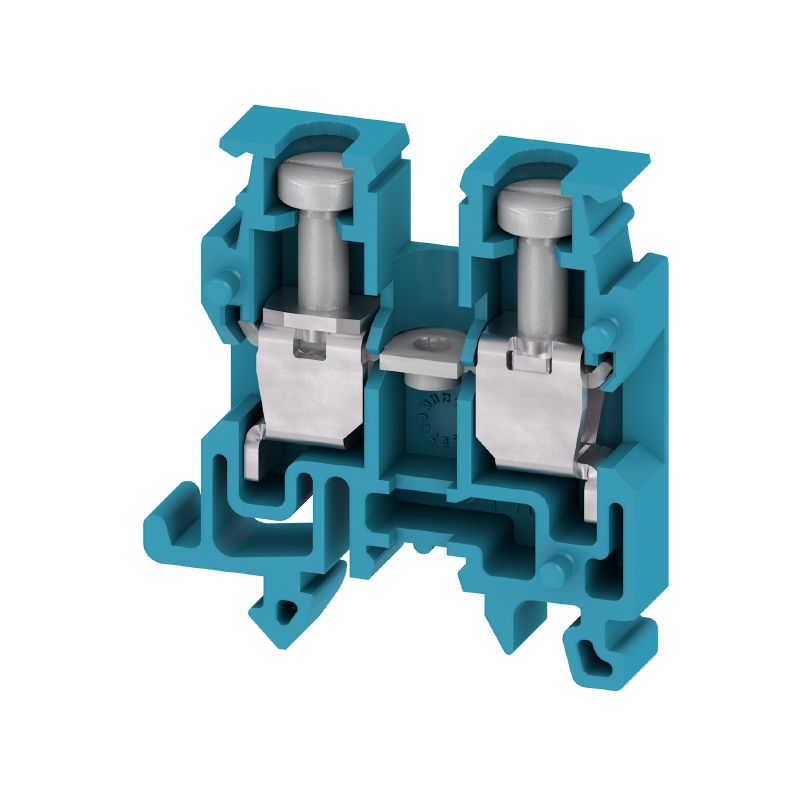

| Version | Feed-through terminal block, Screw connection, blue, 2.5 mm², 24 A, 250 V, Number of connections: 2 |
| Order No. | 0697180000 |
| Type | AKZ 2.5 BL |
| GTIN (EAN) | 4008190167448 |
| Qty. | 100 adet |
| Depth | 26,3 mm |
| Depth (inches) | 1,035 inch |
| Depth including DIN rail | 27,1 mm |
| Height | 25,5 mm |
| Height (inches) | 1,004 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 3,344 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | blue |
| UL 94 flammability rating | V-2 |
| Certificate No. (ATEX) | TUEV18ATEX8221U |
| Certificate No. (IECEX) | IECEXTUR18.0024U |
| Max. voltage (ATEX) | 220 V |
| Current (ATEX) | 24 A |
| Wire cross section max. (ATEX) | 4 mm² |
| Max. voltage (IECEX) | 220 V |
| Current (IECEX) | 24 A |
| Wire cross section max. (IECEX) | 4 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
With assembly peg for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 15 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 3.0 x 0.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 2,5 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 7 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Twin wire-end ferrules, max. | 1,5 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-2124451 |
| Current size C (CSA) | 10 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| TS 15 offset | 11,25 mm |
| Number of poles | 1 |
| Rail | TS 15 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 24 A |
| Current at maximum wires | 32 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size B (UR) | 10 A |
| Current size D (UR) | 10 A |
| Voltage size B (UR) | 300 V |
| Voltage size D (UR) | 300 V |
| Approval/Certificate/Document of Conformity |
[Attestation Of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35860)
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253955) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_42040) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_42041) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_80370) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_80371) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178466) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253956) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36437) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59263) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0697180000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0697180000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0697180000&norm=0) |
| User Documentation |
[NTI AKZ 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_80373)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |         |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (UR) | E60693 |
Aksesuarlar
-
Ürün No.:0697360000Ambalaj birimi:50 adet
End plate (terminals), beige, Height: 22.5 mm, Width: 2.5 mm, V-0, PA 66
-
Ürün No.:0697380000Ambalaj birimi:50 adet
End plate (terminals), blue, Height: 22.5 mm, Width: 2.5 mm, V-2, PA 66
-
Ürün No.:0382860000Ambalaj birimi:50 adet
End bracket, beige, TS 15, V-2, Polyamide 66, Width: 10 mm, 100 °C
-
-
-
Ürün No.:0368200000Ambalaj birimi:50 adet
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 2, Pitch in mm (P): 5.10, Insulated: No, Width: 9.1 mm
-
Ürün No.:0368500000Ambalaj birimi:20 adet
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 10, Pitch in mm (P): 5.10, Insulated: No, Width: 49.9 mm
-
Ürün No.:0368400000Ambalaj birimi:50 adet
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 4, Pitch in mm (P): 5.10, Insulated: No, Width: 19.3 mm
-
Ürün No.:0368300000Ambalaj birimi:50 adet
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 3, Pitch in mm (P): 5.10, Insulated: No, Width: 14.2 mm
-
Ürün No.:0336400000Ambalaj birimi:50 adet
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 2, Pitch in mm (P): 6.10, Insulated: No, Width: 11.1 mm
-
Ürün No.:2007130000Ambalaj birimi:500 adet
Dekafix, Terminal marker, 5 x 8 mm, Weidmueller, white
-
Ürün No.:0318560000Ambalaj birimi:20 adet
Partition plate (terminal), beige, Height: 32.5 mm, Width: 1.5 mm, V-0, PA 66/6
-
-
Ürün No.:1609801044Ambalaj birimi:1000 adet
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
-
