Özellikler
| Version | Accessories, Fixing, metal |
| Order No. | 1082400000 |

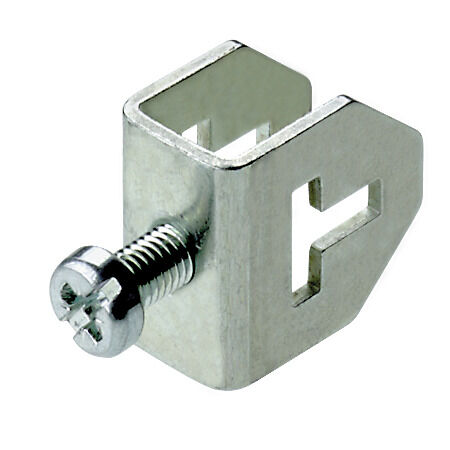

| Type | BFEH 1/WSH |
| GTIN (EAN) | 4008190989057 |
| Qty. | 10 adet |
| Depth | 31 mm |
| Depth (inches) | 1,22 inch |
| Height | 20 mm |
| Height (inches) | 0,787 inch |
| Width | 13,5 mm |
| Width (inches) | 0,531 inch |
| Net weight | 13,3 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | metal |
| Colour | grey |
| Version | Fixing clip |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Pitch in mm (P) | 31 mm |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60333) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1082400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1082400000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
