DAE M12 PA LONG

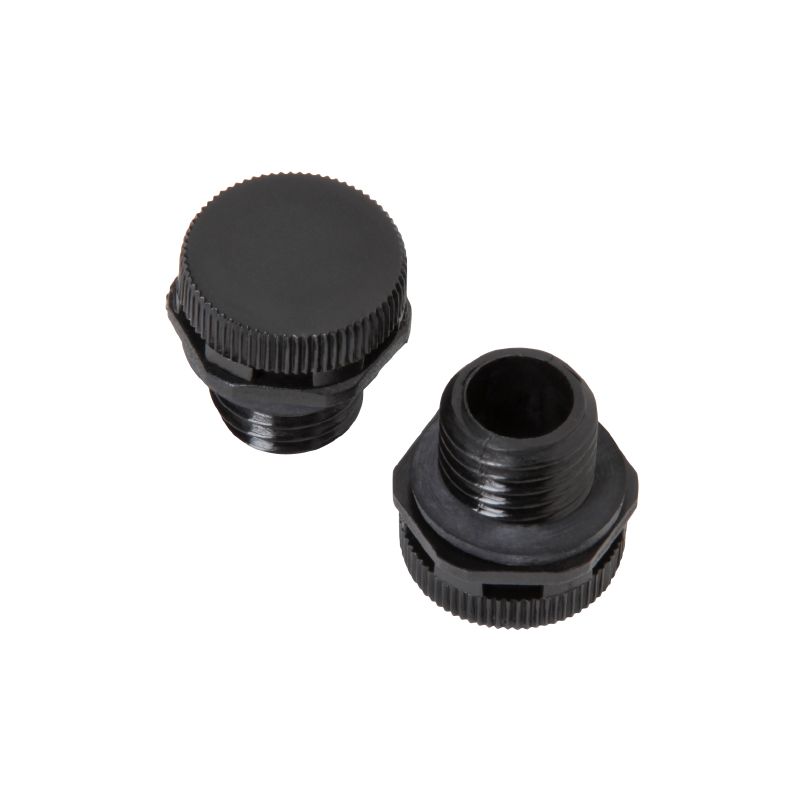

Similar to illustration
DAE M12 PA LONG

DAE M12 PA LONG

DAE (ventilation element), Compensating element, straight, M 12, 10 mm, IP66, IP68, IP69K, Polyamide 6

Ürün No. 1868570000
Veri sayfasını indir Mühendislik desteği
aksesuarıdır 102 İlgili ürünler 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
DAE (ventilation element), Compensating element, straight, M 12, 10 mm, IP66, IP68, IP69K, Polyamide 6
Order No.
1868570000
Type
DAE M12 PA LONG
GTIN (EAN)
4032248440429
Qty.
10 adet

Dimensions and weights

Height
7.6 mm
Height (inches)
0.299 inch
Length
17.4 mm
Length (inches)
0.685 inch
Wall thickness, min.
0.5 mm
Wall thickness, max.
10 mm
Net weight
1.7 g

Temperatures

Operating temperature
-40 °C...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

AF size 1
17 mm
Air flow
0.8 l/min at 0.1 bar ΔP, up to 7.6 l/min at 1bar ΔP
Campo delle temperature di impiego, max.
105 °C
Campo delle temperature di impiego, min.
-40 °C
Classe d'infiammabilità UL 94
V-2
Dławnica kablowa
metric
External thread
M 12
Inside diameter D2
12 mm
Installation guidelines
See assembly instructions
Length of thread
10 mm
O-Ring
NBR
Protection degree with GWDR
IP66
IP68
IP69K
Silicone
No
Stopień ochrony
IP66
IP68 (1 m / 60 min)
IP69K
Torque for connecting adapter, max.
0.6 Nm
Torque for connecting adapter, min.
0.4 Nm
Víz betáplálási pont
> 1.5 bar
Основной материал
Polyamide 6
나사산 피치
1.5 mm
할로겐
No

Classifications

ETIM 8.0
EC000814
ETIM 9.0
EC000814
ETIM 10.0
EC000814
ECLASS 14.0
27-18-28-17
ECLASS 15.0
27-18-28-17
