Özellikler
| Version | EA (earthing rings), Earthing ring, Miscellaneous, M 20, Brass, nickel-plated |
| Order No. | 1736490000 |

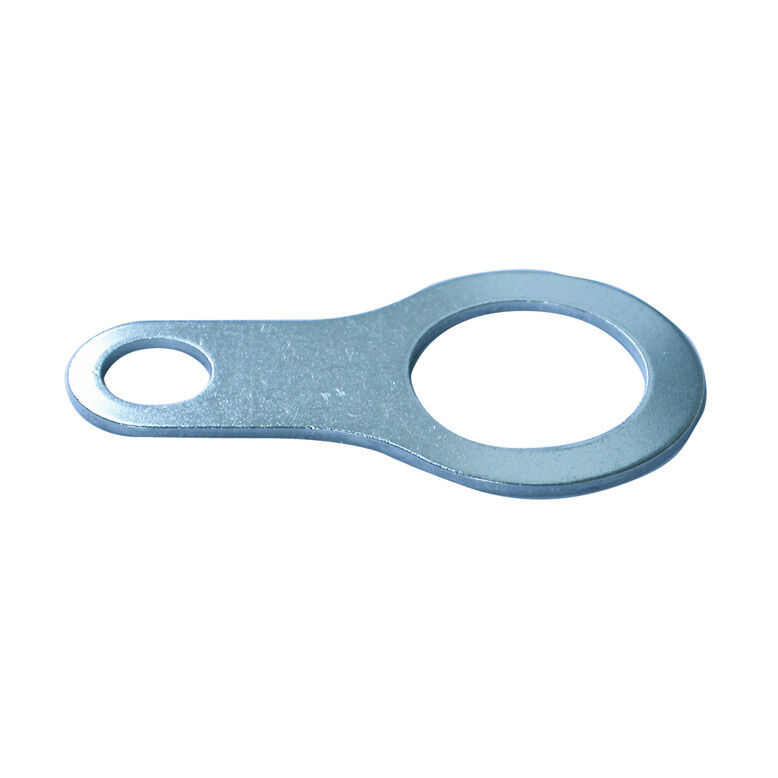

| Type | EA-RING MS/M 20 |
| GTIN (EAN) | 4008190963590 |
| Qty. | 20 adet |
| Height | 53,8 mm |
| Height (inches) | 2,118 inch |
| Length | 53,8 mm |
| Length (inches) | 2,118 inch |
| Net weight | 6,95 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2bd73422-c6ea-4a92-b8e7-00964d1156f3 |
| Identification |
Ex e II
II 2 GD EEx d II II 2 GD |
| Cable glands | M 20 |
| External thread | M 20 |

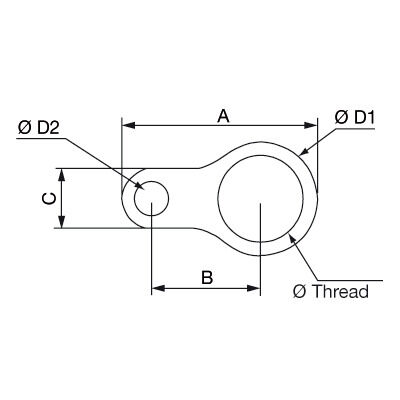

| Gap, internal dimension B | 33 mm |
| Inside diameter D2 | 7 mm |
| Material | Brass, nickel-plated |
| O.D. | 28,6 mm |
| Thickness | 1,5 mm |
| Width, outer dimension C | 13 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1736490000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002317 |
| ETIM 7.0 | EC002317 |
| ETIM 8.0 | EC002317 |
| ETIM 9.0 | EC002317 |
| ECLASS 9.0 | 27-14-44-32 |
| ECLASS 9.1 | 27-14-44-90 |
| ECLASS 10.0 | 27-14-44-32 |
| ECLASS 11.0 | 27-14-44-32 |
| ECLASS 12.0 | 27-14-08-07 |
| ECLASS 13.0 | 27-14-08-07 |
| ECLASS 14.0 | 27-14-08-07 |
| ROHS | Conform |
