Özellikler

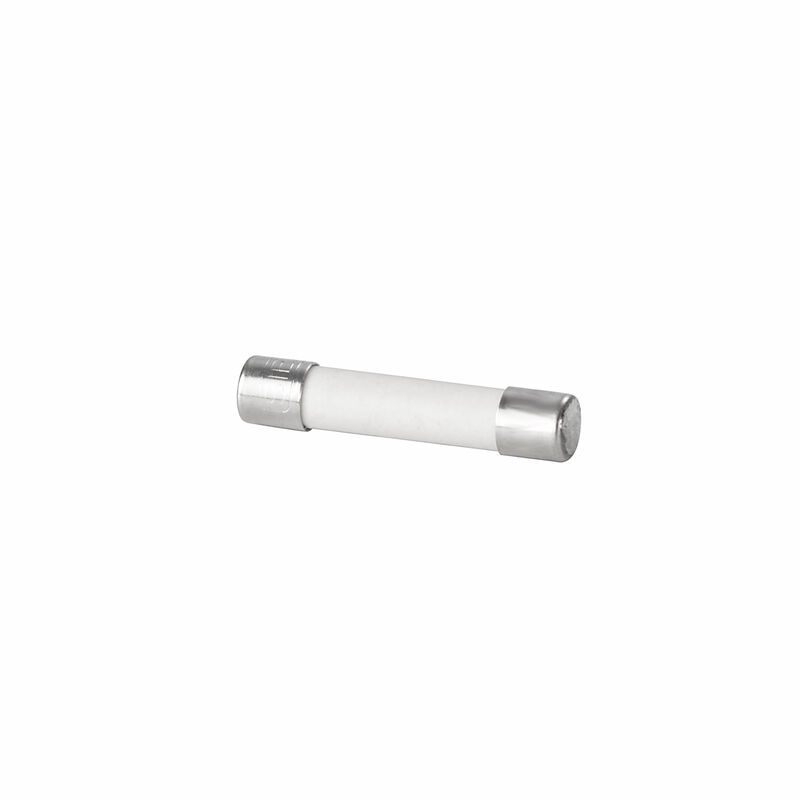

| Version | Miniature fuse, quick-acting, 2 A, G-Si. 5 x 25 |
| Order No. | 0192700000 |
| Type | G 25/2.00A/F BL |
| GTIN (EAN) | 4008190176402 |
| Qty. | 10 adet |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,4 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Light Grey |
| Version | Fuse accessories |
| Cartridge fuse | G-Si. 5 x 25 |
| Characteristics | quick-acting |
| Colour | Light Grey |
| Colour of the indicator | blue |
| Current | 2 A |
| Melting integral | 9,6 A²s |
| Optical function display | Yes |
| Power output (@ 1.5 In) | 0,7 W |
| Rated breaking capacity | 1,5 kA |
| Version | Fuse accessories |
| Voltage drop | 360 mV |
| Rated voltage | 250 V |
| Rated current | 2 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ECLASS 14.0 | 27-14-20-01 |
| ROHS | Conform |
