Özellikler
| Version | Installation cable, PROFINET, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 100 m |
| Order No. | 8899000000 |
| Type | IE-C5AS4VG-100 |
| GTIN (EAN) | 4032248649372 |
| Qty. | 1 adet |
| Packaging | as cable ring in carton |
| Length | 100 m |
| Length (inches) | 3.937,008 inch |
| Net weight | 6.430 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -40 °C...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Insulation | PE |
| Number of poles | 4 |
| Number of wires | 4 |
| Resistance to oils | limited |
| Resistance to spread of flame | in accordance with IEC 60332-1 / UL 1685 |
| Sheathing colour | green (RAL 6018) |
| Shielded | Yes |
| Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
| Standard, additional standards |
UL-File E11901 Vol.3 Sec.1 Page 2 Verified Cat. 5e
UL-File E116441 Vol.1 Sec.6 Page 8 UL-File E306668 Vol.1 Sec.3 Page 1 |
| Standard, assembly | UL-Style 21694 |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Standard, additional standards |
UL-File E11901 Vol.3 Sec.1 Page 2 Verified Cat. 5e
UL-File E116441 Vol.1 Sec.6 Page 8 UL-File E306668 Vol.1 Sec.3 Page 1 |
| Standard, assembly | UL-Style 21694 |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |

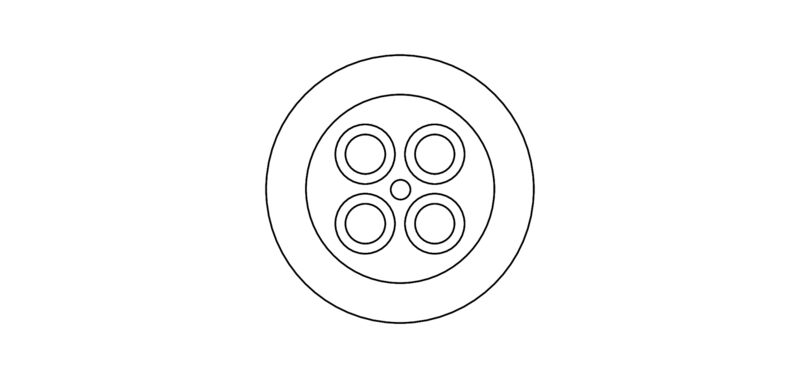

| Arrangement of wire cores | Star-quad |
| Colour sequence or wires - wire pairs | white, yellow, blue, orange |
| Complete shielding |
Aluminium foil
Shielding braid made from copper wiring |
| Cross-section | 4*AWG 22/1 - 0.33 mm² |
| Diameter of inner sheathing | 4,05 mm |
| Filler | As central element |
| Insulation | PE |
| Insulation cross-section | 1,5 mm |
| Material sheath | PVC |
| Number of wires | 4 |
| Overlap of shielding braid | 85 % |
| Sheath diameter, max. | 6,7 mm |
| Sheath diameter, min. | 6,3 mm |
| Sheathing colour | green (RAL 6018) |
| Sheathing material thickness | 0,9 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0,13 mm |
| Standard designations | 2YY(ST)CY 2x2x0,64/1,5-100 GN |
| Strands | 1 |
| Wire core insulation thickness | 0,43 mm |
| Wire material | Non-insulated copper wire |
| Capacity at 1 kHz | 52 nF/km |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Delay skew | 40 ns/100m |
| Loop resistance | 115 Ω/km |
| Operating voltage (UL rating) | 600 V |
| Operating voltage, UL | 600 V |
| Resistance differential | 3 % |
| Signal propagation time | 5,3 ns/m |
| Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
| Transfer impedance | 10 mΩ/m at 10 MHz |
| Abrasion resistance | good |
| Colour | green |
| Min. bending radius, once only | 4 x cable diameter |
| Min. bending radius, repetitive | 8 x cable diameter |
| Resistance to oils | limited |
| Resistance to spread of flame | in accordance with IEC 60332-1 / UL 1685 |
| UV-resistant | Complies with UL 1581 Sec. 1200 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| ETIM 9.0 | EC003249 |
| ECLASS 9.0 | 27-06-18-05 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-18-01 |
| ECLASS 11.0 | 27-06-18-01 |
| ECLASS 12.0 | 27-06-18-01 |
| ECLASS 13.0 | 27-06-18-01 |
| ECLASS 14.0 | 27-06-18-01 |
| ROHS | Conform |
