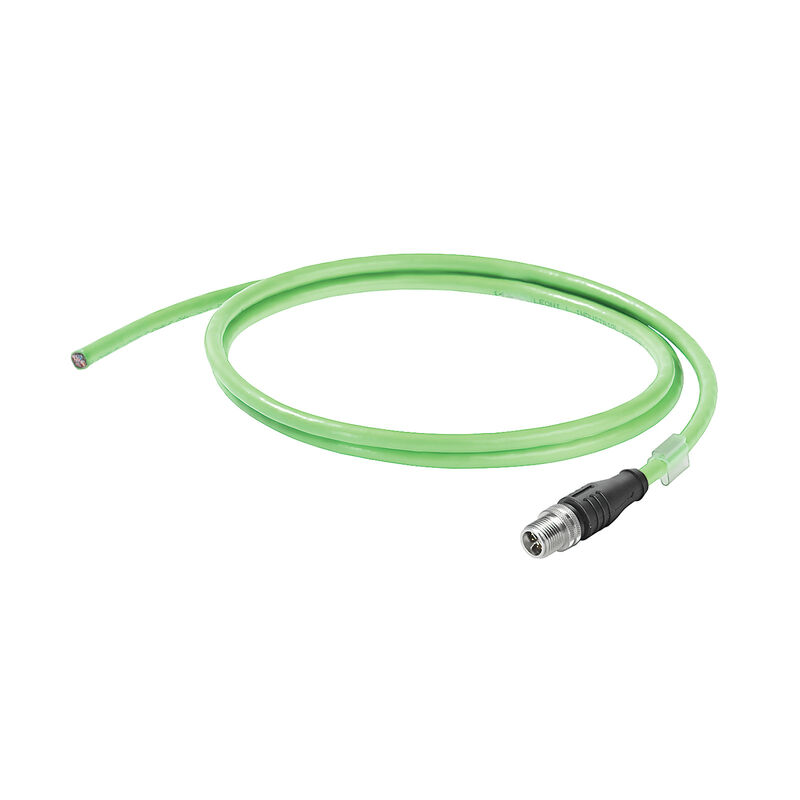

System cable, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 5 m

Produkt ID 1463650050
Download datablad Product Downloads
Tilbehør 2 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 5 m
Order No.
1463650050
Type
IE-C6EL8UG0050XCSXXX-E
GTIN (EAN)
4050118270914
Qty.
1 Styk

Dimensions and weights

Length
5 m
Length (inches)
196,85 inch
Net weight
250 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Cable structure

Apantallamiento total
Shielding braid made from copper wiring
Arrangement of wire cores
Twisted pair
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Insulation
PE
Insulation cross-section
0,98 mm
Kupferdurchmesser
0,48 µm
Material sheath
PUR
Matériau de conducteur
Stranded tin-plated copper wire
Number of wires
8
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,1 mm
Sheathing colour
green (RAL 6018)
Shielding
S/FTP
Spessore calza di schermatura
0,1 mm
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Strands
7
Vezetékek – vezetékpárok színsorrendje
white - blue, white - orange, white - green, white - brown
Wire pair shielding
Aluminium foil
Wiring
EIA/TIA T568 B

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Czas przebiegu sygnału
5,2 ns/m
Karakteristisk impedans
100 ± 5 Ω at 100MHz
Loop resistance
290 Ω/km
Испытательное напряжение: провод–провод–экран
700 Vrms, 50 Hz, 1 min
Передаточный импеданс
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz
전송 속도
10 Gbit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
