IE-C6FP8LB0200M40M40-B
IE-C6FP8LB0200M40M40-B
Wiring
IE-C6FP8LB0200M40M40-B
Dimensioned drawing

IE-C6FP8LB0200M40M40-B

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 20 m

Tuotteen tunnus 1165900200
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 Samankaltaiset tuotteet 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Właściwości elektryczne General standards Standards Cable structure Własności kabli elektrycznych Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version

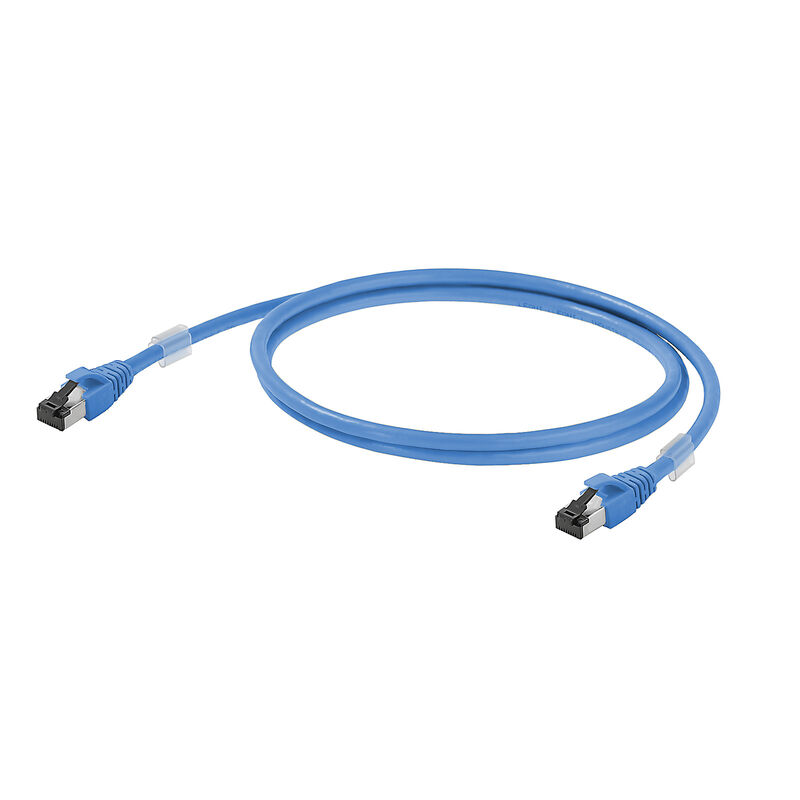

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 20 m
Order No.
1165900200
Type
IE-C6FP8LB0200M40M40-B
GTIN (EAN)
4032248956074
Qty.
1 items

Dimensions and weights

Length
20 m
Length (inches)
787.402 inch
Net weight
704 g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Właściwości elektryczne

50 °C에서 전류 전달 용량
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

응용 분야별 통신 케이블 설비
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
인증 번호(cULus)
E316369
커넥터 표준
IEC 60603-7-51

Standards

커넥터 표준
IEC 60603-7-51

Cable structure

꼬임
7
단면적
4*2*AWG 27/7 - 4*2*0.1 mm²
와이어 개수
8
와이어 쌍 차폐
Aluminium foil
와이어 코어의 배치
Twisted pair
완전 차폐
Shielding braid made from copper wiring
외피 색상
blue
외피 직경, 최대
5.9 mm
외피 직경, 최소
5.5 mm
재질 외피
LSZH
절연
PE
절연재 단면적
1.04 mm
차폐
S/FTP
차폐 편조물의 겹침
60 %
컬러 시퀀스 또는 와이어 - 와이어 쌍
white - blue, white - orange, white - green, white - brown

Własności kabli elektrycznych

Capacity at 1 kHz
46 nF/km
Characteristic impedance
100 ± 15 Ω 在 1-100 MHz
Coupling attenuation up to 1000 MHz
80 dB
Coupling resistance at 10 MHz / m
5 mΩ
Delay skew
2.5 ns/100m
Operating voltage (UL rating)
30 V AC / 42.4 V DC
Resistance differential
5 %
Separating class according to EN 50174-2
d
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
범주
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
작동 전압
50 V DC
전송 속도
10 Gbit/s

Mechanical and material properties of cable

Colour
blue
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
