IE-FM6Z2VO0010MST0ST0X

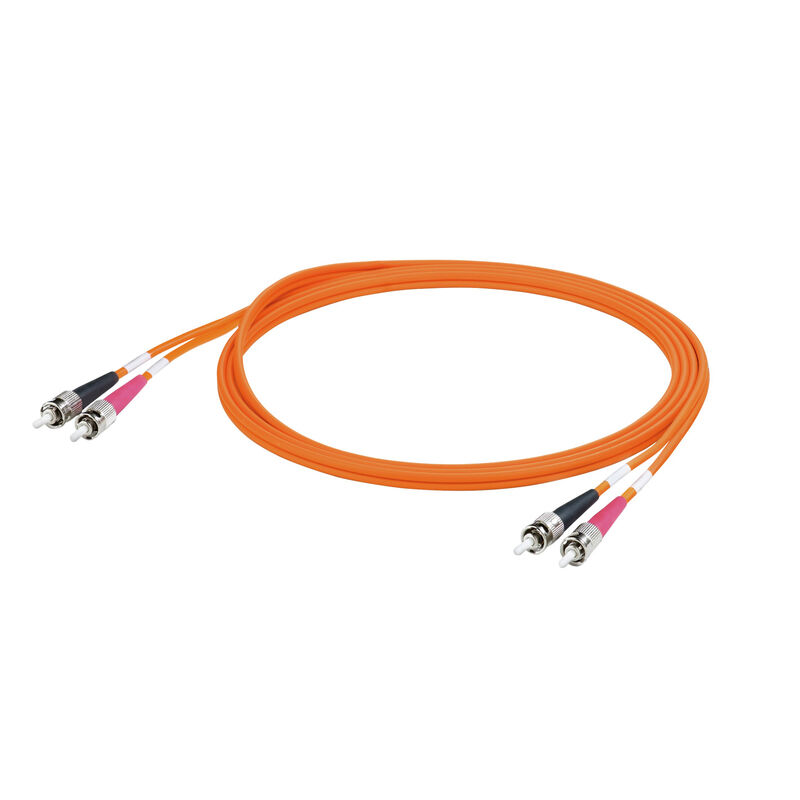

Patch cable, ST IP 20, ST IP 20, 62.5 µm, PVC, 10 m

Produkt ID 8876380100
Download datablad Produktdownloads
Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Utförande
Patch cable, ST IP 20, ST IP 20, 62.5 µm, PVC, 10 m
Art.nr.
8876380100
Type
IE-FM6Z2VO0010MST0ST0X
GTIN (EAN)
4032248609772
Qty.
1 Styk

Dimensions and weights

Längd
10 m
Length (inches)
393,701 inch
Net weight
156 g

Temperatures

Lagertemperatur
-25 °C...75 °C
Drifttemperatur
-5 °C...75 °C
Installation temperature
-5 °C...50 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
9229992a-00b9-4096-8962-200a7f33e289

General standards

Kontaktdon Norm
IEC 61754-2

Standards

Kontaktdon Norm
IEC 61754-2

Fibre-optic

Bandbredd
≥ 250 MHz*km at 850 nm
≥ 600 MHz*km at 1300 nm
Dämpning
≤ 3.2 dB/km at 850 nm
≤ 0.9 dB/km at 1300 nm
Fibertyp
GOF
Multimode
OM1

Cable structure

Kärnans diameter
62,5 µm
Kabeluppbyggnad
ZIPCORD
Manteldiameter
3*6 mm
Mantelfärg
orange
Material mantel
PVC
Normbeteckningar
I-V(ZN)Y
Primär ytbehandling
245 µm

Mechanical and material properties of cable

Halogen
yes (PVC cable)
Min. bending radius, once only
30 mm
Min. bending radius, repetitive
60 mm
Resistance to spread of flame
No

Plug

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
ST, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
ST, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
ST, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
