Özellikler

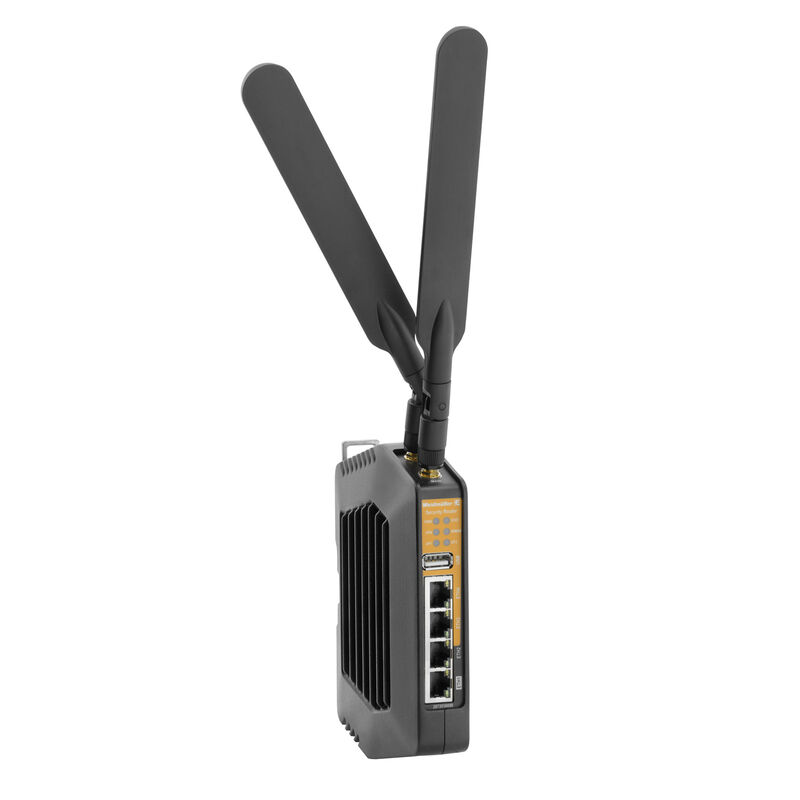

| Version | Security/NAT/VPN/U-link Router, with integrated multi-band modem (4G/3G/2G), EU-model, Gigabit Ethernet, 4x RJ45 10/100/1000BaseT(X), IP20, -25 °C...70 °C |
| Order No. | 2873920000 |
| Type | IE-SR-4GT-LTE/4G-EU |
| GTIN (EAN) | 4064675647683 |
| Qty. | 1 adet |
| Depth | 115 mm |
| Depth (inches) | 4,528 inch |
| Height | 150 mm |
| Height (inches) | 5,905 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 632 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 5 - 90 %, no condensation |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1bb4009c-24f3-4115-ab13-f6bde3580fe2 |
| Frequency band |
LTE-FDD: B1,B3,B7,B8,B20,B28
LTE-TDD: B38 B40 B41 WCDMA: B1,B5,B8 GSM/GPRS/EDGE: 850,900,1800 MHz |
| Mode of operation |
Permanent connection
Manual connection control via web interface Fallback |
| Transmission rate mobile radio |
|
| Wireless module | multi-band modem (4G/3G/2G) |
| Extended IP router | Each interface (LAN, WAN, optional 4G/LTE) can be configured as separate IP network |
| IP router |
IP routing (IPv4, Layer-3) with SPI firewall (Stateful Packet Inspection)
Static or dynamic routing Supports RIPv2 / OSPF |
| Transparent bridge | 4-port switch with additional Layer-2 filter |
| IPsec | Configurable as IPsec server or client |
| OpenVPN | Configurable as OpenVPN server or client (Layer 2 and Layer 3) |
| u-link | OpenVPN-based remote access service via the Weidmüller u-link cloud |
| EMC standards |
EN 61000-6-4
EN 61000-6-2 |
| Safety standard |
EN 62368-1
EN 62311 |
| Shock | according to IEC 60068-2-27 |
| Vibration | according to IEC 60068-2-6 |
| Humidity | 5 - 90 %, no condensation |
| Operating altitude |
|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Time interval | 3 years |
| Connector for external antennas | 2x SMA female |
| Digital inputs |
2x
galvanically isolated VPN-initiate: establishes a pre-configured VPN connection (24 V in) Cut: physically disconnects (Link Down) the WAN port (24 V in) Trigger pre-configured packet filter rules (24 V in) |
| Digital outputs |
Alarm: indicates a configurable network state or fault (24 V out)
VPN-active: indicates an active VPN connection (24 V out) 1x |
| Function reset button | Restoration of factory settings |
| LED indicator |
Power: indicates power supply status, boot-up process, firmware update process
Status: indicates system status VPN: indicates VPN tunnel status LTE/4G: indicates mobile radio connection status Port LED: Link/ACT, Speed (RJ45 port) |
| Number of ports | 4x RJ45 10/100/1000BaseT(X) |
| Number of SCM-Card slots | 1 |
| Number of SIM-Card slots | 1 |
| RJ45 ports |
10/100BaseT(X)
auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port 10/100/1000BaseT(X) |
| SCM-Card slot type |
Smart Card (ID-000 format)
Save and restore the configuration using smart card (memory chip) |
| Serial port |
1x RS-485
2-wire galvanically isolated 1 removable 3-pole terminal block |
| SIM-Card slot type | Mini-SIM (ID-000 format) |
| USB port | USB 2.0 interface for firmware update or restoration of the device configuration via USB flash drive |
| Device configuration |
Webbrowser (HTTP/HTTPS)
SNMP v1/v2c/v3 Windows tool |
| Monitoring function |
SNMP v1/v2c/v3
Syslog |
| IP-address management |
Static
DHCP-Client DHCP-Server (pool-based) |
| Security functions |
IPv4 Stateful Packet Inspection Firewall (incoming/outgoing)
NAT masquerading 1:1 NAT IP forwarding Port forwarding |
| Time synchronization management |
NTP server
NTP client |
| Connection type | 1 removable 4-pin terminal block |
| Current consumption |
|
| Reverse polarity protection | Yes |
| Voltage supply |
24 V DC
1 single input |
| Voltage supply range |
|
| Housing main material | Aluminium |
| Protection degree | IP20 |
| Speed | Gigabit Ethernet |
| Type of mounting | DIN rail |
| Standard |
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX IEEE 802.3ab for 1000BASE-T |
| Product information | For the SCM card usage please check the compatibility list for suitable router models and hardware revisions found at the SCM card IE-EBR-SMARTCARD-SR 2909820000. |
| Approval/Certificate/Document of Conformity |
[UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_291188)
[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_291189) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_292882) |
| Product Change Notification | [Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_298609) |
| Software |
[Software -- u-link VPN-Client](https://mdcop.weidmueller.com/mediadelivery/asset/900_35627)
[Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_290974) |
| User Documentation |
[u-link EULA V3 EN (28.5.2018)](https://mdcop.weidmueller.com/mediadelivery/asset/900_157684)
[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_291185) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_293617) [u-link EULA V4 EN (20.9.2023)](https://mdcop.weidmueller.com/mediadelivery/asset/900_307879) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001478 |
| ETIM 7.0 | EC001478 |
| ETIM 8.0 | EC001478 |
| ETIM 9.0 | EC001478 |
| ECLASS 9.0 | 19-17-01-03 |
| ECLASS 9.1 | 19-17-01-03 |
| ECLASS 10.0 | 19-17-04-05 |
| ECLASS 11.0 | 19-17-04-05 |
| ECLASS 12.0 | 19-17-04-05 |
| ECLASS 13.0 | 19-17-04-05 |
| Approvals |   |
| ROHS | Conform |
