Özellikler

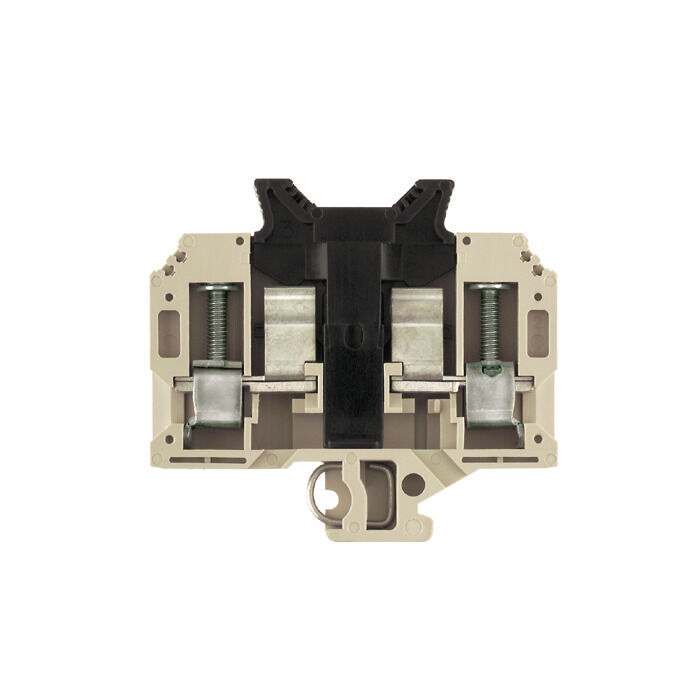

| Version | Fuse terminal, Screw connection, dark beige, 10 mm², 13 A, 440 V, Number of connections: 2, Number of levels: 1, TS 32, V-0, Wemid, G-Si. 1 x 1/4 |
| Order No. | 9509580000 |
| Type | KSKM 2/32 GZ 1X1/4 |
| GTIN (EAN) | 4008190456832 |
| Qty. | 20 adet |
| Depth | 63 mm |
| Depth (inches) | 2,48 inch |
| Height | 69 mm |
| Height (inches) | 2,717 inch |
| Width | 13 mm |
| Width (inches) | 0,512 inch |
| Net weight | 38,06 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Insulating material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
Fuse isolator One end without connector |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 2,4 Nm |
| Tightening torque, min. | 1,2 Nm |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Type of voltage for indicator | AC/DC |
| Cartridge fuse | G-Si. 1 x 1/4 |
| Fuse holder (cartridge holder) | pluggable |
| Operating voltage, max. | 250 V |
| Type of voltage for indicator | AC/DC |
| Installation advice | Direct mounting |
| Rail | TS 32 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 10 mm² |
| Rated voltage | 440 V |
| Rated DC voltage | 440 V |
| Rated current | 13 A |
| Current at maximum wires | 13 A |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 22 AWG |
| Conductor size Field wiring min. (UR) | 8 AWG |
| Current size C (UR) | 10 A |
| Voltage size C (UR) | 600 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
