Özellikler

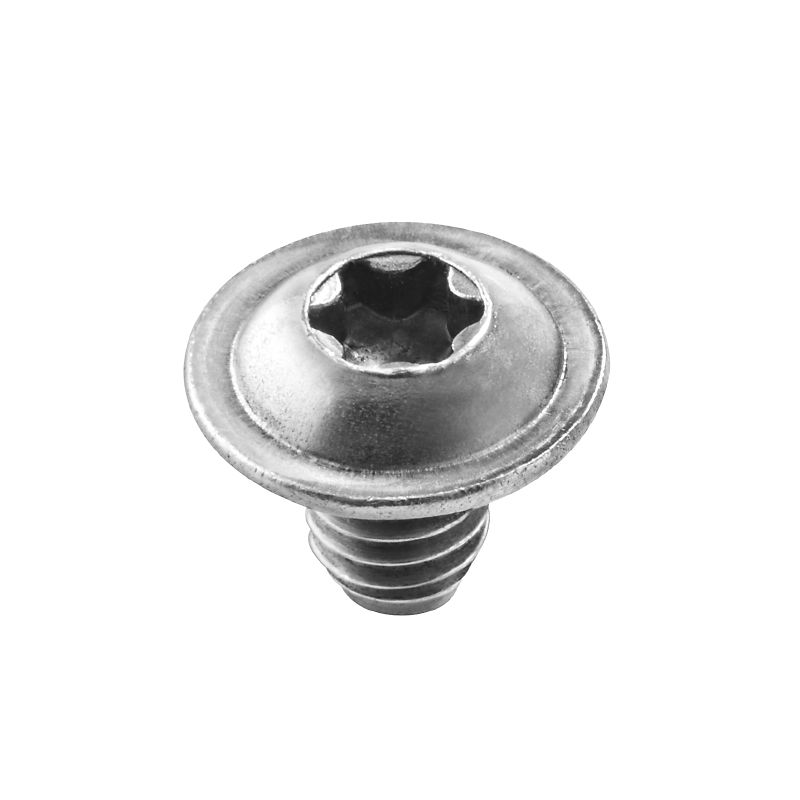

Version | Klippon TB (Terminal Box), Set of fixings, Height: 11.3 mm, Width: 13.6 mm, Depth: 13.6 mm, Material: Stainless steel, rust-proof, untreated, silver |
Order No. | 2704960000 |
Type | LKSC M6X8 A2 TX30 |
GTIN (EAN) | 4050118753196 |
Qty. | 500 adet |
Depth | 13,6 mm |
Depth (inches) | 0,535 inch |
Height | 11,3 mm |
Height (inches) | 0,445 inch |
Width | 13,6 mm |
Width (inches) | 0,535 inch |
Net weight | 0,06 g |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | Stainless steel, rust-proof |
Surface finish | untreated |
Material | Stainless steel, rust-proof |
Surface finish | untreated |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205910) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2704960000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2704960000) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC002625 |
ETIM 7.0 | EC002625 |
ETIM 8.0 | EC002625 |
ETIM 9.0 | EC002625 |
ECLASS 9.0 | 27-18-28-07 |
ECLASS 9.1 | 27-18-92-90 |
ECLASS 10.0 | 27-18-28-07 |
ECLASS 11.0 | 27-18-28-07 |
ECLASS 12.0 | 27-18-28-07 |
ECLASS 13.0 | 27-18-28-07 |
ECLASS 14.0 | 27-18-28-07 |
ROHS | Conform |
