Özellikler

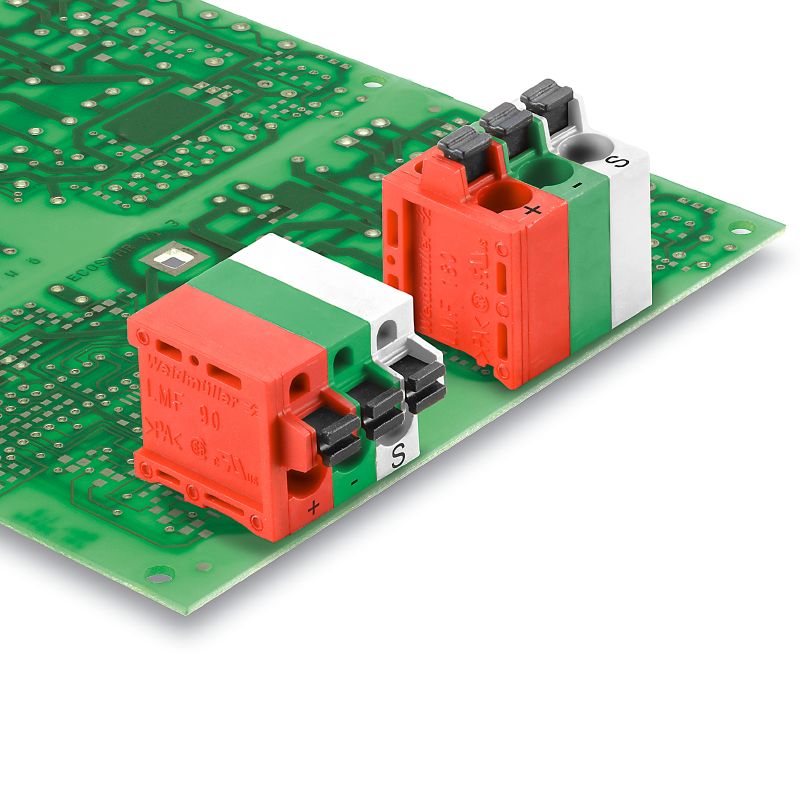

| Version | Printed circuit board terminals, 5.00 mm, Number of poles: 3, 180°, Solder pin length (l): 3.5 mm, tinned, orange, coloured, PUSH IN with actuator, Clamping range, max. : 2.5 mm², Box |
| Order No. | 2873470000 |
| Type | LMF APL 5.00/03/180 3.5SN BX |
| GTIN (EAN) | 4064675644507 |
| Qty. | 90 adet |
| Product data |
IEC: 400 V / 24 A / 0.5 - 2.5 mm² UL: 300 V / 20 A / AWG 24 - AWG 12 |
| Packaging | Box |
| Depth | 14,8 mm |
| Depth (inches) | 0,583 inch |
| Height | 22,7 mm |
| Height (inches) | 0,894 inch |
| Height of lowest version | 19,2 mm |
| Width | 17,7 mm |
| Width (inches) | 0,697 inch |
| Net weight | 0,062 g |
| Mounting onto the PCB | THT solder connection |
| Number of poles | 3 |
| Number of solder pins per pole | 2 |
| Pitch in inches (P) | 0,197 " |
| Pitch in mm (P) | 5 mm |
| Product family | OMNIMATE Signal - series LMF |
| Protection degree | IP20 |
| Side termination, characteristic | closed side |
| Solder eyelet hole diameter (D) | 1,1 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Solder pin dimensions | d = 0.8 mm |
| Solder pin length (l) | 3,5 mm |
| Soldering process |
Manual soldering
Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Insulating material | Wemid (PA) |
| Colour |
orange
coloured |
| Colour chart (similar) |
RAL 2000
- |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Coating | 4-6 μm SN |
| Tinning type | matt |
| Layer structure of solder connection | 4...6 µm Sn matt |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Packaging | Box |
| VPE length | 349 mm |
| VPE width | 141 mm |
| VPE height | 33 mm |
| Test: Durability of markings |
|
| Test: Clampable cross section |
|
| Test for damage to and accidental loosening of conductors |
|
| Pull-out test |
|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301671) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| ETIM 8.0 | EC002643 |
| ETIM 9.0 | EC002643 |
| ECLASS 9.0 | 27-44-04-01 |
| ECLASS 9.1 | 27-44-04-01 |
| ECLASS 10.0 | 27-44-04-01 |
| ECLASS 11.0 | 27-46-01-01 |
| ECLASS 12.0 | 27-46-01-01 |
| ECLASS 13.0 | 27-46-01-01 |
| Approvals |  |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
