Özellikler

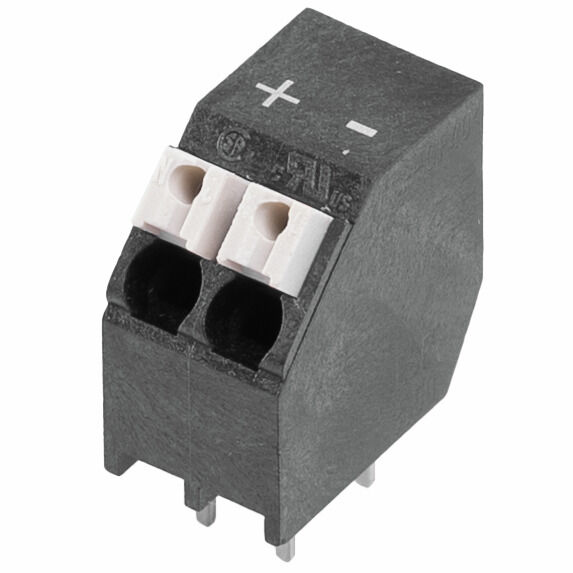

| Version | Printed circuit board terminals, block assembly, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 2, Solder pin length (l): 3.5 mm, black, Tube |
| Order No. | 3077550000 |
| Type | LSF-SMT SPE 3.50/02/135 3.5SN BK TU |
| GTIN (EAN) | 4099987081696 |
| Qty. | 71 adet |
| Packaging | Tube |
| Depth | 12,7 mm |
| Depth (inches) | 0,5 inch |
| Height | 16,4 mm |
| Height (inches) | 0,646 inch |
| Height of lowest version | 8,5 mm |
| Width | 7,7 mm |
| Width (inches) | 0,303 inch |
| Net weight | 2,995 g |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | T1-B |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 2 |
| Number of solder pins per pole | 2 |
| Performance-Category | T1-B |
| Pitch in inches (P) | 0,138 " |
| Pitch in mm (P) | 3,5 mm |
| Protection degree | IP20 |
| Side termination, characteristic | closed side |
| Solder eyelet hole diameter (D) | 1,1 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Solder pin dimensions | 0.35 x 0.8 mm |
| Solder pin dimensions = d tolerance |
|
| Solder pin length (l) | 3,5 mm |
| Solder pin length tolerance |
|
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Soldering process |
Reflow soldering
Manual soldering Wave soldering |
| Volume resistance | 1.60 mΩ |
| Insulating material | LCP GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | IIIa |
| Comparative Tracking Index (CTI) | ≥ 175 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Layer structure of solder connection | 4...6 µm Sn matt |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, min. | -30 °C |
| Temperature range, installation, max. | 120 °C |
| Packaging | Tube |
| VPE length | 0 mm |
| VPE width | 0 mm |
| VPE height | 0 mm |
| Surface resistance | Rs = 109 - 1012 Ω |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| ETIM 8.0 | EC002643 |
| ETIM 9.0 | EC002643 |
| ECLASS 9.0 | 27-44-04-01 |
| ECLASS 9.1 | 27-44-04-01 |
| ECLASS 10.0 | 27-44-04-01 |
| ECLASS 11.0 | 27-46-01-01 |
| ECLASS 12.0 | 27-46-01-01 |
| ECLASS 13.0 | 27-46-01-01 |
| ECLASS 14.0 | 27-46-01-01 |
| ROHS | Conform |
