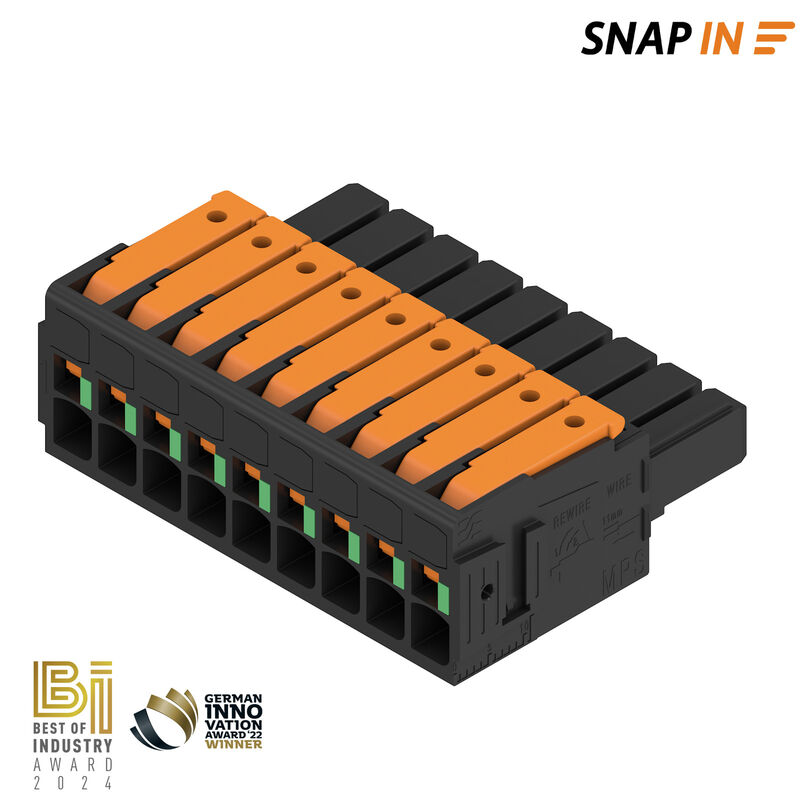

MPS 6/09 S TN B B
Product image

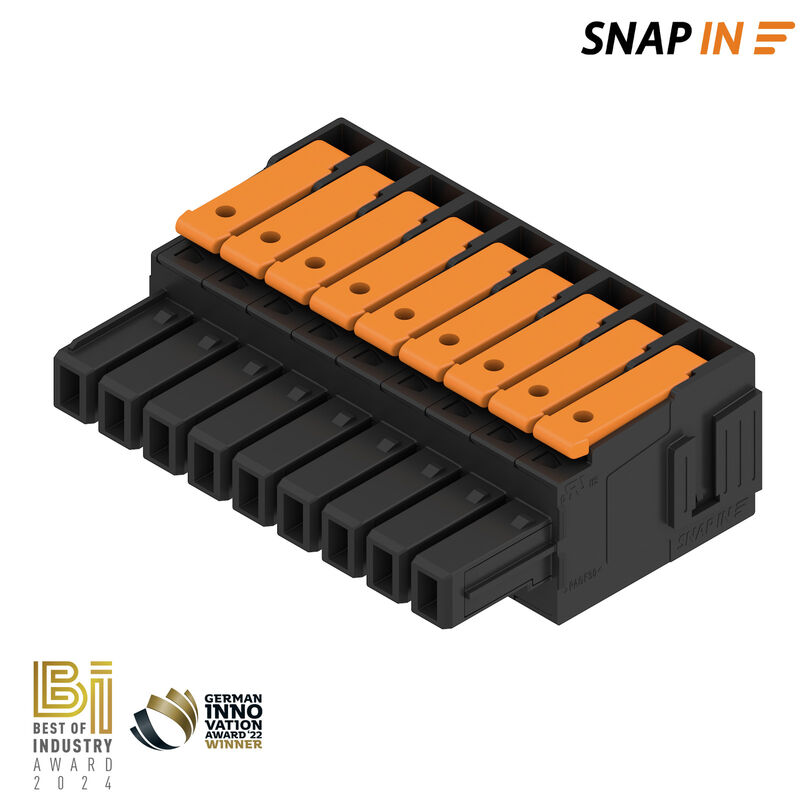

MPS 6/09 S TN B B
Product image
MPS 6/09 S TN B B
Dimensional drawing

MPS 6/09 S TN B B

PCB plug-in connector, female plug, Pitch in mm (P): 6.35 mm, Number of poles: 9, 180°, Box

Produkt-ID 3106850000
Ladda ner datablad Soutien à l'ingénierie Téléchargements de produits
Produkty pokrewne 8
General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Important note Product images Classifications

General ordering data

Version
PCB plug-in connector, female plug, Pitch in mm (P): 6.35 mm, Number of poles: 9, 180°, Box
Order No.
3106850000
Type
MPS 6/09 S TN B B
GTIN (EAN)
4099987171120
Qty.
32 Stück
제품 데이터
IEC: 1000 V / 40.3 A / 0.75 - 6 mm²
UL: 600 V / 30 A / AWG 20 - AWG 10
Packaging
Box

Dimensions and weights

Depth
43 mm
Depth (inches)
1,693 inch
Height
20,5 mm
Height (inches)
0,807 inch
Width
59,95 mm
Šířka (v palcích)
2,36 inch
Net weight
43,116 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE 4.0
Type of connection
Field connection
Wire connection method
SNAP IN s páčkou
Pitch in mm (P)
6,35 mm
Pitch in inches (P)
0,25 "
Conductor outlet direction
180°
Number of poles
9
L1 in mm
50,8 mm
L1 in inches
2 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Schutzart
IP20
Volume resistance
≤5 mΩ
Abisolierlänge
11 mm
Steckzyklen
≥ 25
Steckkraft/Pol, max.
11,25 N
Ziehkraft/Pol, max.
10 N

Material data

Insulating material
PBT GF
PA 9T
Colour
black
Colour of operational elements
orange
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
Moisture Level (MSL)
1
Brännbarhetsklass enligt UL 94
V-0
Contact material
Cu-alloy
Contact surface
verzinnt
Lagertemperatur, min.
−40 °C
Lagertemperatur, max.
70 °C
Betriebstemperatur, min.
−50 °C
Betriebstemperatur, max.
125 °C

Conductors suitable for connection

Clamping range, min.
0,5 mm²
Clamping range, max.
4 mm²
Solid, min. H05(07) V-U
0,75 mm²
Solid, max. H05(07) V-U
4 mm²
Flexible, min. H05(07) V-K
0,75 mm²
Flexible, max. H05(07) V-K
6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
4 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,75 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
4 mm²

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
40,3 A
Rated current, max. number of poles (Tu=20°C)
40,4 A
Rated current, min. number of poles (Tu=40°C)
36,3 A
Rated current, max. number of poles (Tu=40°C)
36,3 A
Rated voltage for surge voltage class / pollution degree II/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/3
800 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
8 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
1 000 V
Rated current (Use group B / UL 1059)
30 A
Rated current (Use group C / UL 1059)
30 A
Rated current (Use group D / UL 1059)
5 A
Wire cross-section, AWG, min.
AWG 20
Leiteranschlussquerschnitt AWG, max.
AWG 10

Important note

Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Product images

Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
