Özellikler
| Version | SUB-D |
| Order No. | 1140640000 |

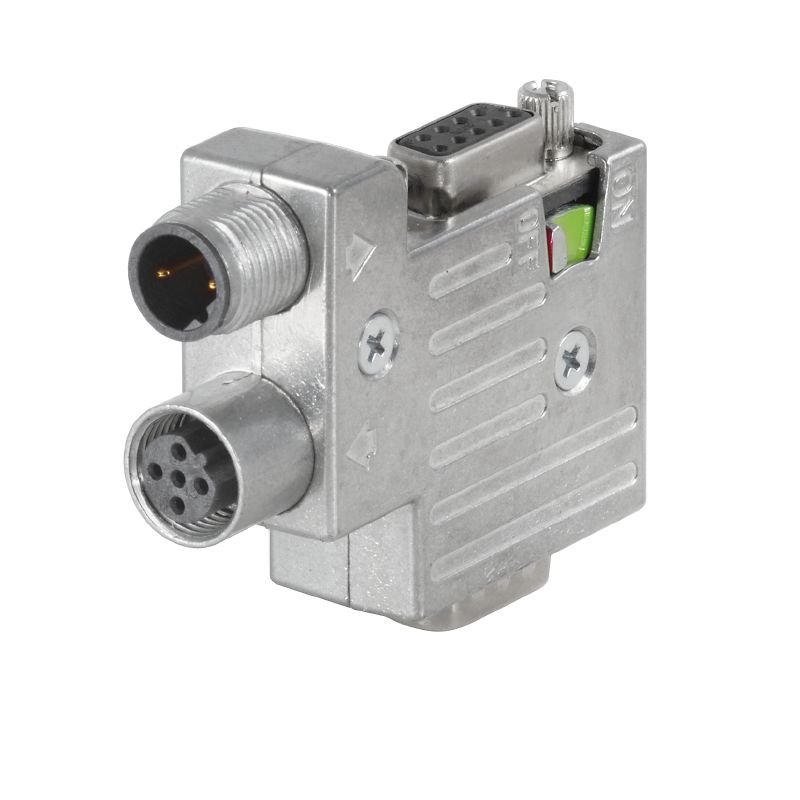

| Type | PB-DP SUB-D M12 TERM PS |
| GTIN (EAN) | 4032248922611 |
| Qty. | 1 adet |
| Depth | 16,8 mm |
| Depth (inches) | 0,661 inch |
| Height | 58,8 mm |
| Height (inches) | 2,315 inch |
| Width | 49 mm |
| Width (inches) | 1,929 inch |
| Net weight | 71,8 g |
| Humidity | Max. 75% at +25°C, non-condensing |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3cc1d9b1-0f2a-47ed-a501-ddcfcfaaf625 |
| BUS interface |
D-Sub 9-pole
Pin |
| BUS PG interface |
D-Sub 9-pole
Socket |
| BUS, cable interface | M12 B-coded male and female connector, pins 2 and 4 assigned |
| Data rate | 12 MBit/s |
| Housing main material | ZnAl |
| Humidity | Max. 75% at +25°C, non-condensing |
| Interlock | UNC4-40 |
| Outgoing elbow | 90° |
| Plug-in connector and pin assignment | In accordance with the PROFIBUS specification |
| Plugging cycles | ≥ 200 |
| Programming interface | Yes |
| Protection degree | IP30 |
| Temperature range of housing | -20...+70 ° C |
| Terminating resistor available | Yes |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001132 |
| ETIM 7.0 | EC001132 |
| ETIM 8.0 | EC001132 |
| ETIM 9.0 | EC001132 |
| ECLASS 9.0 | 27-44-03-02 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-02 |
| ECLASS 11.0 | 27-44-03-02 |
| ECLASS 12.0 | 27-44-03-02 |
| ECLASS 13.0 | 27-44-03-02 |
| ROHS | Conform |
