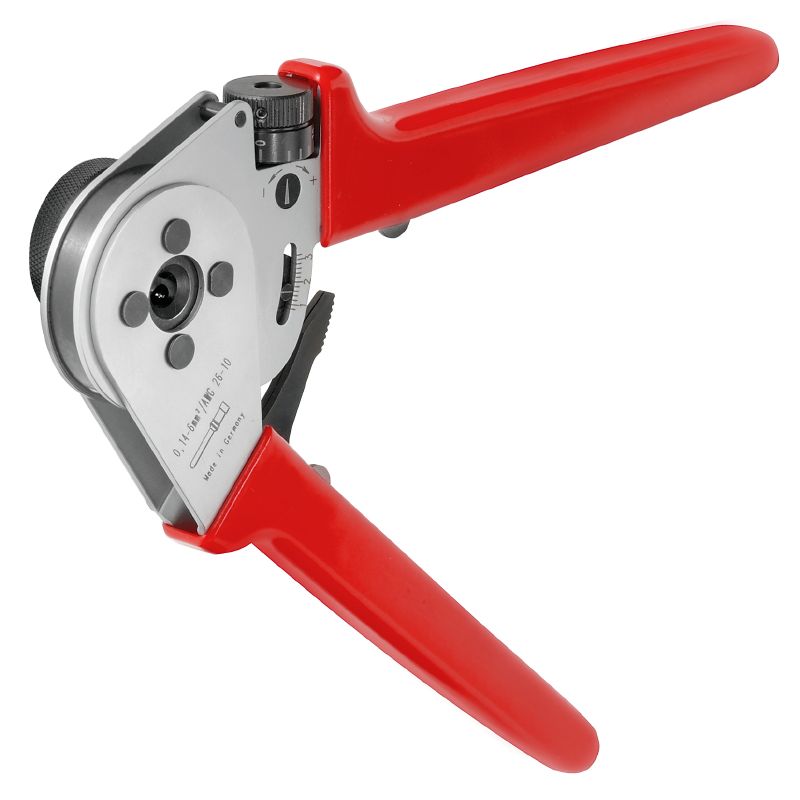

SAI M23 CRIMPING TOOL 1

SAI M23 CRIMPING TOOL 1

Pressione utensile per i contatti di segnale e di potenza, 4-Indent-Crimp

Ürün No. 1203840000
Veri sayfasını indir Product Downloads
Aksesuarlar 6 aksesuarıdır 16 İlgili ürünler 2
Dati generali per l’ordinazione Dimensions and weights Environmental Product Compliance Technische Daten Kontaktbeschreibung Datos de herramienta para prensar Klasyfikacje

Dati generali per l’ordinazione

Ausfuehrung
Pressione utensile per i contatti di segnale e di potenza, 4-Indent-Crimp
Best.-Nr.
1203840000
Art
SAI M23 CRIMPING TOOL 1
GTIN (EAN)
4032248986934
Qty.
1 Styk

Dimensions and weights

Länge
230 mm
Length (inches)
9,055 inch
Net weight
1.146 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
7baf363e-d867-435e-844e-c01f32ebf146

Technische Daten

Ausführung
mechanisch, ohne auswechselbare Einsätze

Kontaktbeschreibung

Conductor cross-section, max. AWG
AWG 10
Conductor cross-section, min. AWG
AWG 26
Type of contact
Contacts décolletés

Datos de herramienta para prensar

Krimpování - typ/profil
4-indent crimp
Wire end ferrules cross-section, max.
4 mm²
Wire end ferrules cross-section, min.
0,25 mm²

Klasyfikacje

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
