Özellikler
| Version | Sensor/Actuator plug-in connector, Built-in plugs, Empty enclosure |
| Order No. | 1170330000 |

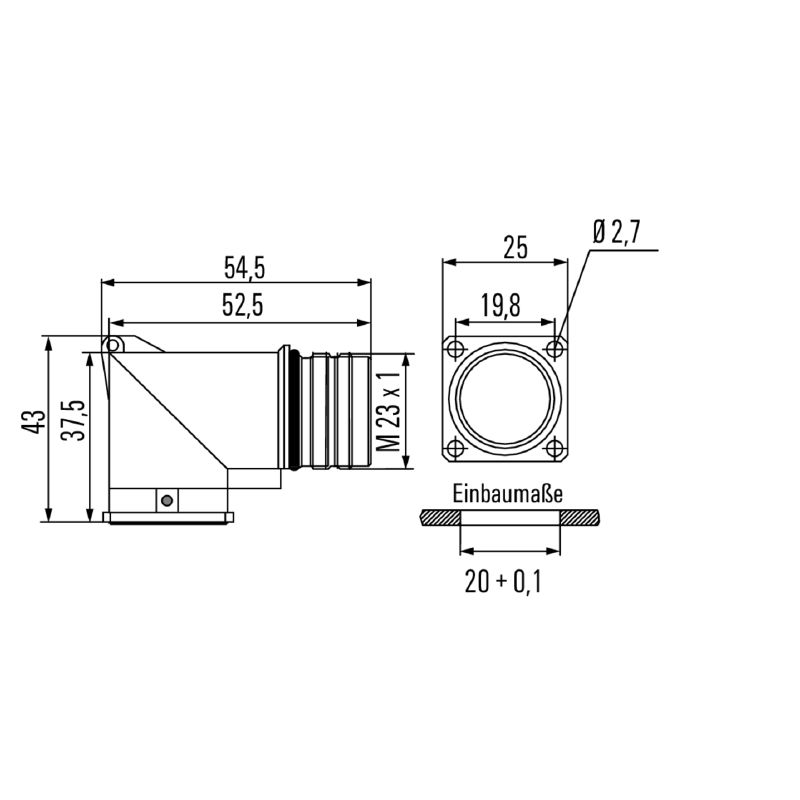

| Type | SAIE-M23-L-W 25X25 |
| GTIN (EAN) | 4032248962273 |
| Qty. | 1 adet |
| Net weight | 68 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Housing main material | Copper-zinc alloy |
| Pollution severity | 3 |
| Protection degree |
IP67
IP69K |
| Shield connection | Yes |
| Temperature range of housing | -40…+125 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188497) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1170330000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC003556 |
| ETIM 8.0 | EC003556 |
| ETIM 9.0 | EC003556 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-24 |
| ECLASS 11.0 | 27-44-02-24 |
| ECLASS 12.0 | 27-44-02-24 |
| ECLASS 13.0 | 27-44-02-24 |
| ECLASS 14.0 | 27-44-02-24 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:1170380000Ambalaj birimi:1 adet
Sensor/Actuator plug-in connector, Insert
-
Ürün No.:1170370000Ambalaj birimi:1 adet
Sensor/Actuator plug-in connector, Insert
-
Ürün No.:1995810000Ambalaj birimi:1 adet
Sensor/Actuator plug-in connector, Insert
-
Ürün No.:1170350000Ambalaj birimi:1 adet
Sensor/Actuator plug-in connector, Insert
ConnectorsCircular ConnectorsM23 connectorsPowerInserts without contacts
