SV 7.62HP/11/270F 3.5SN BK BX

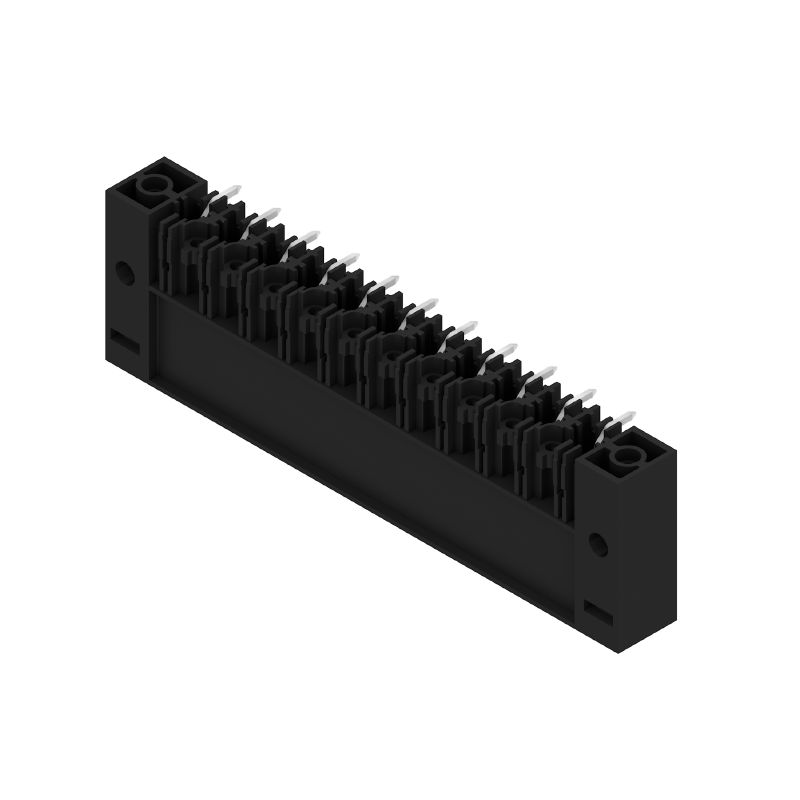

Product image
SV 7.62HP/11/270F 3.5SN BK BX
Product image
SV 7.62HP/11/270F 3.5SN BK BX
Dimensional drawing

SV 7.62HP/11/270F 3.5SN BK BX

PCB plug-in connector, male header, Clip-on flange, THT solder connection, 7.62 mm, Number of poles: 11, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box

Item No. 1931460000
Download data sheet Engineering Support Product Downloads
Accessories 1 Is counterpart of 1 Related products 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Utförande
PCB plug-in connector, male header, Clip-on flange, THT solder connection, 7.62 mm, Number of poles: 11, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box
Art.nr.
1931460000
Typ
SV 7.62HP/11/270F 3.5SN BK BX
GTIN (EAN)
4032248581498
Qty.
18 items
Product data
IEC: 1000 V / 57 A
UL: 300 V / 40.5 A
Packaging
Box

Dimensions and weights

Djup
28,3 mm
Depth (inches)
1,114 inch
Höjd
14,9 mm
Height (inches)
0,587 inch
Height of lowest version
11,4 mm
Bredd
99,06 mm
Width (inches)
3,9 inch
Net weight
21,714 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Famille de produits
OMNIMATE Power - series BV/SV 7.62HP
Tipo di collegamento
Board connection
montaż na płytce drukowanej
THT solder connection
Raster w mm (P)
7,62 mm
Raster w calach (P)
0,3 "
kąt odejścia
270°
Numero di poli
11
Numero di codoli a saldare per polo
2
솔더 핀 길이(l)
3,5 mm
Tolerancja długości kołka lutowniczego
+0.1 / -0.3 mm
Размеры выводов под пайку
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
76,2 mm
L1 in inches
3 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
when fully mounted
Volume resistance
2.00 mΩ
Can be coded
Yes
Plugging cycles
25

Material data

Insulating material
PA GF
Färgkod
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
57 A
Rated current, max. number of poles (Tu=20°C)
41 A
Rated current, min. number of poles (Tu=40°C)
41 A
Rated current, max. number of poles (Tu=40°C)
41 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 420 A
Clearance, min.
6,9 mm
Creepage distance, min.
9,6 mm

Rated data acc. to CSA

Instytut (CSA)
CSA
Nr certyfikatu (CSA)
200039-1121690
Napięcie znamionowe (grupa użytkowa B / CSA)
300 V
Napięcie znamionowe (grupa użytkowa C / CSA)
300 V
Napięcie znamionowe (grupa użytkowa D / CSA)
600 V
Rated current (Use group B / CSA)
35 A
Prąd znamionowy (grupa użytkowa C / CSA)
35 A
Prąd znamionowy (grupa użytkowa D / CSA)
5 A
Ссылка на утвержденные значения
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Istituto (cURus)
CURUS
인증 번호(cURus)
E60693
정격 전압(사용 그룹 B / UL 1059)
300 V
Napięcie znamionowe (grupa użytkowa C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
744 V
Rated current (Use group B / UL 1059)
40,5 A
Номинальный ток (группа использования C/UL 1059)
40,5 A
Rated current (Use group D / UL 1059)
5 A
Rated current (Use group F / UL 1059)
40,5 A
Creepage distance, min.
9,6 mm
Distancia en el aire, mín.
6,9 mm
승인값 참조
Specifications are maximum values, details - see approval certificate.

Packing

opakowanie
Box
Długość VPE
350 mm
Szerokość VPE
135 mm
Wysokość VPE
40 mm

Important note

IPC-konformitet
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Diameter of solder eyelet D = 1.4+0.1 mm starting with 8-pole
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
