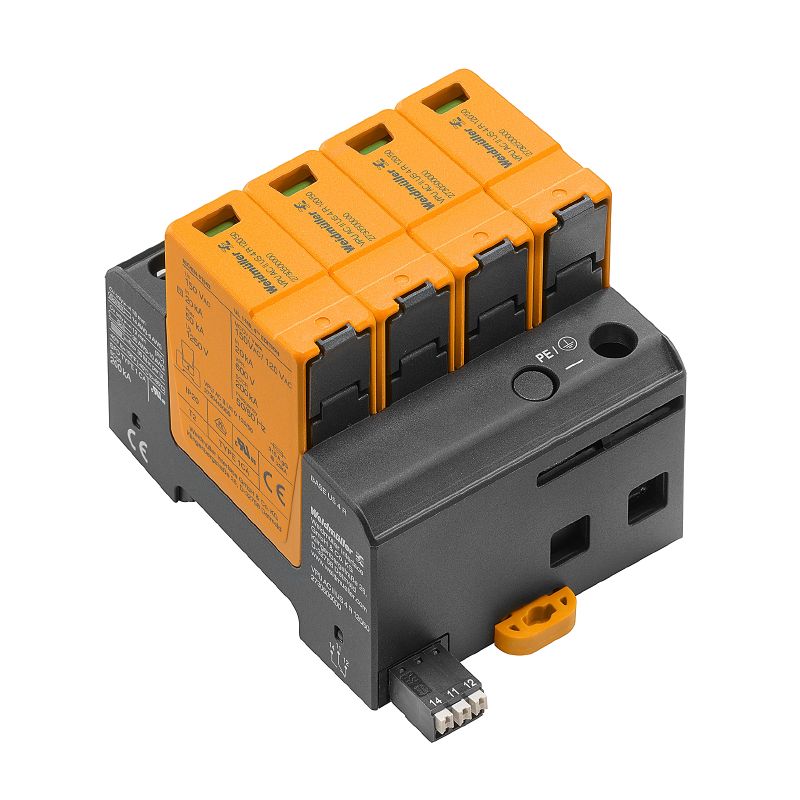

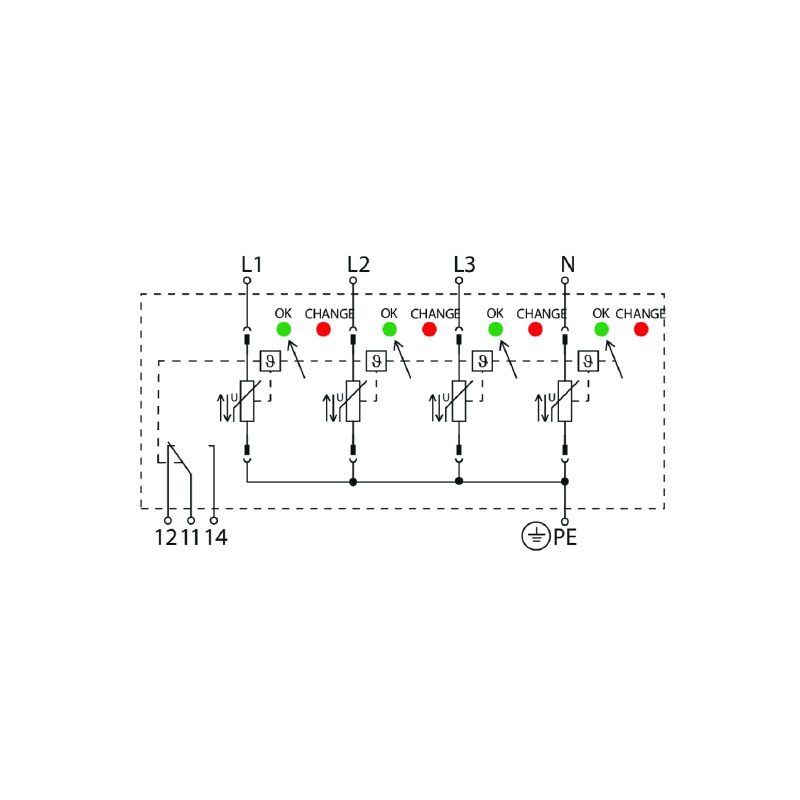

VPU AC II US 4 R 120/50

Surge voltage arrester, Low voltage, Surge protection II, TN-C-S, TN-S

Ürün No. 2730500000

Version	Surge voltage arrester, Low voltage, Surge protection II, TN-C-S, TN-S
Order No.	2730500000
Type	VPU AC II US 4 R 120/50
GTIN (EAN)	4050118807608
Qty.	1 adet

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Ambient temperature (operational), max.	85 °C
Rated Voltage U_N	120 V
VPR (N-PE)	600 V
MCOV (L-PE)	150 V
MCOV (N-PE)	150 V
SCCR	200 kA
I_n	20 kA
Category	SPD TYPE 1
Connection cross-section AWG, min.	AWG 14
Connection cross-section AWG, max.	AWG 6
Ambient temperature (operational), min.	-40 °C
MODE	all modes
VPR (L-L)	1.000 V
VPR (L-N)	1.000 V
VPR (L-PE)	600 V
Voltage type	AC
UL Energy Networks	3-phase WYE

Connection type	PUSH IN
Cross-section for connected wire, solid core, max.	1,5 mm²
Cross-section for connected wire, solid core, max. (AWG)	AWG 10
Cross-section for connected wire, solid core, min.	0,14 mm²
Cross-section for connected wire, solid core, min. (AWG)	AWG 30
Stripping length	12 mm

Colour	orange black
Design	Installation housing; 4TE Insta IP 20
Operating altitude	≤ 4000 m
Optical function display	green = OK; red = arrester is defective - replace
Protection degree	IP20 in installed state
Rail	TS 35
Segment	Power distribution
UL 94 flammability rating	V-0
Version	Surge protection II

Pollution severity	2
Surge voltage category	III

Discharge current I_max (8/20µs) N-PE	50 kA
Discharge current I_max (8/20µs) wire-PE	50 kA
Discharge current I_n (8/20µs) N-PE	40 kA
Discharge current I_n (8/20µs) wire-PE	20 kA
Energy coordination (≤10 m)	Type II Type III
Follow-on current extinguishing capability I_fi	Follow current need not be taken into account
Frequency range, max.	60 Hz
Frequency range, min.	50 Hz
Fuse	No Fuse neccessary ≤315 A gG 250 A gG @50 kA Isccr 315 A gG @25 kA Isccr
Leakage current at U_n	0,7 mA
Low voltage network	TN-C-S TN-S
Mains voltage	120 V / 240 V
Max. continuous voltage, Uc (AC)	150 V
Number of poles	4
Protection level U_p at I_N (L/N-PE)	≤ 1.25 kV
Protection level U_p at I_N (N-PE)	≤ 1.25 kV
Rated voltage (AC)	120 V
Requirements category acc. to IEC 61643-11	Type II
Requirements class, acc. to EN 61643-11	T2
Response time	≤ 25 ns
Short-circuit current rating I_SCCR	50 kA
Signalling contact	250 V 1A 1CO
SPD type	T2
Standards	IEC 61643-11 EN 61643-11 UL 1449 NFPA 79
Temporary surge voltage (over-voltage) - TOV	229 V
Voltage type	AC

Stripping length	18 mm
Wire connection method	Screw connection
Type of connection	Screw connection
Stripping length, rated connection	18 mm
Tightening torque, min.	2 Nm
Tightening torque, max.	4,5 Nm
Clamping range, rated connection	16 mm²
Clamping range, min.	1,5 mm²
Clamping range, max.	35 mm²
Wire connection cross section AWG, min.	AWG 14
Wire connection cross section AWG, max.	AWG 6
Wire cross-section, solid, min.	2,5 mm²
Wire cross-section, solid, max.	35 mm²
Wire connection cross section, finely stranded, min.	1,5 mm²
Wire connection cross section, finely stranded, max.	35 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	35 mm²
Connection cross-section, stranded, min.	2,5 mm²
Connection cross-section, stranded, max.	35 mm²

Voltage type

Certificate no. (cULus)

E354261

Time interval

5 years

Approval/Certificate/Document of Conformity	[EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_157364)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_154509)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2730500000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2730500000)
User Documentation	[Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_188076)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E354261
