Tämä tuote ei ole enää saatavana.

OMNIMATE Data - D-SUB connector, male header, Thread-nut UNC 4-40, THT solder connection, Pitch in mm (P): 2.77 mm, Number of poles: 9, ≥ 50 µ" Ni / 100 µ" Sn , 500, PBT GF, black, Tray

Tuotteen tunnus 2724030000
Lataa tietosivu Tekninen tuki
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Material data Packing Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
OMNIMATE Data - D-SUB connector, male header, Thread-nut UNC 4-40, THT solder connection, Pitch in mm (P): 2.77 mm, Number of poles: 9, ≥ 50 µ" Ni / 100 µ" Sn , 500, PBT GF, black, Tray
Order No.
2724030000
Type
D-SUB M6.3 T09HU 3.2B4 TY BK
GTIN (EAN)
4050118809725
Qty.
90 items
Packaging
Tray
Delivery status
Discontinued
Available until
31.08.2024

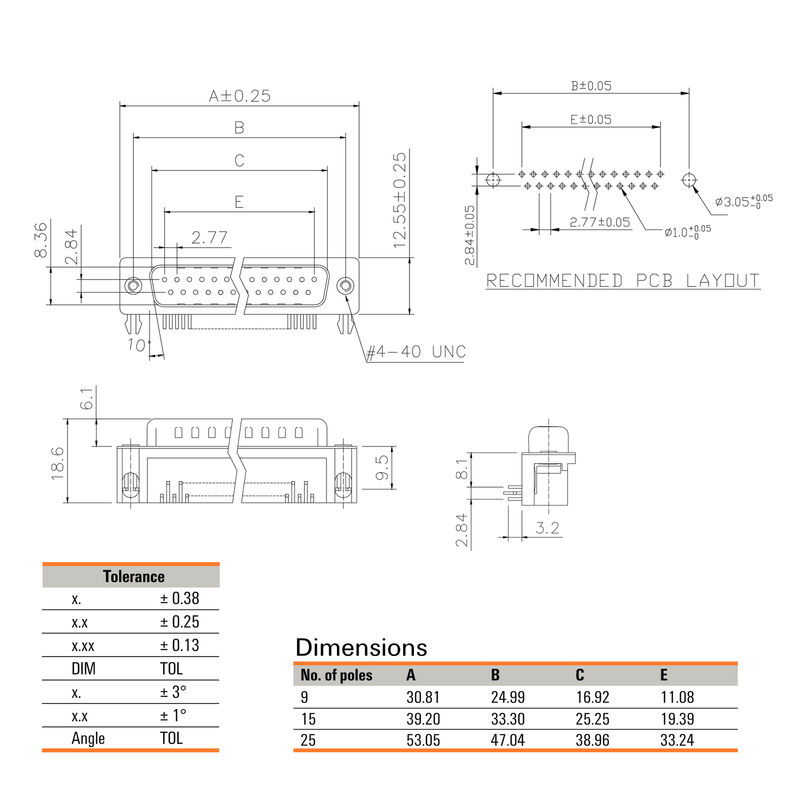

Dimensions and weights

Depth
18,6 mm
Depth (inches)
0,732 inch
Height
12,55 mm
Height (inches)
0,494 inch
Width
30,81 mm
Width (inches)
1,213 inch
Net weight
8,889 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Cierre de página, propiedad
Thread-nut UNC 4-40
Cycles d'enfichage
500
Famille de produits
OMNIMATE Data - D-SUB connector
Kimenő könyök
90°
Mounting onto the PCB
THT solder connection
Nombre de pôles
9
Pas en mm (P)
2,77 mm
Rozteč v palcích (P)
0,109 "
Shielding material
Steel
Solder pin length (l)
3,2 mm
Superficie di schermatura
tinned
Type de raccordement
Solder connection
솔더링 프로세스
Manual soldering
Wave soldering
솔더핀 위치의 공차
± 0.1 mm
솔더핀 크기
Octagonal

Electrical properties

Dielectric strength, contact / contact
1000 V AC
Insulation resistance
≥ 1000 MΩ
Номинальное напряжение
250 V
Номинальный ток
3 A

Material data

Insulating material
PBT GF
Colour
black
Colour chart (similar)
RAL 9011
Insulation resistance
≥ 1000 MΩ
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
Gold over nickel
Layer structure of solder connection
≥ 50 µ" Ni / 100 µ" Sn
Layer structure of plug contact
≥ 50 µ" Ni / 30 µ" Au
−55 °C
Operating temperature, max.
105 °C

Packing

Packaging
Tray
VPE length
305 mm
VPE width
202 mm
VPE height
25 mm

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
