SAIL-M12WM12W-4-10V
SAIL-M12WM12W-4-10V
Dimensioned drawing
Male, angled
SAIL-M12WM12W-4-10V
Dimensioned drawing
Angled socket
SAIL-M12WM12W-4-10V
Pole scheme
M12 = A-coded
SAIL-M12WM12W-4-10V
Pole scheme
M12 = A-coded
SAIL-M12WM12W-4-10V
Wiring diagram

SAIL-M12WM12W-4-10V

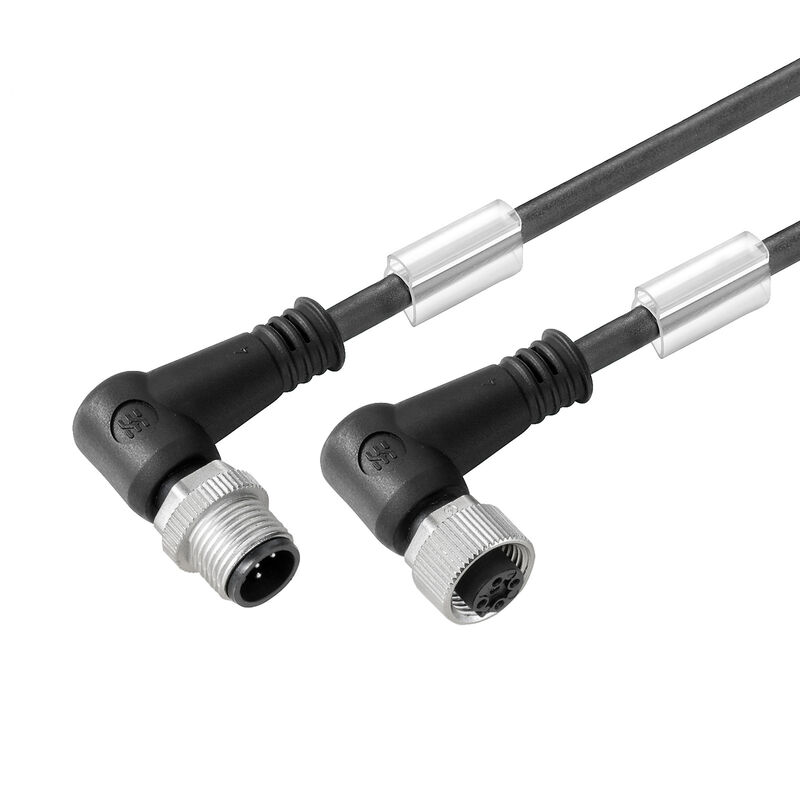

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1925391000
Download datablad Product Downloads Engineering Support
Tilbehør 7 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1925391000
Type
SAIL-M12WM12W-4-10V
GTIN (EAN)
4032248569960
Qty.
1 Styk

Dimensions and weights

Net weight
432,97 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Délka kabelu
10 m
Halogène
Yes
Isolamento
PVC
Konfigurowalna długość kabla
Yes
Mantelfarbe
black
Number of poles
4
Outside diameter
5.3 mm ± 0.2 mm
Sección del conductor
0,34 mm²
Suitable for cable carriers
No
Säker mot svetsstänk
No
Temperature range, moving
-5...80 °C
árnyékolt
No
Диапазон температур, стацион.
-30...80 °C
Наружная оболочка в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
2464 (80 °C / 300 V)
Облучение с перекрестными связями
No
Прочность при кручении
0 °/m
Стойкость к сварочным искрам
No
Цветовая кодировка
brown
white
blue
black
외피 재질
PVC

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90° - socket 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
