SPW ECO 3CO

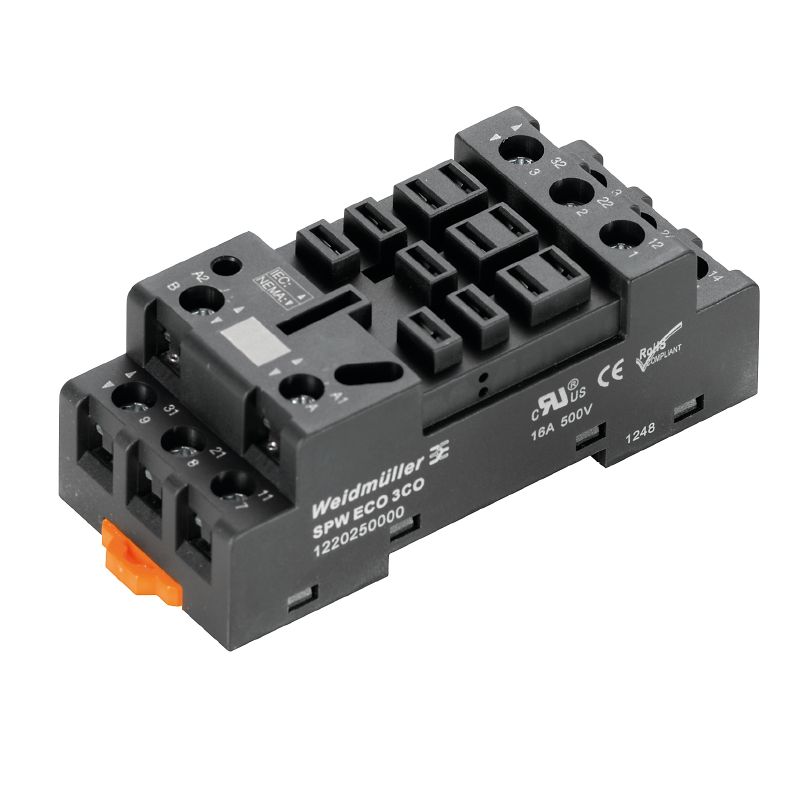

Produktillustration
Avbildning liknande
SPW ECO 3CO

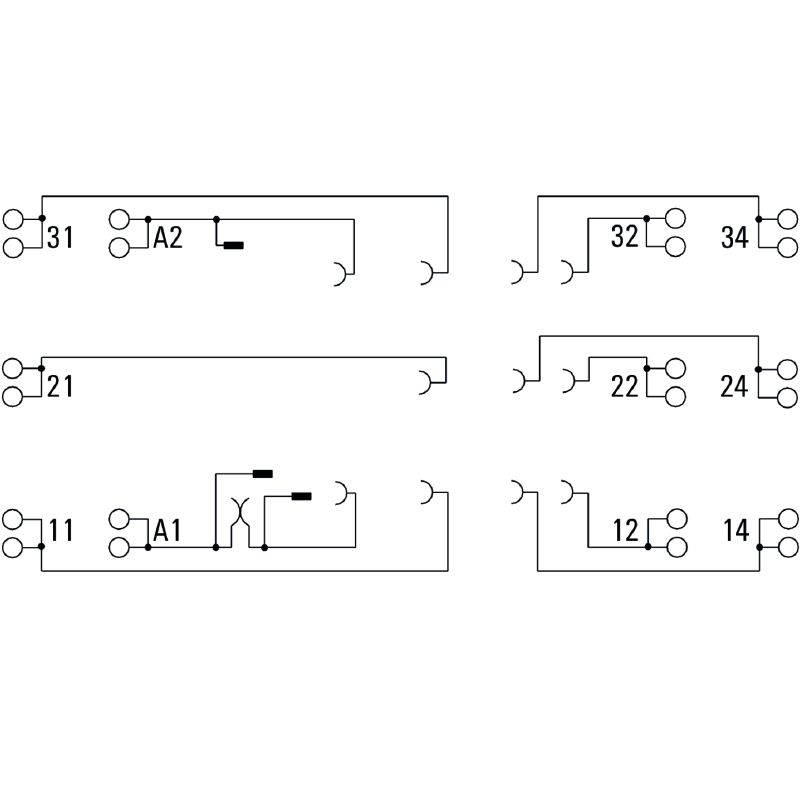

Schéma připojení
SPW ECO 3CO
Diagramm
Dimensional drawing

SPW ECO 3CO

D-SERIES DRW / DRH, Relay socket, Number of contacts: 3, CO contact, Continuous current: 16 A, Screw connection

Ürün No. 1220250000
Konfigüratörde aç
Veri sayfasını indir 엔지니어링 지원 제품 다운로드
Aksesuarlar 6 aksesuarıdır 56 Şunun karşı parçasıdır 56 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Load side General data Insulation coordination 인증/표준의 추가 세부 사항 Connection data Important note Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E312083

General ordering data

Version
D-SERIES DRW / DRH, Relay socket, Number of contacts: 3, CO contact, Continuous current: 16 A, Screw connection
Order No.
1220250000
Type
SPW ECO 3CO
GTIN (EAN)
4032248100101
Qty.
10 Styk

Dimensions and weights

Depth
31 mm
Depth (inches)
1,22 inch
Height
92,1 mm
Height (inches)
3,626 inch
Width
38,7 mm
Width (inches)
1,524 inch
Net weight
64,1 g

Temperatures

Storage temperature
-40 °C...60 °C
Ambient temperature
-40 °C…60 °C
Humidity
5...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)
E312083

Load side

Rated switching voltage
500 V AC
Continuous current
16 A
Schaltspannung AC, max.
500 V
Contact type
3 CO contact

General data

Mounting rail
TS 35
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-2
  • Component:
    Mounting foot
  • UL94 flammability rating:
    HB
  • Component:
    Retaining clip
  • UL94 flammability rating:
    HB

Insulation coordination

Rated voltage
500 V
Pollution severity
2
Surge voltage category
II
Insulating material group
IIIb
Dielectric strength for control side - load side
4 kVeff / 1 min
Dielectric strength of neighbouring contacts
4 kVeff / 1 min
Impulse withstand voltage
7.3 kV (1.2/50 µs)
Protection degree
IP10

인증/표준의 추가 세부 사항

Certificate No. (cURus)
E312083

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8 mm
Tightening torque, min.
0,5 Nm
Tightening torque, max.
1,2 Nm
Clamping range, min.
0,5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
4 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/4, min.
0,5 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, max.
1,5 mm²
컨덕터 단면, 연선, AEH(DIN 46228-1), 최소
0,5 mm²
컨덕터 단면, 연선, AEH(DIN 46228-1), 최대
2,5 mm²
Ledaranslutning
M4 forked cable lug (insulated)
Blade size
Gr. PH2

Important note

Product information
For this socket, a cross connection is not available.

For this socket, markers are not available.



Product images

Classifications

ETIM 8.0
EC001456
ETIM 9.0
EC001456
ETIM 10.0
EC001456
ECLASS 14.0
27-37-16-03
ECLASS 15.0
27-37-16-03
