WAP WTL6/1 EN VGR

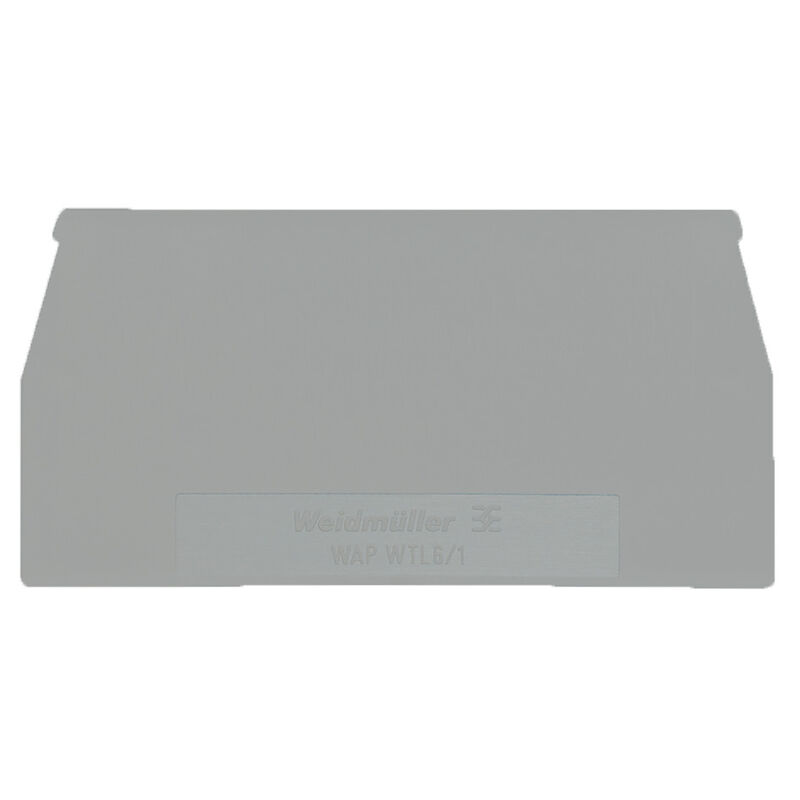

Изображение изделия

WAP WTL6/1 EN VGR

Abschlussplatte für Klemmen, verkehrsgrau, Höhe: 65 mm, Breite: 1.5 mm, V-0, Wemid, rastbar: Ja

Product ID 1349140000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 417
Omologazioni Allgemeine Bestelldaten Dimensions and weights Temperatures Environmental Product Compliance Material data Systemkennwerte Additional technical data General Product images Besorolások

Omologazioni

ROHS
Conforme

Allgemeine Bestelldaten

Version
Abschlussplatte für Klemmen, verkehrsgrau, Höhe: 65 mm, Breite: 1.5 mm, V-0, Wemid, rastbar: Ja
Order No.
1349140000
Type
WAP WTL6/1 EN VGR
GTIN (EAN)
4050118153606
Qty.
20 items

Dimensions and weights

Depth
34,5 mm
Depth (inches)
1,358 inch
Height
65 mm
Height (inches)
2,559 inch
Width
1,5 mm
Larghezza (pollici)
0,059 inch
Net weight
3,882 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Температура окружающей среды
-50 °C…75 °C
연속 작동 온도, 최소
-50 °C
długotrwała temperatura użytkowa, maks.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC superiori a 0,1 wt%
Product Carbon Footprint
  • Vagga till grind:
    0.03 kg CO2 eq.

Material data

Materiał podstawowy
Wemid
Colour
Traffic 회색(RAL)
UL 94 가연성 등급
V-0

Systemkennwerte

Versione
End plate

Additional technical data

zatrzaskowe
Yes
Указание по установке
Feed-through (bushing)
Direct mounting

General

Einbauhinweis
Feed-through (bushing)
Direct mounting

Product images

Besorolások

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
