MPS 7S/03-5/04 S TN B B

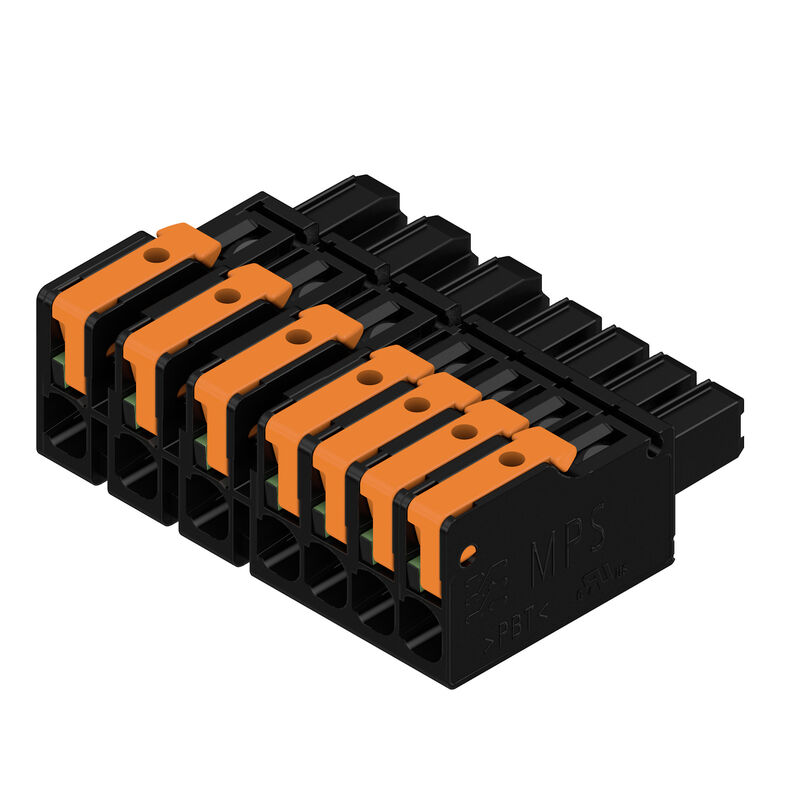

Product image
MPS 7S/03-5/04 S TN B B
Product image
MPS 7S/03-5/04 S TN B B
MPS 7S/03-5/04 S TN B B
Product benefits

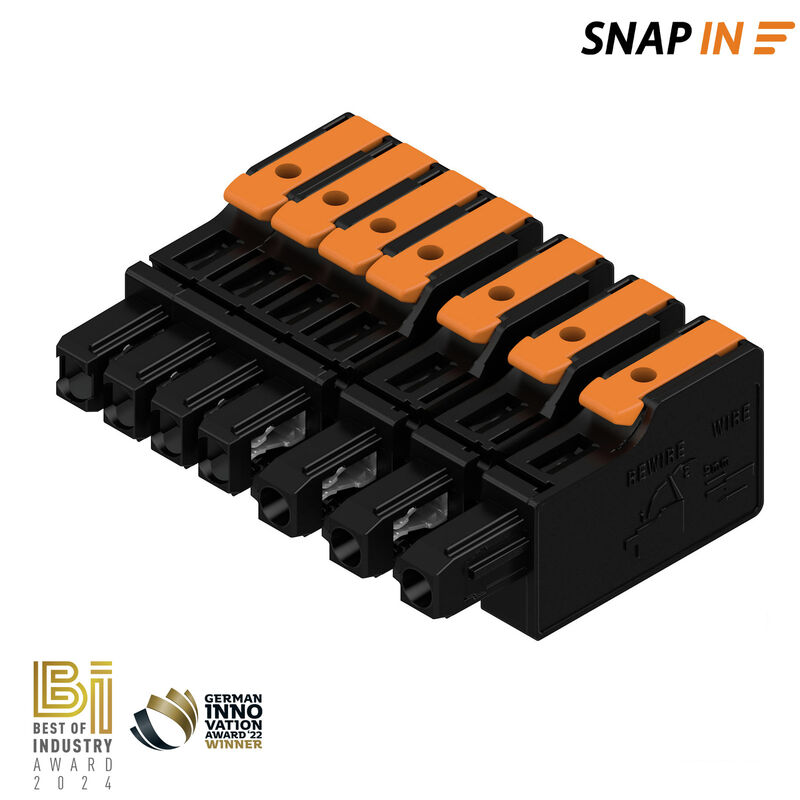

Fastest connection technology SNAP IN
MPS 7S/03-5/04 S TN B B
Product benefits
Acoustic and visual feedback
MPS 7S/03-5/04 S TN B B
Product benefits

MPS 7S/03-5/04 S TN B B

Connecteur pour circuit imprimé, Connecteur femelle, Pas en mm (P): 7.50 mm, Nombre de pôles: 7, Boîte

Tuotteen tunnus 8000078351
Lataa tietosivu Tekninen tuki Tuotelataukset
Vastineet 1 Samankaltaiset tuotteet 9
Homologaciones Informations générales de commande Dimensiones y pesos Temperatures Environmental Product Compliance Parámetros del sistema Údaje o materiálu Vodiče vhodné k připojení Jmenovité údaje podle IEC Rated data acc. to UL 1059 Technical data - hybrid (power) Technical data - hybrid (signal) Important note Klasyfikacje

Homologaciones

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cURus)
E60693

Informations générales de commande

Versione
Connecteur pour circuit imprimé, Connecteur femelle, Pas en mm (P): 7.50 mm, Nombre de pôles: 7, Boîte
N. d’ordine
8000078351
Tipo
MPS 7S/03-5/04 S TN B B
GTIN (EAN)
4064675621942
Qty.
42 items
Product data
IEC: 1000 V / 34.6 A / 0.5 - 4 mm²
UL: / 18.5 A / AWG 20 - AWG 12
Packaging
Box

Dimensiones y pesos

Profondità
34,95 mm
Depth (inches)
1,376 inch
Posizione verticale
15,5 mm
Height (inches)
0,61 inch
Nettovikt
20,249 g

Temperatures

Temperatura ambiente
-50 °C…125 °C

Environmental Product Compliance

Stato conformità RoHS
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%

Parámetros del sistema

Product family
OMNIMATE 4.0
Type of connection
Field connection
Wire connection method
SNAP IN with lever
Pitch in mm (P)
7,5 mm
Conductor outlet direction
180°
Number of poles
7
L1 in mm
15 mm
L1 in inches
0,591 "
L2 in mm
15 mm
L2 in inch
0,591 "
Number of rows
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Stripping length
9 mm
Stripping length tolerance
  • min.:
    8 mm
  • max.:
    10 mm
Ciclos de enchufado
≥ 25
Force d'enfichage/pôle, max.
9 N
Húzóerő / pólus, max.
8 N

Údaje o materiálu

Insulating material
PBT GF
Colour
검정
Colour of operational elements
orange
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
pocínované
Storage temperature, min.
−25 °C
Storage temperature, max.
55 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
125 °C

Vodiče vhodné k připojení

Clamping range, min.
0,34 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,34 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,34 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Outer diameter of insulation, max.
4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025950000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)

Jmenovité údaje podle IEC

testováno podle normy
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
34,6 A
Rated current, max. number of poles (Tu=20°C)
29,1 A
Rated current, min. number of poles (Tu=40°C)
30,7 A
Rated current, max. number of poles (Tu=40°C)
25,9 A
Rated voltage for surge voltage class / pollution degree II/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/2
1 000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Clearance, min.
9,9 mm
Creepage distance, min.
11,7 mm

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group F / UL 1059)
1 000 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group C / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Rated current (Use group F / UL 1059)
18,5 A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Technical data - hybrid (power)

Numero di poli (energia)
3
quantità di file (energia)
1
피치mm(전원)
7,5 mm
피치 인치(전원)
0,295 "
Contact material (Power)
CuSn
Contact surface (Power)
tinned
Мин. диапазон сечений зажимаемых проводников (цепи питания)
0,5 mm²
Clamping range, max. (Power)
4 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Power)
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max. (Power)
2,5 mm²
Ledardiameter AWG, min. (effekt)
AWG 20
Wire cross-section, AWG, max. (Power)
AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Power)
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max. (Power)
0,5 mm²
Flexible, min. H05(07) V-K (Power)
0,5 mm²
Flexible, max. H05(07) V-K (Power)
4 mm²
Solid, min. H05(07) V-U (Power)
0,5 mm²
Solid, max. H05(07) V-U (Power)
2,5 mm²
Outside diameter of the insulation, max. (Power)
4 mm
Stripping length (Power)
9 mm
Rated current (Use group B / UL 1059) (Power)
18,5 A
Rated current (Use group C / UL 1059) (Power)
18,5 A
Rated current (Use group D / UL 1059) (Power)
10 A
Rated current, min. number of poles (Tu=20°C) (Power)
34,6 A
Rated current, max. number of poles (Tu=20°C) (Power)
29,1 A
Rated current, min. number of poles (Tu=40°C) (Power)
30,7 A
Rated current, max. number of poles (Tu=40°C) (Power)
25,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Power)
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Power)
4 kV
Rated voltage (Use group B / UL 1059) (Power)
600 V
Rated voltage (Use group C / UL 1059) (Power)
600 V
Rated voltage (Use group D / UL 1059) (Power)
600 V
Rated voltage for surge voltage class / pollution degree II/2 (Power)
1 000 V
Rated voltage for surge voltage class / pollution degree III/2 (Power)
1 000 V
Rated voltage for surge voltage class / pollution degree III/3 (Power)
630 V
Clearance distance, min. (Power)
9,96 mm

Technical data - hybrid (signal)

Number of poles (Signal)
4
Pitch in mm (Signal)
5 mm
Pitch in inches (Signal)
0,197 "
Contact material (Signal)
CuSn
Contact surface (Signal)
tinned
Clamping range, min. (Signal)
0,5 mm²
Clamping range, max. (Signal)
4 mm²
Wire cross-section, AWG, min. (Signal)
AWG 20
Wire cross-section, AWG, max. (Signal)
AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Signal)
0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max. (Signal)
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Signal)
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max. (Signal)
2,5 mm²
Pružné, min. H05(07) V-K (signál)
0,5 mm²
Flexible, max. H05(07) V-K (Signal)
4 mm²
Solid, min. H05(07) V-U (Signal)
0,5 mm²
Solid, max. H05(07) V-U (Signal)
2,5 mm²
Outside diameter of the insulation, max. (Signal)
4 mm
Stripping length (Signal)
9 mm
Rated current (Use group B / UL 1059) (Signal)
18,5 A
Rated current (Use group C / UL 1059) (Signal)
18,5 A
Rated current (Use group D / UL 1059) (Signal)
10 A
Corriente nominal, número de polos mín. (Tu = 20°C) (Señal)
26,8 A
Courant nominal, nombre de pôles max. (Tu = 20 °C) (signal)
19,7 A
Rated current, min. number of poles (Tu=40°C) (Signal)
23,1 A
Rated current, max. number of poles (Tu=40°C) (Signal)
16,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Signal)
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Signal)
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/3 (Signal)
4 kV
Rated voltage (Use group B / UL 1059) (Signal)
400 V
Rated voltage (Use group C / UL 1059) (Signal)
150 V
Rated voltage (Use group D / UL 1059) (Signal)
300 V
Rated voltage for surge voltage class / pollution degree II/2 (Signal)
400 V
Rated voltage for surge voltage class / pollution degree III/2 (Signal)
320 V
Rated voltage for surge voltage class / pollution degree III/3 (Signal)
250 V
Clearance distance, min. (Signal)
7,5 mm
Creepage distance, min. (Signal)
7,5 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Prąd znamionowy przy nominalnym przekroju i min. liczbie biegunów.
  • Symbol P na rysunkach oznacza raster
  • Dane pomiarowe odnoszą się do danego elementu Odcinki powietrzne i pełzające do innych elementów należy kształtować odpowiednio do obowiazujących w danym przypadku norm użytkowych.
  • Końcówka tulejkowa bez kołnierza z tworzywa sztucznego według DIN 46228/1
  • Zgodnie z normą IEC 61984, złącza OMNIMATE są złączami bez zdolności wyłączania (COC). Podczas stosowania zgodnie z przeznaczeniem złącza nie mogą być włączane ani wyłączane pod napięciem ani w obciążeniem
  • Długoterminowe składowanie produktu przy średniej temperaturze 50°C i maksymalnej wilgotności 70%, 36 miesięcy
    •

    Klasyfikacje

    ETIM 8.0
    EC002638
    ETIM 9.0
    EC002638
    ETIM 10.0
    EC002638
    ECLASS 14.0
    27-46-03-02
    ECLASS 15.0
    27-46-03-02
