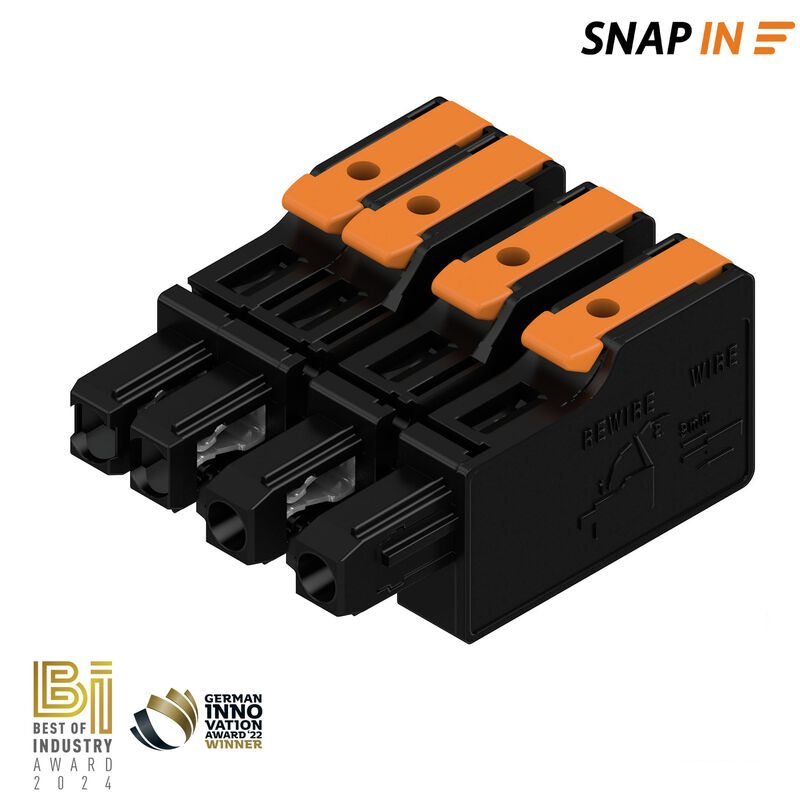

Fastest connection technology SNAP IN
MPS 7S/02-5/02 S TN B B
Product benefits
Acoustic and visual feedback
MPS 7S/02-5/02 S TN B B
Product benefits

MPS 7S/02-5/02 S TN B B

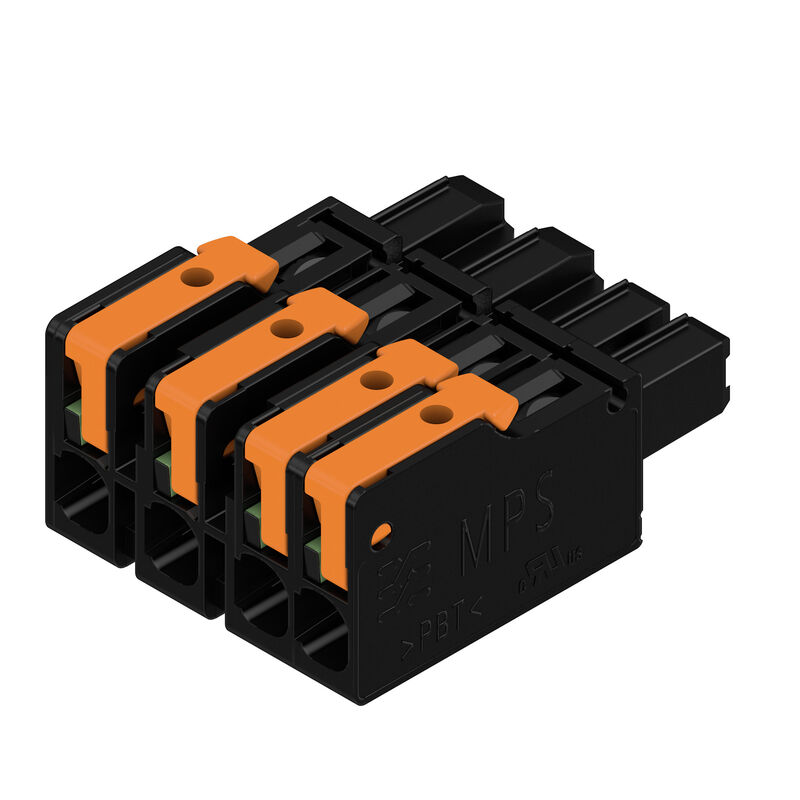

Złącze wtykowe do druku, wtyk żeński, Raster w mm (P): 7.50 mm, Liczba biegunów: 4, skrzynia

Ürün No. 8000078344
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Karşı parçalar 1 İlgili ürünler 9
Approvals Ogólne dane zamówieniowe Dimensions and weights Temperaturer Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Technical data - hybrid (power) Technical data - hybrid (signal) Viktig hänvisningstext Classifications

Approvals

ROHS
Conform

Ogólne dane zamówieniowe

Version
Złącze wtykowe do druku, wtyk żeński, Raster w mm (P): 7.50 mm, Liczba biegunów: 4, skrzynia
Order No.
8000078344
Type
MPS 7S/02-5/02 S TN B B
GTIN (EAN)
4064675622949
Qty.
72 adet
Product data
IEC: 1000 V / 34.6 A / 0.5 - 4 mm²
UL: / 18.5 A / AWG 20 - AWG 12
Packaging
Box

Dimensions and weights

Depth
34,95 mm
Depth (inches)
1,376 inch
Height
15,5 mm
Height (inches)
0,61 inch
Net weight
12,021 g

Temperaturer

Ambient temperature
-50 °C…125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE 4.0
Type of connection
Field connection
Wire connection method
SNAP IN with lever
Paso en mm (P)
7,5 mm
Conductor outlet direction
180°
Pólusszám
4
L1 in mm
7,5 mm
L1 in inches
0,295 "
L2 in mm
5 mm
L2(인치)
0,197 "
Number of rows
1
liczba rzędów z biegunami
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Stripping length
9 mm
Stripping length tolerance
  • min.:
    8 mm
  • max.:
    10 mm
Plugging cycles
≥ 25
Plugging force/pole, max.
9 N
Pulling force/pole, max.
8 N

Material data

Insulating material
PBT GF
Colour
svart
Colour of operational elements
orange
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
-25 °C
Storage temperature, max.
55 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
125 °C

Conductors suitable for connection

Clamping range, min.
0,34 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,34 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,34 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Outer diameter of insulation, max.
4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025950000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
34,6 A
Rated current, max. number of poles (Tu=20°C)
29,1 A
Rated current, min. number of poles (Tu=40°C)
30,7 A
Rated current, max. number of poles (Tu=40°C)
25,9 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
1.000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Clearance, min.
9,9 mm
Creepage distance, min.
11,7 mm

Rated data acc. to UL 1059

Rated voltage (Use group F / UL 1059)
1.000 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group C / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Rated current (Use group F / UL 1059)
18,5 A
Ledardiameter AWG, min.
AWG 20
导线最大压接面积，AWG
AWG 12

Technical data - hybrid (power)

Number of poles (Power)
2
Antal rader (effekt)
1
Pitch in mm (Power)
7,5 mm
Pitch in inches (Power)
0,295 "
Contact material (Power)
CuSn
Contact surface (Power)
tinned
Clamping range, min. (Power)
0,5 mm²
Clamping range, max. (Power)
4 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Power)
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max. (Power)
2,5 mm²
Wire cross-section, AWG, min. (Power)
AWG 20
Wire cross-section, AWG, max. (Power)
AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Power)
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max. (Power)
0,5 mm²
Flexible, min. H05(07) V-K (Power)
0,5 mm²
Flexible, max. H05(07) V-K (Power)
4 mm²
Solid, min. H05(07) V-U (Power)
0,5 mm²
Solid, max. H05(07) V-U (Power)
2,5 mm²
Outside diameter of the insulation, max. (Power)
4 mm
Stripping length (Power)
9 mm
Rated current (Use group B / UL 1059) (Power)
18,5 A
Rated current (Use group C / UL 1059) (Power)
18,5 A
Rated current (Use group D / UL 1059) (Power)
10 A
Rated current, min. number of poles (Tu=20°C) (Power)
34,6 A
Rated current, max. number of poles (Tu=20°C) (Power)
29,1 A
Rated current, min. number of poles (Tu=40°C) (Power)
30,7 A
Rated current, max. number of poles (Tu=40°C) (Power)
25,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Power)
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Power)
4 kV
Rated voltage (Use group B / UL 1059) (Power)
600 V
Rated voltage (Use group C / UL 1059) (Power)
600 V
Rated voltage (Use group D / UL 1059) (Power)
600 V
Rated voltage for surge voltage class / pollution degree II/2 (Power)
1.000 V
Rated voltage for surge voltage class / pollution degree III/2 (Power)
1.000 V
Rated voltage for surge voltage class / pollution degree III/3 (Power)
630 V
Clearance distance, min. (Power)
9,96 mm

Technical data - hybrid (signal)

Polzahl (Signal)
2
Raster in mm (Signal)
5 mm
Pitch in inches (Signal)
0,197 "
Material de contacto (Señal)
CuSn
Superficie de contacto (Señal)
tinned
Clamping range, min. (Signal)
0,5 mm²
Rögzítési tartomány, max. (Jel)
4 mm²
Sezione di collegamento cavo AWG, min. (segnale)
AWG 20
와이어 단면적, AWG, 최대(신호)
AWG 12
w. plastic collar ferrule, DIN 46228 pt 4, min. (Signal)
0,5 mm²
z plastikową tulejką zaciskową kołnierzową, DIN 46228 pt 4, maks. (sygnał)
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min. (Signal)
0,5 mm²
s vodičem a dutinkou, DIN 46228 pt 1, max. (signál)
2,5 mm²
Многожильный, мин. H05(07) V-K (цепи передачи сигналов)
0,5 mm²
Flexibel, max. H05(07) V-K (signal)
4 mm²
Solid, min. H05(07) V-U (Signal)
0,5 mm²
Solid, max. H05(07) V-U (Signal)
2,5 mm²
Outside diameter of the insulation, max. (Signal)
4 mm
Stripping length (Signal)
9 mm
Rated current (Use group B / UL 1059) (Signal)
18,5 A
Rated current (Use group C / UL 1059) (Signal)
18,5 A
Rated current (Use group D / UL 1059) (Signal)
10 A
Rated current, min. number of poles (Tu=20°C) (Signal)
26,8 A
Rated current, max. number of poles (Tu=20°C) (Signal)
19,7 A
Rated current, min. number of poles (Tu=40°C) (Signal)
23,1 A
Rated current, max. number of poles (Tu=40°C) (Signal)
16,9 A
Rated impulse voltage for surge voltage class/ pollution degree II/2 (Signal)
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2 (Signal)
4 kV
Номинальное импульсное напряжение при категории помехозащищенности / категория загрязнения III/3 (сигнал)
4 kV
Nennspannung (Use group B / UL 1059) (Signal)
400 V
Rated voltage (Use group C / UL 1059) (Signal)
150 V
Rated voltage (Use group D / UL 1059) (Signal)
300 V
Rated voltage for surge voltage class / pollution degree II/2 (Signal)
400 V
Rated voltage for surge voltage class / pollution degree III/2 (Signal)
320 V
Rated voltage for surge voltage class / pollution degree III/3 (Signal)
250 V
Clearance distance, min. (Signal)
7,5 mm
Creepage distance, min. (Signal)
7,5 mm

Viktig hänvisningstext

IPC conformity
Konformitet: Produkterna utvecklas, tillverkas och levereras i enlighet med internationellt erkända standarder och normer, och uppfyller de egenskaper som garanteras i databladet resp. har designegenskaper i enlighet med IPC-A-610 "Klass 2". Övriga anspråk gällande produkterna kan bedömas på begäran.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-03-02
ECLASS 15.0
27-46-03-02
