VPU AC II+III 3 R 275/20 S
VPU AC II+III 3 R 275/20 S

VPU AC II+III 3 R 275/20 S

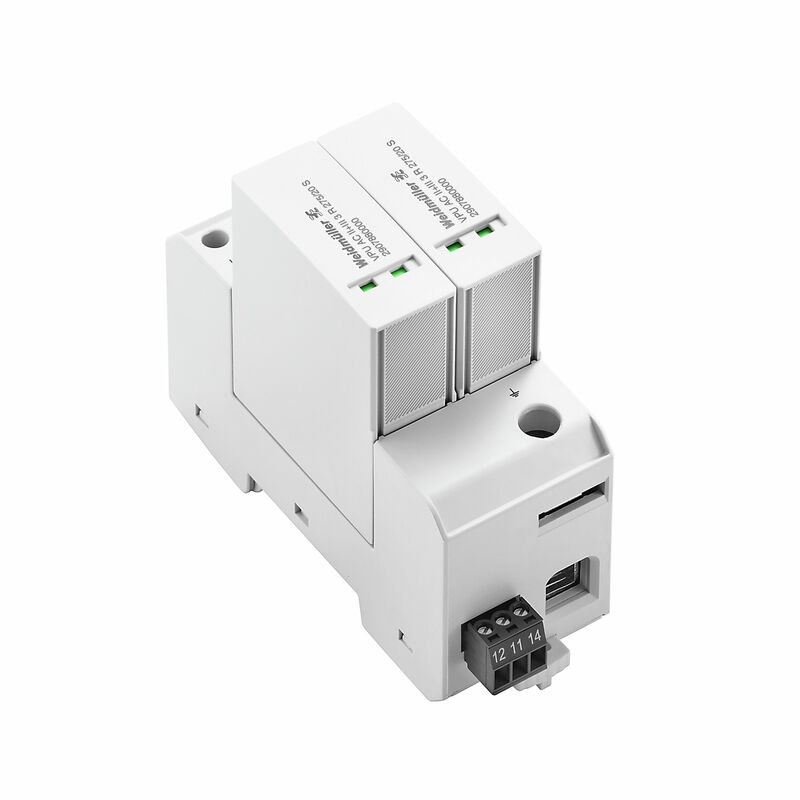

Surge voltage arrester, Low voltage, with remote contact, TN-C

Produkt ID 2907880000
Åbn i konfiguratoren
Download datablad Technická podpora Dokumenty ke stažení
Tilbehør 3 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Guarantee Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Surge voltage arrester, Low voltage, with remote contact, TN-C
Best.-Nr.
2907880000
Art
VPU AC II+III 3 R 275/20 S
GTIN (EAN)
4099986189935
Cantidad
1 Pieza

Dimensions and weights

Depth
70 mm
Depth (inches)
2,756 inch
Höhe
99 mm
Height (inches)
3,898 inch
Breite
36 mm
Width (inches)
1,417 inch
Net weight
249 g

Temperatures

Umgebungstemperatur
-40 °C…85 °C
Temperatura de servicio
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data, remote alert

Connection type
Screw connection
PUSH IN
Cross-section for connected wire, solid core, max.
1,5 mm²
Cross-section for connected wire, solid core, min.
0,2 mm²
Max. torque
0,4 Nm
Stripping length
5 mm

General data

IP20 in installed state
Colour
grey
Design
Installation housing; 2TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 2000 m
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Segment
Power distribution
UL 94 flammability rating
V-0
Version
with remote contact

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Combined pulse UOC
6 kV
Discharge current Imax (8/20µs) wire-PE
20 kA
Discharge current In (8/20µs) wire-PE
10 kA
Energy coordination (≤10 m)
Type II
Type III
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤100 A gG
Fusible amont intégré
No
Low voltage network
TN-C
Max. continuous voltage, Uc (AC)
275 V
Number of poles
3
Protection level Up at IN (L/N-PE)
≤ 1.25 kV
Rated voltage (AC)
230 V
Requirements category acc. to IEC 61643-11
Type II
Type III
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
25 kA
Signalling contact
250 V / 0,5 A
Standards
IEC 61643-11
EN 61643-11
Temporary surge voltage (over-voltage) - TOV
335 V
Voltage type
AC
Vybíjecí proud (typ III)
3 kA
Protection level Up at IN (L-PE) (type III)
≤1 kV

Connection data

Conductor connection cross-section PE, solid, max.
35 mm²
Conductor connection cross-section PE, stranded, max.
35 mm²
Stripping length
13 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Длина снятия изоляции Измерительное соединение
13 mm
Åtdragningsmoment, min.
1,2 Nm
Utahovací moment, max.
2 Nm
Clamping range, rated connection
10 mm²
Klemmbereich, min.
2,5 mm²
Clamping range, max.
35 mm²
Wire cross-section, solid, min.
2,5 mm²
Wire cross-section, solid, max.
10 mm²
Wire connection cross section, finely stranded, min.
2,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Connection cross-section, stranded, min.
2,5 mm²
결선 단면적, 꼬임, 최대
10 mm²

Electrical data

Voltage type
AC

General data

Number of poles
3
IP20 in installed state
Color
gris

Guarantee

Time interval
5 years

Important note

Termékinformáció
For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
