Egenskaber
| Version | Field attachable connector, M12, Female socket, straight |
| Order No. | 2681660000 |
| Type | SAIBP-M-5B-4/8-M12 |
| GTIN (EAN) | 4050118759839 |
| Qty. | 1 Styk |
| Net weight | 43 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 4 mm |
| Coding | B-coded |
| Conductor cross-section, max. | 0,75 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Contact surface | Ni/Au |
| Housing main material | PA 66 |
| Insulation strength | ≥ 100 MΩ |

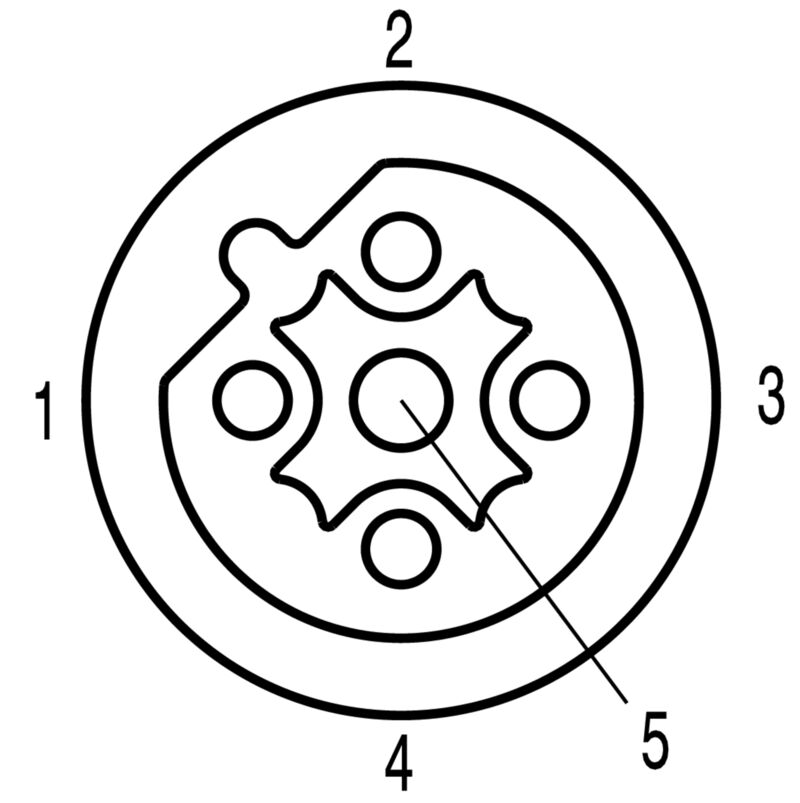

| Number of poles | 5 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Shield connection | Yes |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Type of connection | PUSH IN |
| Number of poles | 5 |
| Connection 1 | M12 |
| Connection 2 | PUSH IN |
| Housing main material | PA 66 |
| Connection thread | M12 |
| Contact surface | Ni/Au |
| Protection degree | IP67 |
| Fire safety for railway vehicles | DIN EN 45545-2 |
| Shock and vibration proof according to | EN 50155:2001 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_157212) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2681660000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
