SAIL-M8GM8WR-3-10V

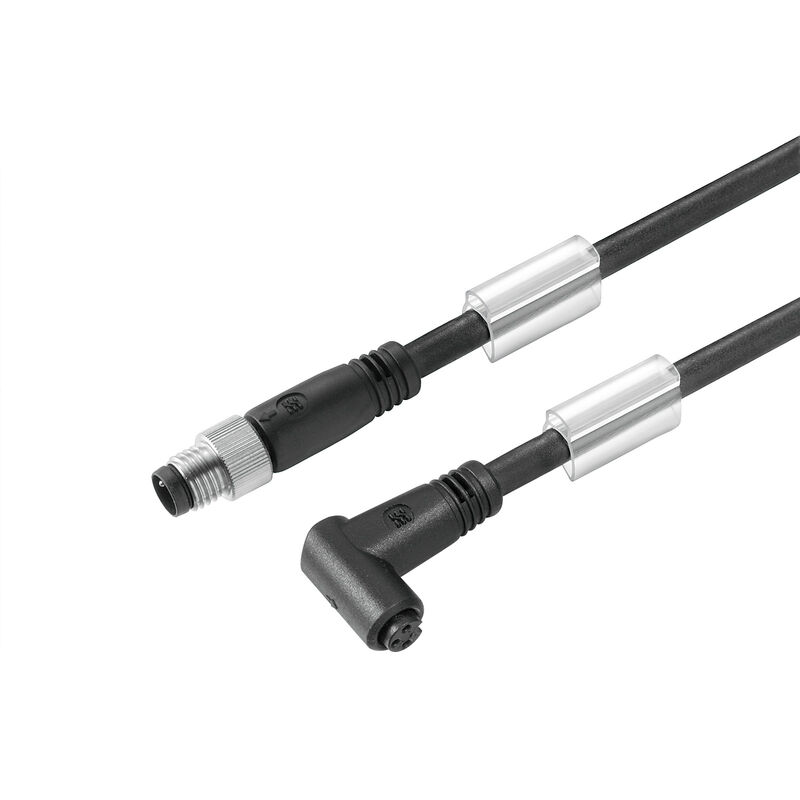

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Item No. 1948661000

Properties

General ordering data

Version	Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.	1948661000
Type	SAIL-M8GM8WR-3-10V
GTIN (EAN)	4032248625789
Qty.	1 items

Dimensions and weights

Net weight

298 g

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Cable

Product type	Sensor/actuator line
Sheathing colour	black

Technical specifications for cable

Cable length	10 m
Colour coding	brown blue black
Configurable cable length	No
Core cross-section	0.25 mm²
Halogen	Yes
Insulation	PVC
Irradiation crosslinked	No
Number of poles	3
Outer cladding in accordance with UL AWM style	2464 (80 °C / 300 V)
Outside diameter	4.5 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PVC
Sheathing colour	black
Shielded	No
Suitable for cable carriers	No
Temperature range, moving	-5...80 °C
Temperature range, stationary	-30...80 °C
Torsion resistance	0 °/m
Welding spark resistance	No

General technical data

Coding	A-coded
Connection thread	M8 / M8
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP65 when screwed in
Rated current	4 A
Rated voltage	60 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Brass, nickel-plated
Tightening torque	M8: 0.5 - 0.6 Nm
Version	pin, straight - socket, 90°

Electrical properties

Insulation strength	10⁸ Ω
Rated voltage	60 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-104

Standards

Connector standard

IEC 61076-2-104

Plug, left

Plug left

M8, IP69, male contact, straight, Plastic, unshielded

Plug, right

Contact material, pin	CuZn35PB2
Contact material, socket	CuZn35PB2
Contact surface	Gold-plated
Housing main material	PUR
Plug right	M8, IP69, female contact, angled 90°, Plastic, unshielded
Plugging cycles	≥ 100

Downloads

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1948661000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1948661000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC001855
ETIM 7.0	EC001855
ETIM 8.0	EC001855
ETIM 9.0	EC001855
ECLASS 9.0	27-06-03-11
ECLASS 9.1	27-06-03-11
ECLASS 10.0	27-06-03-11
ECLASS 11.0	27-06-03-11
ECLASS 12.0	27-06-03-11
ECLASS 13.0	27-06-03-11

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E307231
