HDC 24B HP250 MPL3 TYP1
HDC 24B HP250 MPL3 TYP1
Drawing

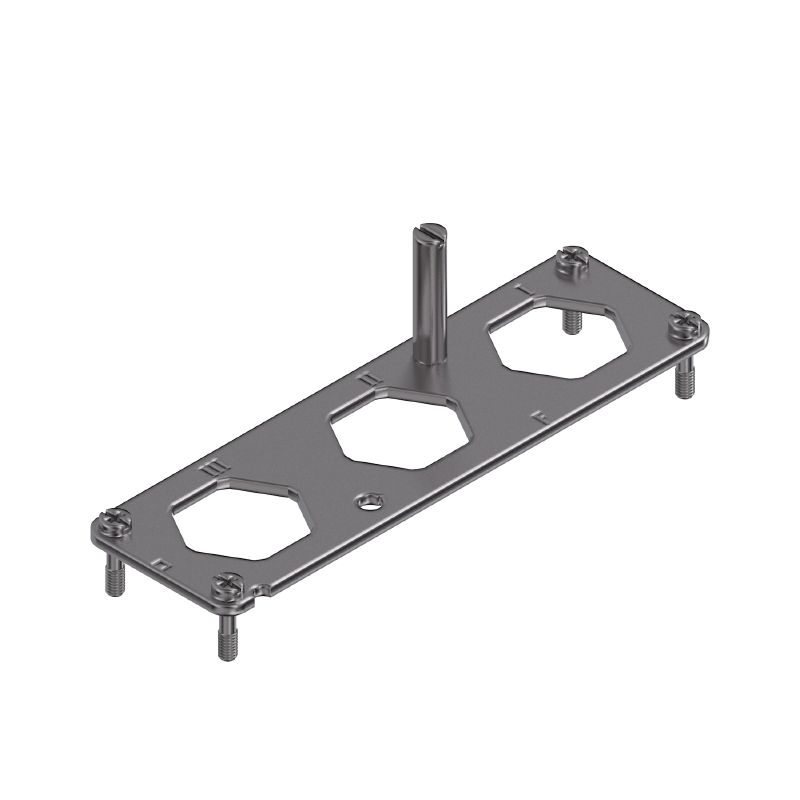

HDC 24B HP250 MPL3 TYP1

HDC insert, Number of poles: 3, Installation size: 8

Ürün No. 1079640000
Veri sayfasını indir Tekninen tuki Tuotelataukset
Prodotti correlati 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance General data General data Important note Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
HDC insert, Number of poles: 3, Installation size: 8
Order No.
1079640000
유형
HDC 24B HP250 MPL3 TYP1
GTIN(EAN)
4032248841752
Qty.
1 items

Dimensions and weights

Posizione verticale
46 mm
Height (inches)
1,811 inch
Width
42 mm
Width (inches)
1,654 inch
길이
140 mm
Length (inches)
5,512 inch
Mounting dimension - height
130 mm
Mounting dimension - width
32 mm
Net weight
95,91 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Stainless steel, rust-proof
BG
8
Colour
Silver grey
Installation size
8
Number of poles
3
Series
HighPower
UL 94 flammability rating
None

General data

Barevný
Silver grey
Základní materiál
Stainless steel, rust-proof
Řada
HighPower

Important note

Termékinformáció
Depending on the intended operation, internally generated voltages can superimpose the working voltage and contain corresponding peaks. It is imperative to ensure that these peak voltages do not exceed the rated voltage. For applications outside of this specification, please contact us.

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-06
ECLASS 15.0
27-44-02-06
