SAIL-M12BG-4-25U
SAIL-M12BG-4-25U
Dimensioned drawing
Straight socket
SAIL-M12BG-4-25U
Pole scheme
M12 = A-coded
SAIL-M12BG-4-25U
Wiring diagram
SAIL-M12BG-4-25U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-4-25U

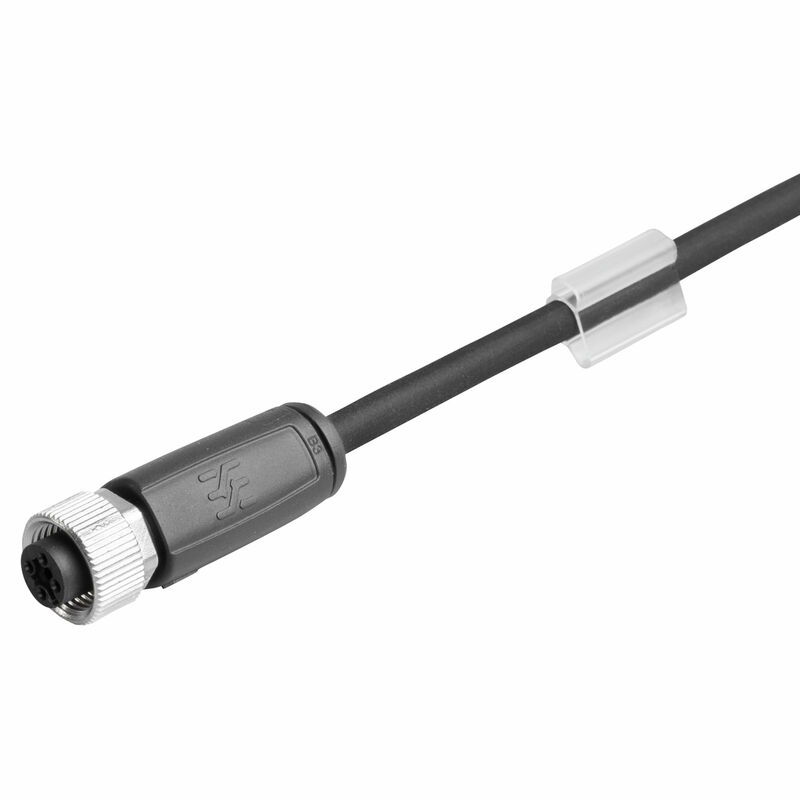

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 25 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 9457732500
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 7 Verwante producten 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 25 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457732500
Type
SAIL-M12BG-4-25U
GTIN (EAN)
4032248472239
Qty.
1 items

Dimensions and weights

Net weight
669,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Campo delle temperature, posa mobile
-25...60 °C
Colour coding
brown
white
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Długość skręcania
1 m
Halogen
No
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Kabellängd
25 m
LABS-free
Yes
Mantelfärg
black
Number of wires
4
Oljebeständighet
Yes
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Schweißperlenfest
No
Sheath material
PUR
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No
Ytterdiameter
4.1 mm ± 0.1 mm
Количество контактов
4

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Сертификат № (cULus)
E307231
커넥터 표준
IEC 61076-2-101

Standards

Connettori a norma
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 4, female contact, straight, plug, unshielded

Plug, right

Plug right
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
