Egenskaber

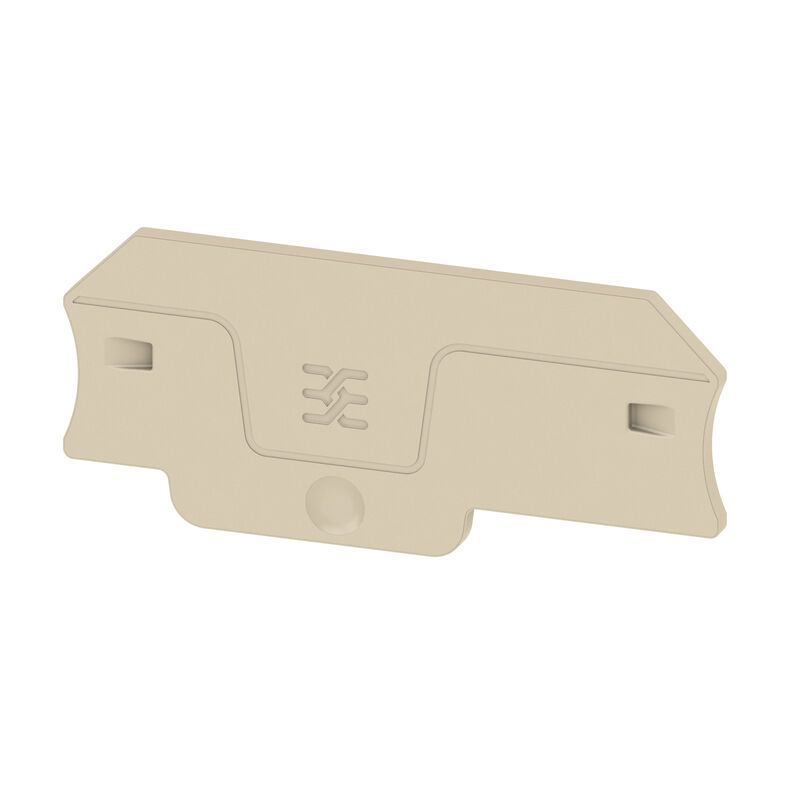

| Version | End plate for terminals, dark beige, Height: 66.3 mm, Width: 2 mm, V-0, Wemid, Snap-on: No |
| Order No. | 2898830000 |
| Type | ALEP DT 2.5 2C |
| GTIN (EAN) | 4064675904434 |
| Qty. | 20 Styk |
| Depth | 29,1 mm |
| Depth (inches) | 1,146 inch |
| Height | 66,3 mm |
| Height (inches) | 2,61 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 1,99 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Snap-on | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305160) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2898660000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1
-
Produkt ID:2898670000Pakningsenhed:50 Styk
Test-disconnect terminal, PUSH IN, blue, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1
-
Produkt ID:2898690000Pakningsenhed:50 Styk
Basic terminal for component plug, PUSH IN, 500, 20, 2
-
Produkt ID:2898680000Pakningsenhed:50 Styk
Basic terminal for component plug, PUSH IN, 500, 20, 2
Terminal BlocksUniversal rangePUSH IN technologyA-SeriesModular test-disconnect terminal blocks1-tier2.5 mm²
