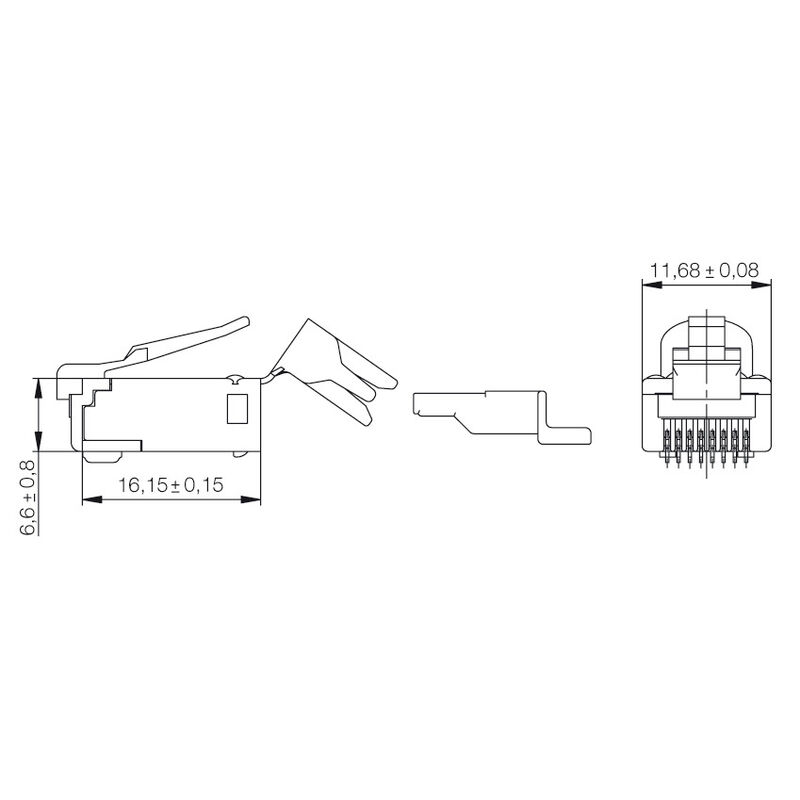

Dimensioned drawing

IE-PM-RJ45-TH

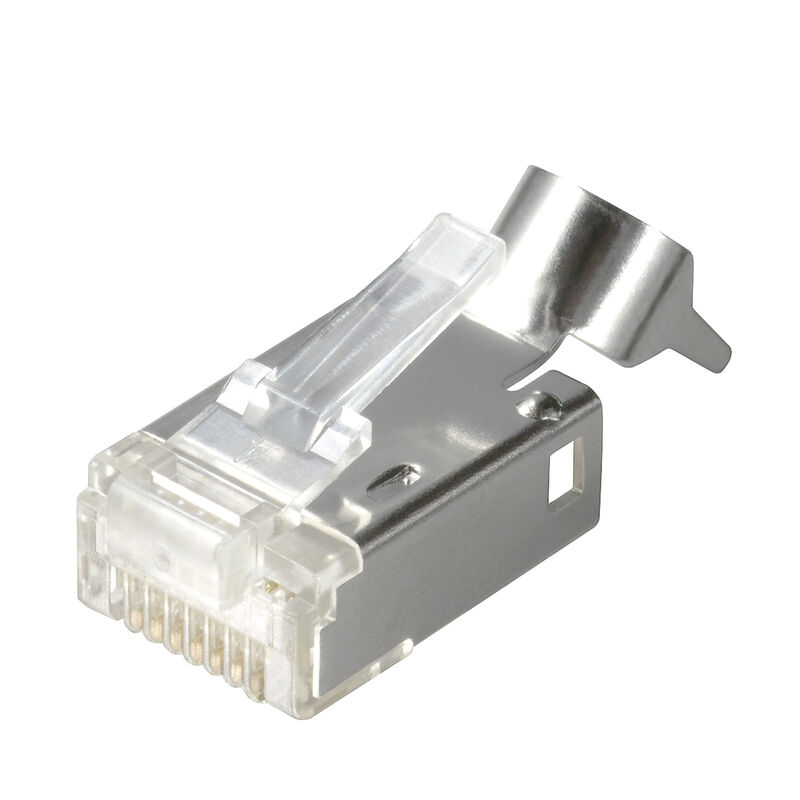

RJ45 crimp plug, Plug without bending protection sleeve, Cat.6A / Class EA (ISO/IEC 11801 2010)

Produkt ID 1963580000
Download datablad Engineering Support Product Downloads
Tilbehør 9 Er tilbehør til 1 Er et modstykke til 53 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319218/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E316369

General ordering data

Version
RJ45 crimp plug, Plug without bending protection sleeve, Cat.6A / Class EA (ISO/IEC 11801 2010)
Order No.
1963580000
Type
IE-PM-RJ45-TH
GTIN (EAN)
4032248645688
Qty.
100 Styk

Dimensions and weights

Net weight
3,46 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Connection 1
RJ45
Connection 2
Crimp
Description of article
Plug without bending protection sleeve
Composition
Connects piercing contacts and shielded connections in one step, retro-fit for kink-prevention sleeves, Multi-port compatible
Colour
Miscellaneous
Insulation cross-section, min.
0,85 mm
Insulation cross-section, max.
1,05 mm
Cable pull-out force, min.
89 N
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact material
Phosphorus bronze
Contact surface
Gold-plated
Connection diameter, solid
0.36...0.51 mm
Conductor connection cross-section, solid (AWG)
AWG 27...AWG 24
Connection diameter, flexible
0.46...0.61 mm
Conductor connection cross-section, flexible (AWG)
AWG 27...AWG 24
MICE classification M
M1
MICE classification I
I1
MICE classification C
C1
MICE classification E
E3
Sheath diameter, min.
5 mm
Sheath diameter, max.
7,3 mm
Bending protection sleeve material
Polycarbonate PC, UL 94 V-0
Shielding material
0.5 mm brass, 2 µm nickel
Shielding
360° all-round enclosure
Protection degree
IP20
Plugging cycles
750
Material insulator
Polycarbonate PC, UL 94 V-0

Electrical properties

Contact resistance
≤ 20 mΩ
Corrente di carico a 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3af
Resistencia a tensiones eléctricas, contacto/apantallado
≥ 1500 V AC/DC
Résistance d'isolation
500 MΩ
Átütési szilárdság, érintkező / érintkező
≥ 1000 V AC/DC

General standards

Certificate No. (cURus)
E316369
Connector standard
IEC 60603-7-51

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
