Egenskaber

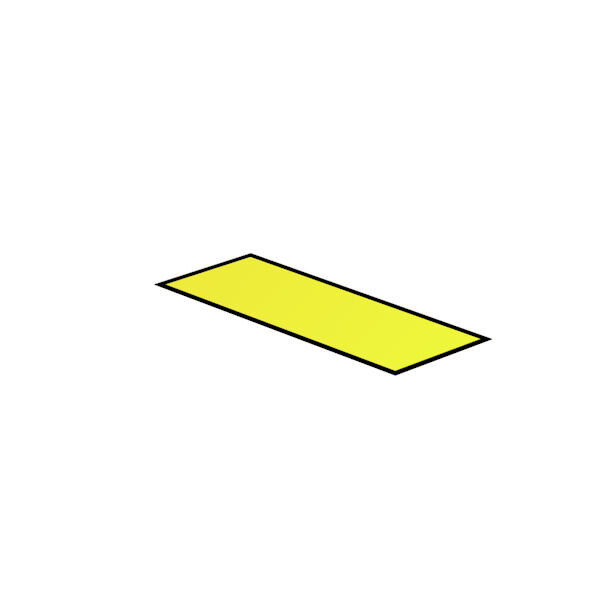

| Version | Device markers, Device markers, 22 x 56 mm, yellow |
| Order No. | 1686210000 |
| Type | PAGETAB 56/22 |
| GTIN (EAN) | 4008190492649 |
| Qty. | 25 Styk |
| Depth | 0,08 mm |
| Depth (inches) | 0,003 inch |
| Height | 22 mm |
| Height (inches) | 0,866 inch |
| Width | 56 mm |
| Width (inches) | 2,205 inch |
| Net weight | 11,24 g |
| Operating temperature range | -29...93 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Permanent acrylic copolymer |
| Colour | yellow |
| Material | Acrylic-coated fibre webbing |
| Material colour according to resistance code | 4 |

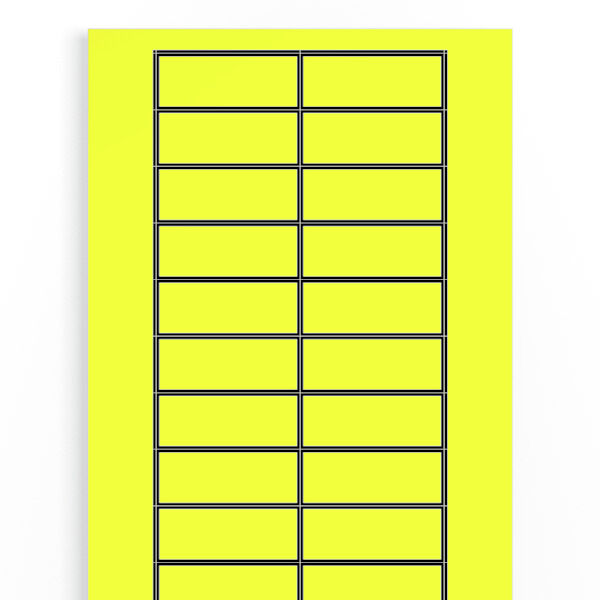

| Number of markers per combination | 1 Label sheet = 24 Device markers |
| Number of markers per packaging unit | 600 |
| Number of markers per packaging unit |
|
| Number per sheet | 24 |
| Operating temperature range | -29...93 °C |
| Operating temperature range, max. | 93 °C |
| Operating temperature range, min. | -29 °C |
| Printing | Neutral |
| Version | Self-adhesive |
| Width | 56 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1686210000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
