SVFL 7.62HP/03/180SFMF3 SN BK BX

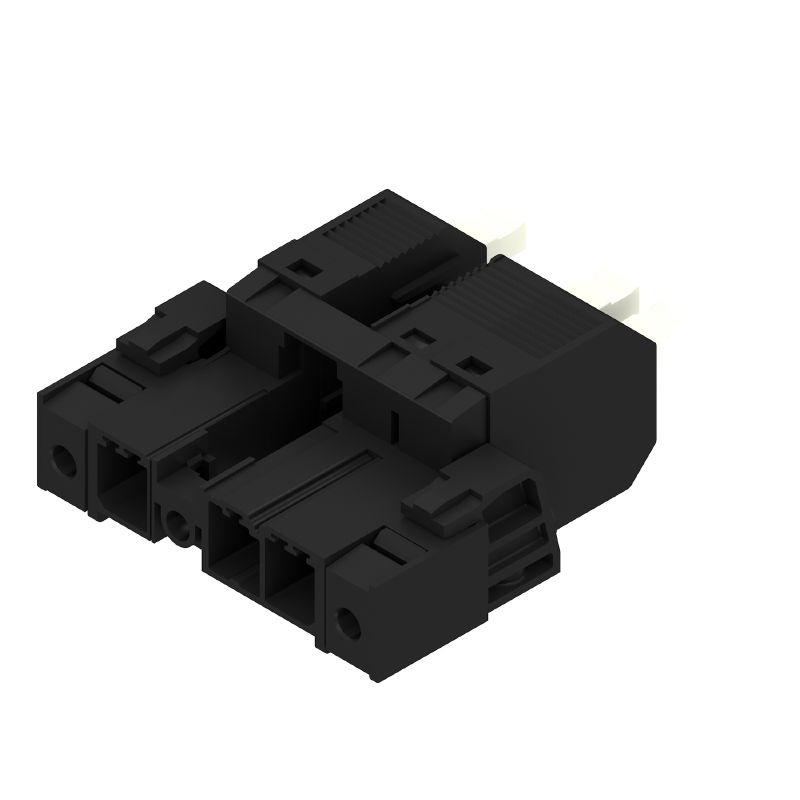

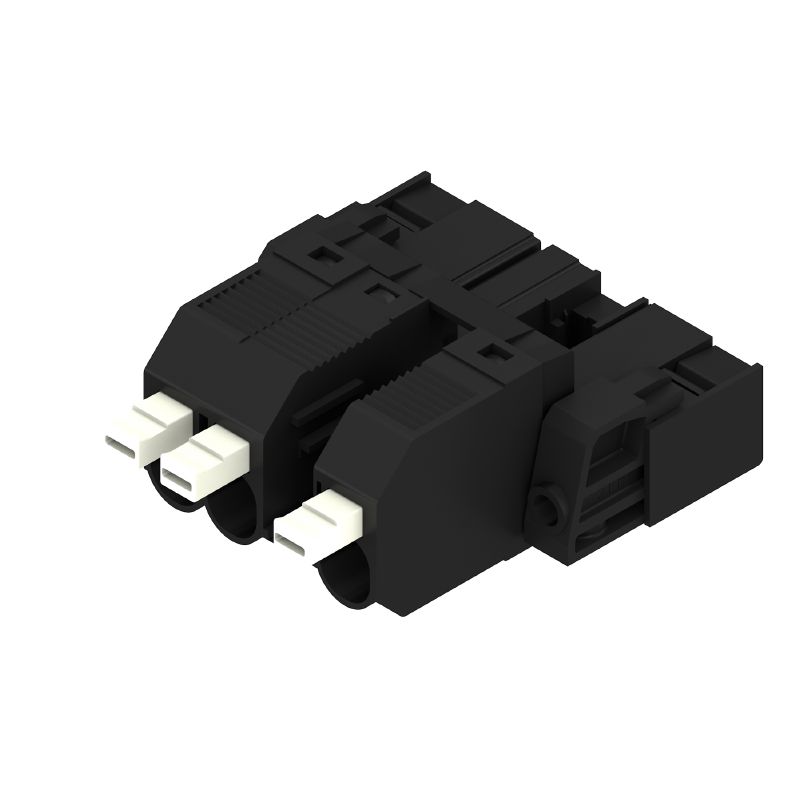

PCB plug-in connector, male plug, 7.62 mm, Number of poles: 3, 180°, PUSH IN with actuator, Tension-clamp connection, Box
Produkt ID
2630540000
Egenskaber
| Version | PCB plug-in connector, male plug, 7.62 mm, Number of poles: 3, 180°, PUSH IN with actuator, Tension-clamp connection, Box |
| Order No. | 2630540000 |
| Type | SVFL 7.62HP/03/180SFMF3 SN BK BX |
| GTIN (EAN) | 4050118634181 |
| Qty. | 48 Styk |
| Product data |
IEC: 1000 V / 0.5 - 6 mm² UL: 600 V / 36 A / AWG 24 - AWG 10 |
| Packaging | Box |
| Depth | 47,7 mm |
| Depth (inches) | 1,878 inch |
| Height | 23,4 mm |
| Height (inches) | 0,921 inch |
| Width | 45,72 mm |
| Width (inches) | 1,8 inch |
| Net weight | 21,21 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection | Field connection |
| Wire connection method |
PUSH IN with actuator
Tension-clamp connection |
| Pitch in mm (P) | 7,62 mm |
| Pitch in inches (P) | 0,3 " |
| Conductor outlet direction | 180° |
| Number of poles | 3 |
| L1 in mm | 22,86 mm |
| L1 in inches | 0,9 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 0470 | IP20 plugged |
| Protection degree |
IP20
IP20 in installed state |
| Tightening torque for screw flange, min. | 0,2 Nm |
| Tightening torque for screw flange, max. | 0,3 Nm |
| Screwdriver blade | 0.6 x 3.5 |
| Plugging cycles | 25 |
| Insulating material | PA GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 125 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 125 °C |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Flexible, max. H05(07) V-K | 6 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 1,5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 6 mm² |
| Clampable conductor |
|
| Reference text |
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Rated current, max. number of poles (Tu=20°C) | 41 A |
| Rated current, min. number of poles (Tu=40°C) | 41 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1.000 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 800 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6.000 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| Clearance, min. | 12,7 mm |
| Creepage distance, min. | 12,7 mm |
| Institute (cURus) | CURUS |
| Certificate No. (cURus) | E60693 |
| Rated voltage (Use group B / UL 1059) | 600 V |
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated voltage (Use group D / UL 1059) | 600 V |
| Rated current (Use group B / UL 1059) | 36 A |
| Rated current (Use group C / UL 1059) | 36 A |
| Rated current (Use group D / UL 1059) | 5 A |
| Wire cross-section, AWG, min. | AWG 24 |
| Wire cross-section, AWG, max. | AWG 10 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 338 mm |
| VPE width | 130 mm |
| VPE height | 54 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_300908) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2630540000) |
| Product Change Notification |
[EN - Change of isolation material](https://mdcop.weidmueller.com/mediadelivery/asset/900_90826)
[DE - Werkstoffänderung Pusher](https://mdcop.weidmueller.com/mediadelivery/asset/900_90827) [20220201 Visual change OMNIMATE® Power PCB terminal blocks and connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_251007) [20220201 Visuelle Änderung OMNIMATE® Power Leiterplattenklemmen und -steckverbinder](https://mdcop.weidmueller.com/mediadelivery/asset/900_251008) |
| User Documentation | [QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78420) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
| ETIM 8.0 | EC002638 |
| ETIM 9.0 | EC002638 |
| ECLASS 9.0 | 27-44-03-09 |
| ECLASS 9.1 | 27-44-03-09 |
| ECLASS 10.0 | 27-44-03-09 |
| ECLASS 11.0 | 27-46-02-02 |
| ECLASS 12.0 | 27-46-02-02 |
| ECLASS 13.0 | 27-46-02-02 |
| ECLASS 14.0 | 27-46-02-02 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
