VG 16 HQ K68 6.5-9.5

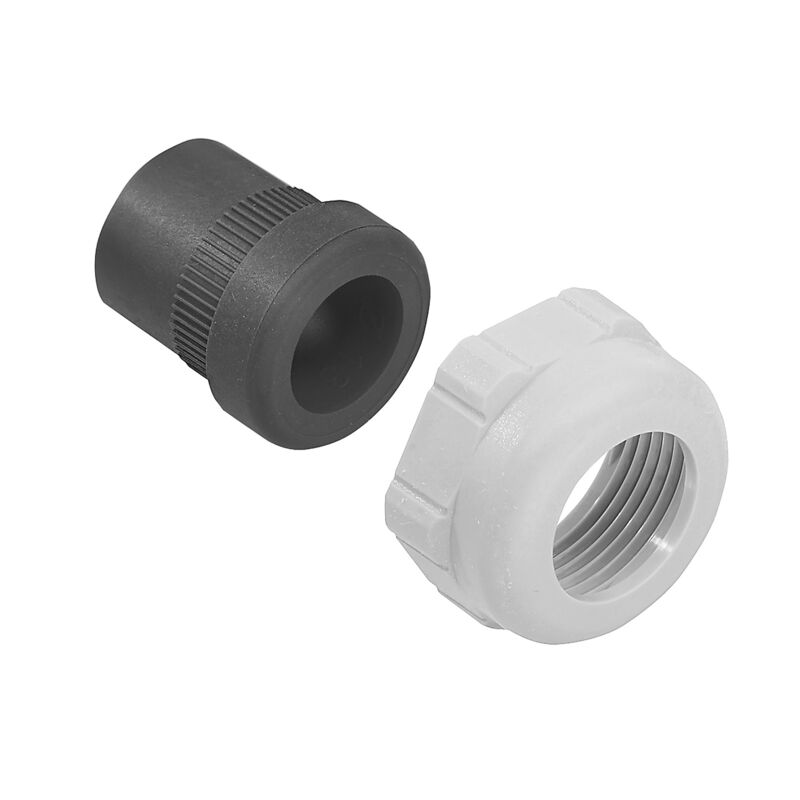

Similar to illustration

VG 16 HQ K68 6.5-9.5

Heavy-duty connectors, Accessories, Cable glands, Polycarbonate

Produkt ID 1273890000
Download datablad Wsparcie inżynieryjne Pobieranie produktów
Tilbehør 4 Er tilbehør til 3 Anvendte produkter 7
Osvědčení General ordering data Dimensiones y pesos Teploty Environmental Product Compliance General information Classifications

Osvědčení

ROHS
Shoda

General ordering data

Version
Heavy-duty connectors, Accessories, Cable glands, Polycarbonate
Order No.
1273890000
Type
VG 16 HQ K68 6.5-9.5
GTIN (EAN)
4050118063233
Množství
1 ks

Dimensiones y pesos

Peso neto
13 g

Teploty

Grenztemperatur
-20 °C ... 100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Ne SVHC nad 0,1 wt%

General information

AF size
27 mm
AF size 1
27 mm
Basic material
Polycarbonate
Cable gland
PG 16
External thread
PG 16
Halogen
halogen-free
Operating temperature range, max.
135 °C
Operating temperature range, min.
-40 °C
Outer cable diameter, max.
9,5 mm
Outer cable diameter, min.
6,5 mm
Pitch of thread
0 mm
Protection degree
IP68

Classifications

ETIM 8.0
EC000441
ETIM 9.0
EC000441
ETIM 10.0
EC000441
ECLASS 14.0
27-14-08-01
ECLASS 15.0
27-14-08-01
